Electrical System
Chapter 3: Theory of Operation
Prima™ Procedural Light Service Manual (man247ra) Page 3 - 3
DRAFT 6/4/99
3
Electrical System

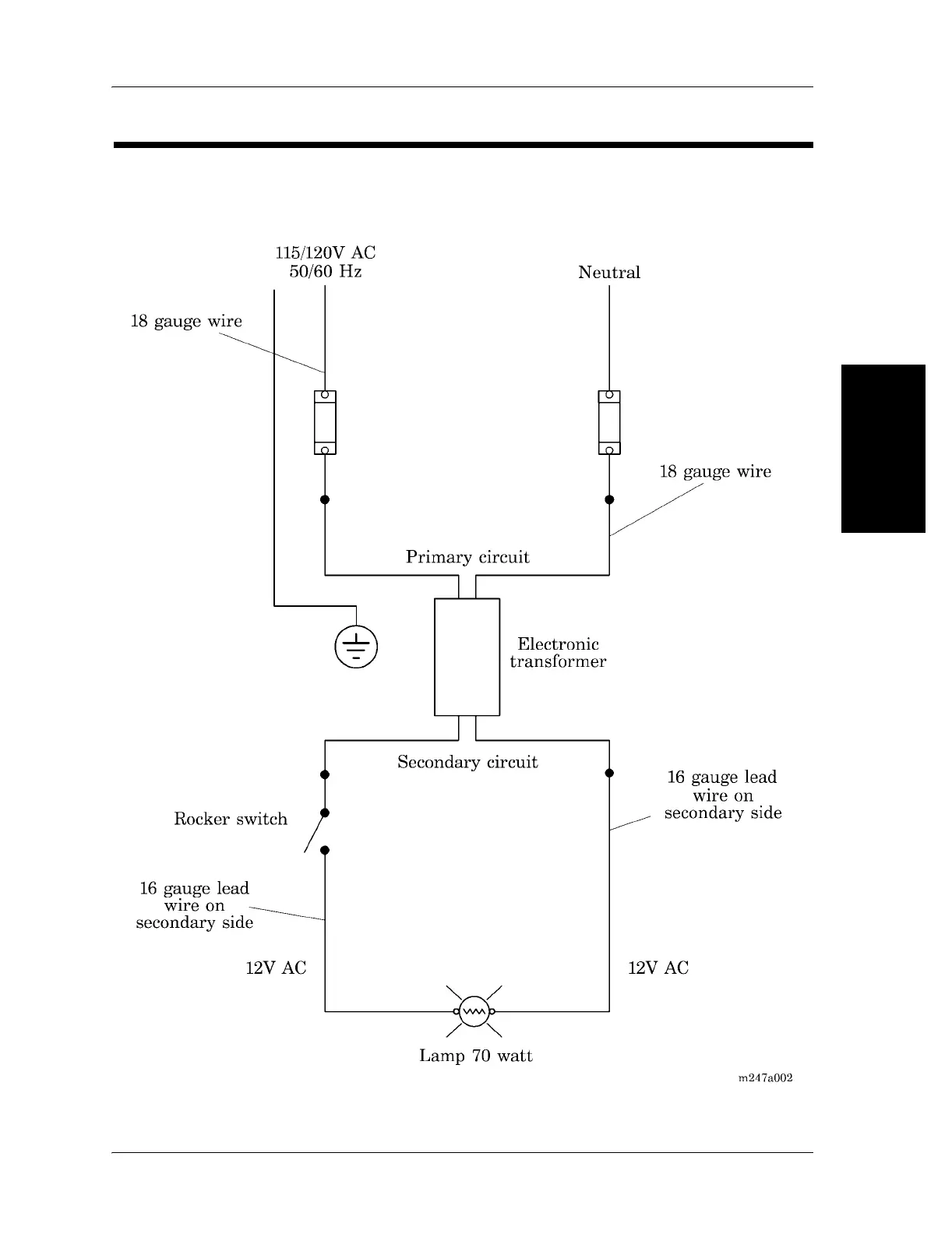

Figure 3-1. Wiring Diagram (120V Model Only)
