Electrical System
Chapter 3: Theory of Operation
Page 3 - 4 Prima™ Procedural Light Service Manual (man247ra)
DRAFT 6/4/99

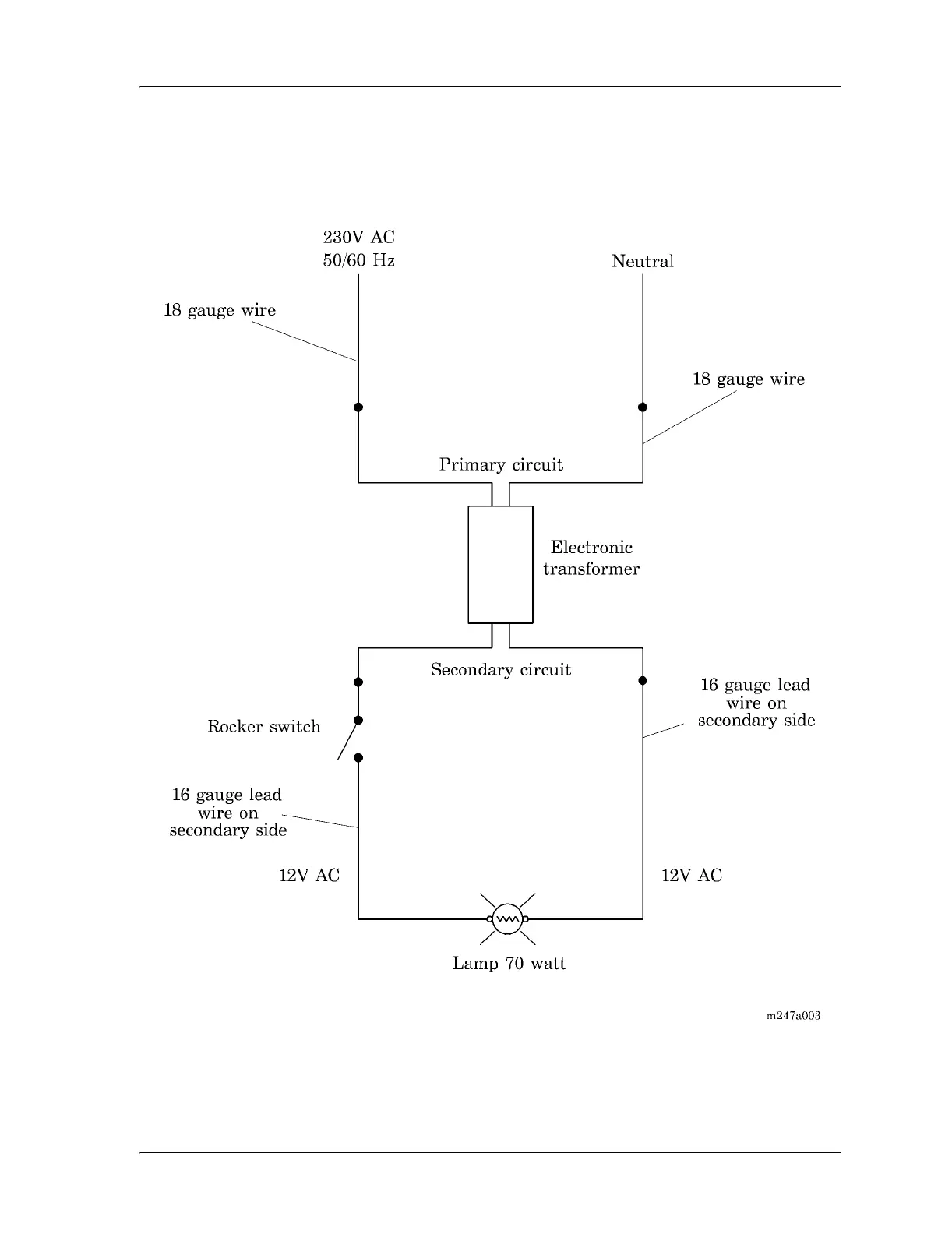

Figure 3-2. Wiring Diagram (230V Model Only)
