HI 800 101 HIMatrix Engineering Manual

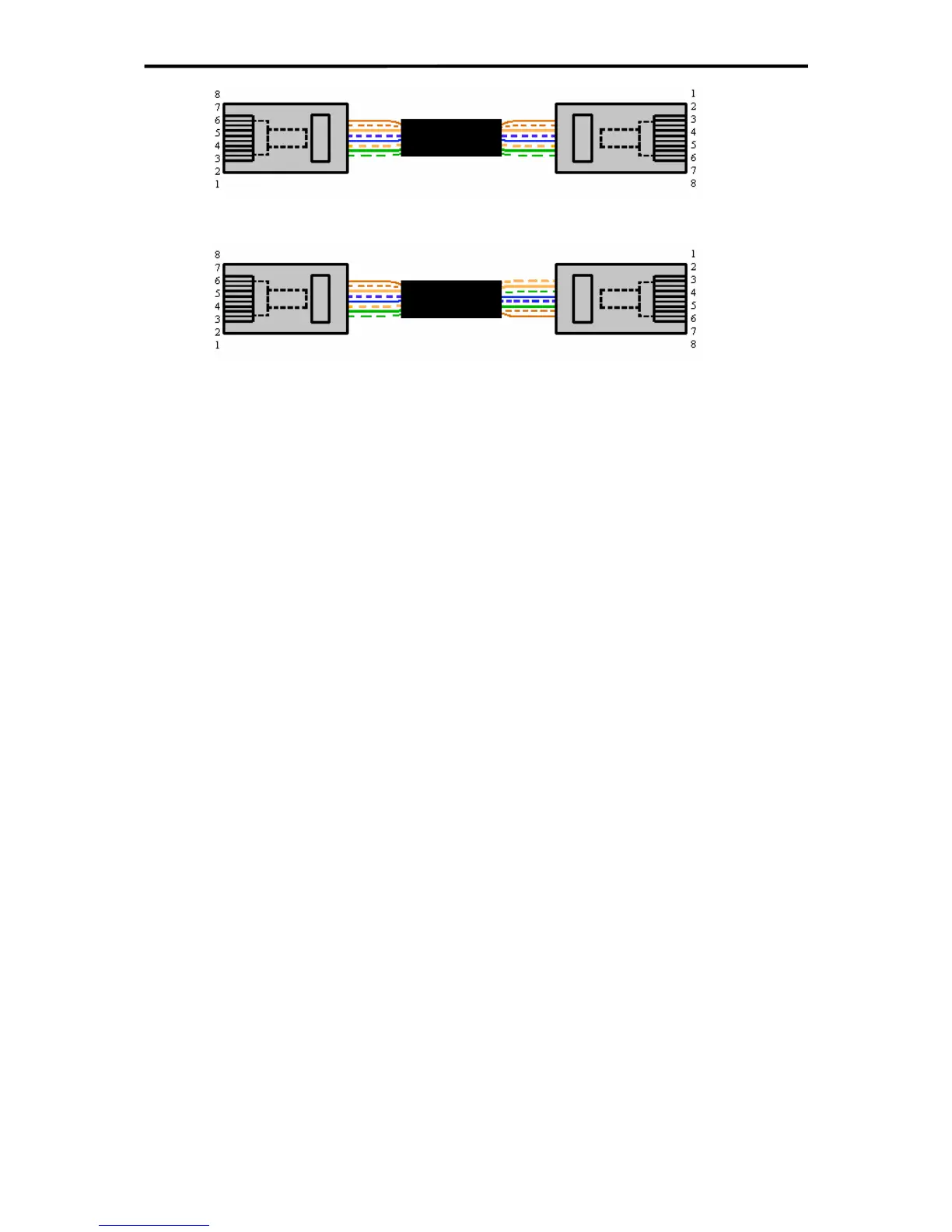

Figure 16: Pin assignment 1:1 patch cable according to EIA/ITA 568B

Figure 17: Pin assignment crossover cable according to EIA/ITA 568B

5.4.1.4 Switches

To span distances of more than 100 m with Ethernet communication for example the

rail switches of the RS2-... series (manufacturer Hirschmann

)

can be used with optical fibre ports.

38 of 61
