HI 800 101 HIMatrix Engineering Manual

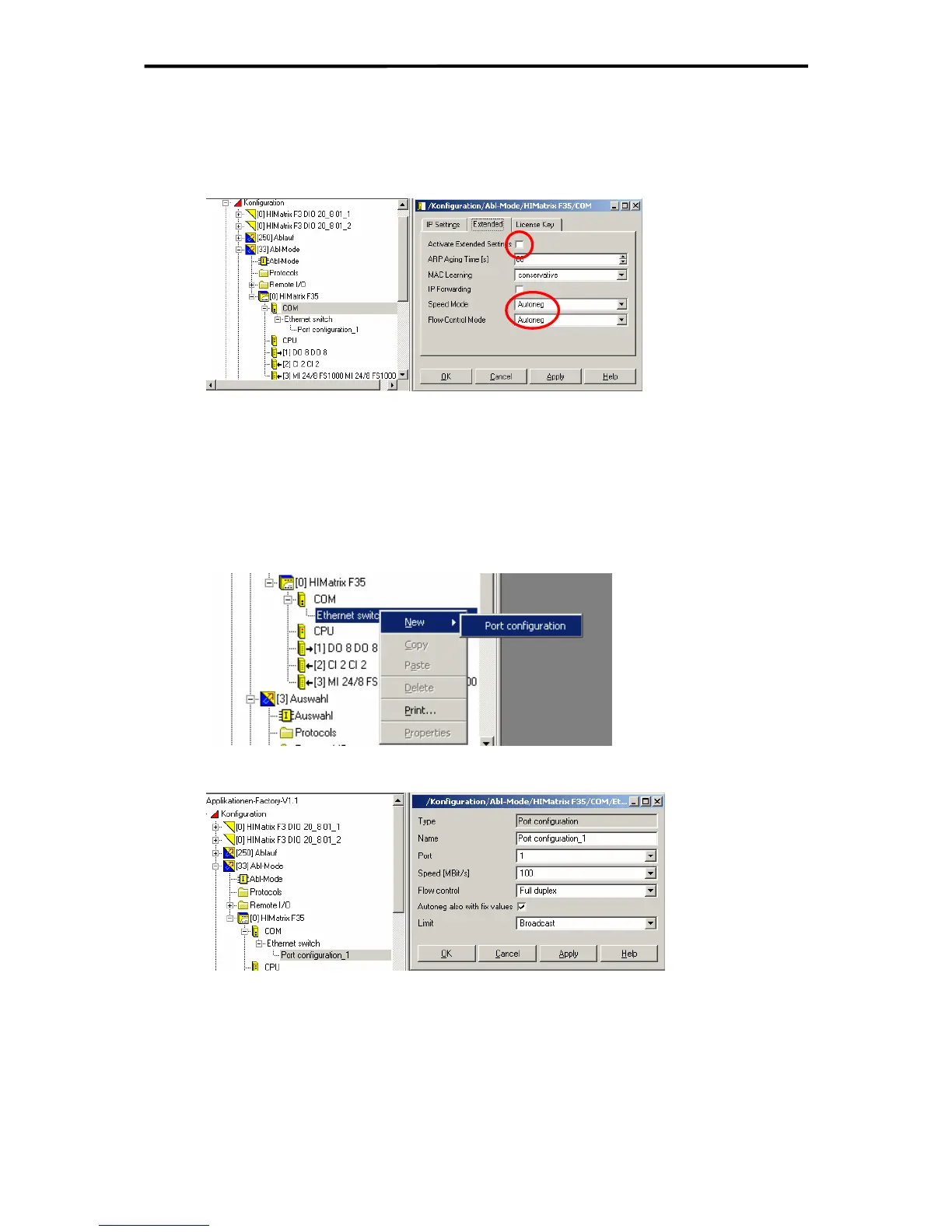

5.2.8 Configuration of the Ethernet Interfaces
For HIMatrix devices in the register "Extended" the parameters "Speed Mode” and “Flow-
Control Mode” must be set to “Autoneg”. The option “Activate Extended Settings” must be
set in order that the parameters are activated (see
Figure 6: Properties of the COM).
Figure 6: Properties of the COM
The parameters ARP, MAC Learning, IP Forwarding, Speed Mode and Flow-Control Mode
are explained in detail in the online help of ELOP II Factory.
The port settings of the integrated switch of a HIMatrix resource can be parameterized indi-
vidually from COM OS Version > 8.32 and ELOP II Hardware Management Version
7.56.10 on. Via the menu option Ethernet switch -> New -> Port configuration a configuration
menu can be established for each switch port.
Figure 7: Setting a port configuration
Figure 8: Parameter of a port configuration
29 of 61
