3.2 Measuring Insulation Resistance
1
2
3
4
5
6
7
8
9
10
11
付録
索引
67

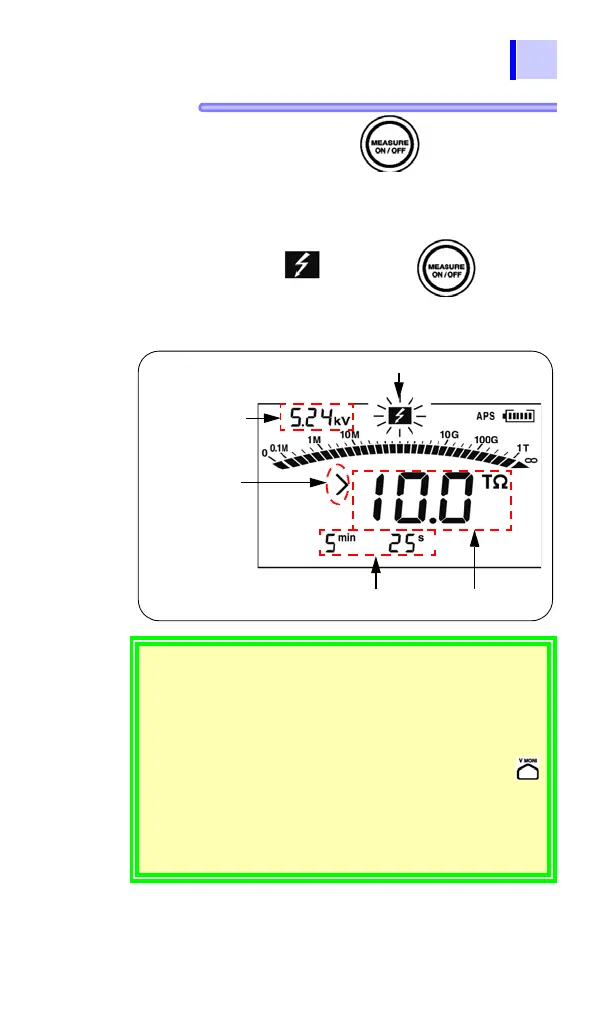

9. Hold down the key for more than
one second.
A voltage is generated and measurement
begins.
The mark and key lamp
starts blinking.
If > blinks, the input value is out of measurement range.
Example:
> 10.0 T
means "larger than 10.0 T
."
• During measurement, [
SET
] is turned off in the voltage indica-
tion field and the indication changes from the set voltage to
the actual output voltage. A voltage approximately 5% higher
than the set level is output.
• To view the set voltage during measurement, press the
key. The set voltage is displayed for approximately 2 seconds.
• During measurement, if the output voltage is lower than the
set level, the voltage indication blinks.
• Under the resistance indication appears time elapsed from the
start of measurement.
Actual output
voltage
Blinking
>blinks if the
input exceeds the
measurement
range.
Elapsed time Insulation resistance
To Next Page
