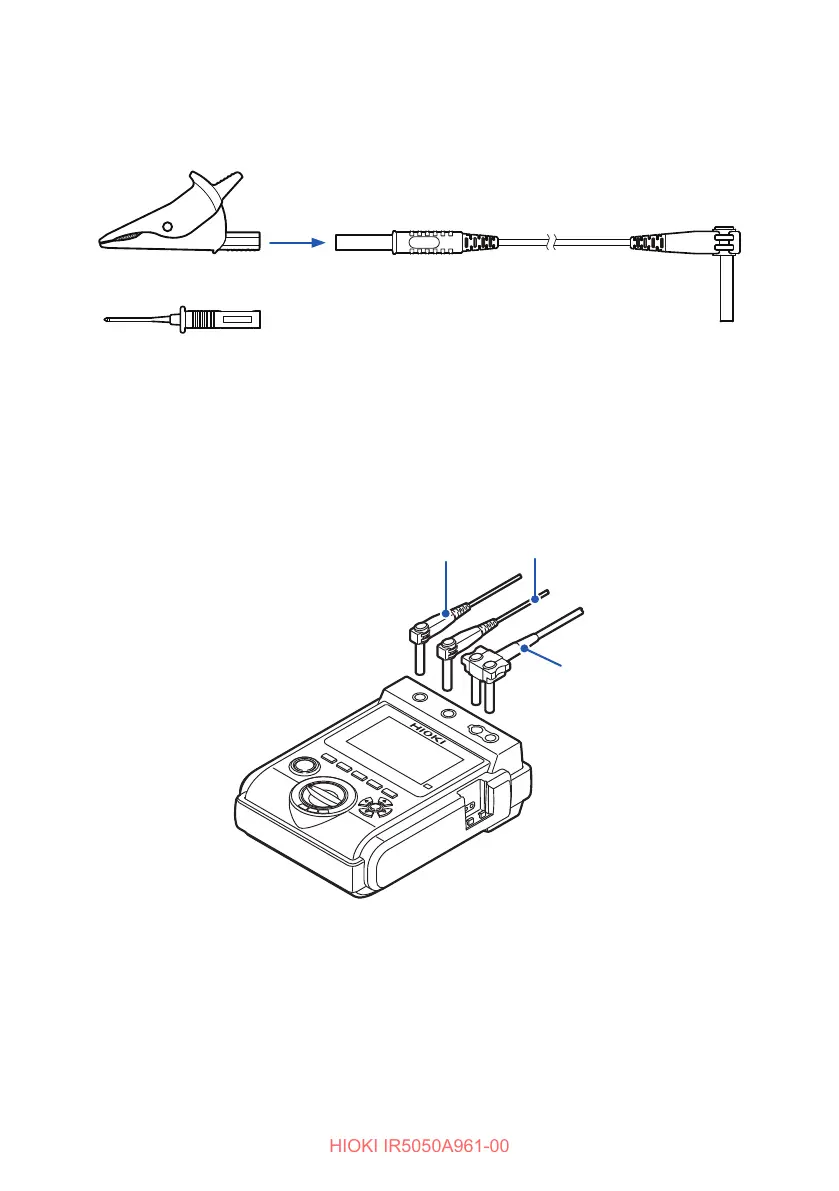

Connecting Test Leads
1
Connect alligator clips or test pins (IR5051 only) to the ends of test leads.
Insert it fully.
or
2
Connect the red test lead to the + terminal and the black test lead to the
− terminal.
For insulation resistance measurement, connect the blue test lead to the
GUARD terminal*
1
if necessary.
Insert it fully.
Red
Blue
Black
*1. A GUARD terminal is used to prevent the surface electrical resistance of an
insulating material a󰀨ecting measurement, enabling correct measurement of the
entire volume resistivity of the material.
See “3.6 Use of GUARD Terminal” (p. 48).
