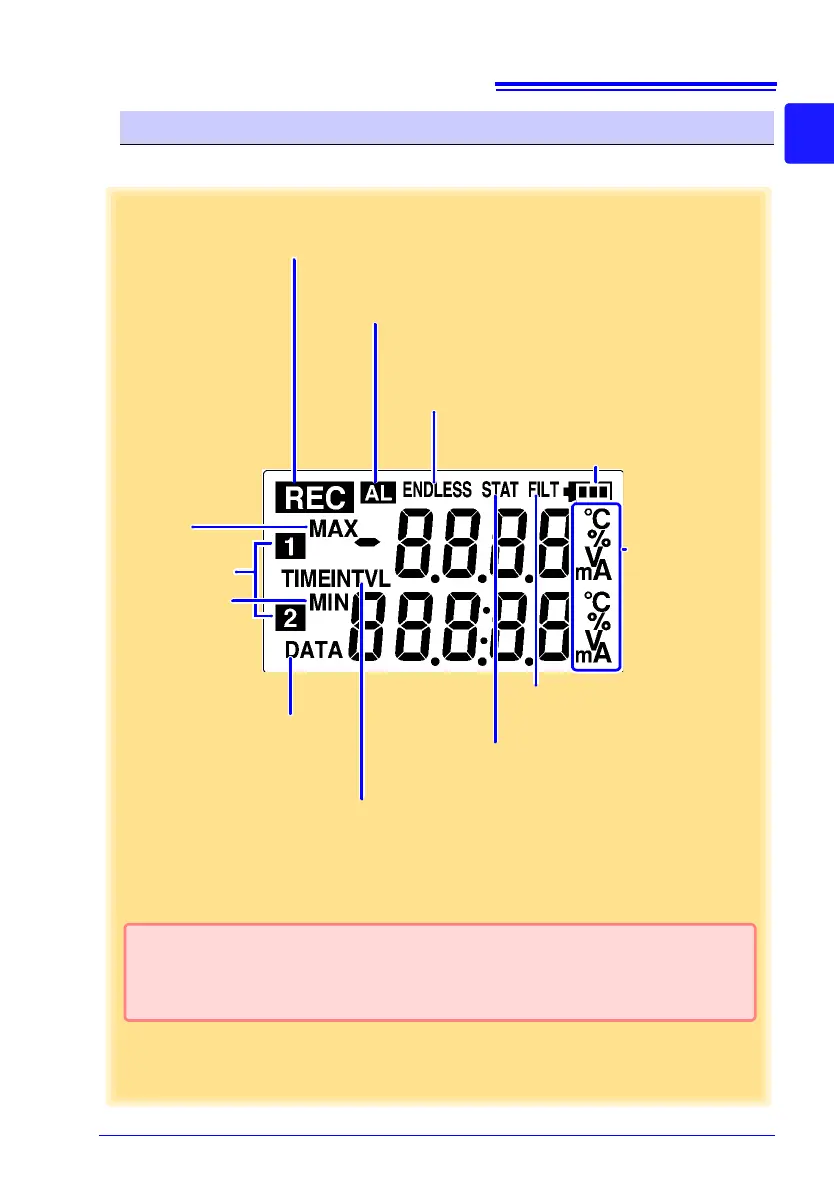

REC Indicator
Indicates recording in progress. (Blinks when waiting to record.)
ENDLESS indicator
Indicates the Stop Method Setting display.
Also appears on the Measurement display to indicate
endless recording (p.30) is enabled.
STAT indicator
Indicates the Recording Mode Setting display.
Also appears on the Measurement display to
indicate statistic recording (p.31) is enabled.
Not used by the logger.
Battery Status Indicator
Indicates the battery charge status. (p.18)
Units
Indicates the unit of
measurement on
each channel.
Measurement
Channel
MAX indicator
Indicates that the
value displayed at
the right is the max-
imum.
MIN indicator
Indicates that the
value displayed at
the right is the mini-
mum.
DATA indicator
Indicates that the value dis-
played at the right is the data
count.
* Setting is available from the LR5000 Utility Program or via the LR5092-20 Data Col-
lector.
See: "3.3 Making Settings from the LR5000 Utility Program" (p.32), LR5092-20 Data
Collector Instruction Manual
TIME indicator
Indicates the Date-Time Setting display.
INTVL indicator
Indicates the Recording Interval Setting
display.
AL indicator
When the alarm* function is enabled, this indicates when a mea-
sured value is outside of the specified (upper/lower value*) range.
To Next Page
