3.3 Making Settings from the LR5000 Utility Program
37
3
3
Chapter 3 Settings
1. Set the following options.
2. Confirm settings.
3. Click the [Save
] button.
(Scaling settings are saved, and the display returns to the Logger Settings screen.)
Note: If you click the [Cancel] button without saving the settings, the display still returns to
the Logger Settings screen.

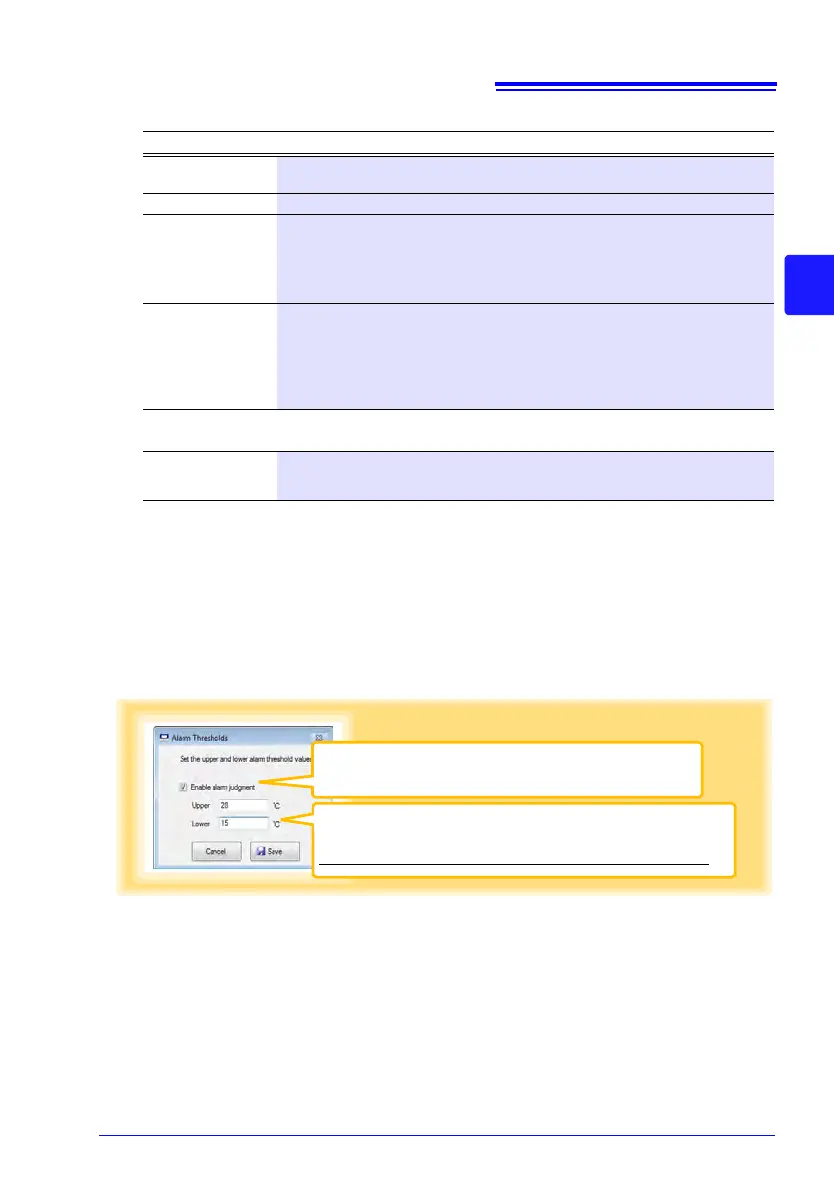

Alarm Thresholds (set as needed)
Set the upper and lower alarm threshold values.
When a measurement is outside of the specified area, the [AL] (alarm) indicator is
displayed on the logger.
Click the [Save] button to save your settings. 
(The display returns to the Logger Settings screen.)
Note: If you click the [Cancel] button without saving the settings, the display still returns to the
Logger Settings screen.
Note: Alarm judgment is performed at every recording interval during instantaneous recording,
and once per second during statistical recording.
Note: Alarm judgment is performed using measurement values with a larger number of digits
than the values (4 digits) indicated in the LR5001 display.
Note: The [AL] indicator appears when the measured value is out of range (OF/UF dis-
played), and when a sensor anomaly occurs (- - - - displayed).
Setting Options
Description
Specify by 
example
Enter two known conversion points (up to ten digits each).
Specify by A/B Enter the scaling coefficients (A and B, up to ten digits each).
Scaled units
• Select the [SI Prefix]. 
([p
]=1E-12, [n]=1E-9, []=1E-6, [m]=1E-3, blank =1E0, [k]=1E3, [M]=1E6,
[G]=1E9, [T]=1E12)
• Enter the [Ch
ar. String] to identify the scaled units.
(Up to five characters, except \, /, :, *, ?, ", <, >, and |.)
Display digits
•Select [Fixed decimal point] and specify the [Decimal digits] to be dis-
played to the right of the decimal point. Valid settings are 0 to 3. 
(Examples: selecting 0 displays values in the form 0000, and selecting 3 dis-
plays values in the form 0.000)
• When [Fi
xed decimal point] is not selected, values are displayed as four dig-
its (0.000 to 999
9) with automatic decimal positioning.
Setting 
confirmation
Confirm that scaling is performed properly.
Enter any numerical value as raw data, and click the [Calc
] button to display the
scaled result.
Upper and lower thresholds
Enter numerical values between -9999 and 9999 (up to six digits).
When scaling is enabled, enter these values as scaled results.
Enable alarm judgment
Select this check box to enable the alarm.
