3.3 Making Settings from the LR5000 Utility Program
38
Scaling converts actual measurement values to their corresponding values in arbi-
trarily determined units for display. It is useful for reconciling the difference between
values measured with the logger and those of a reference device.
For example, when two points of correspondence are known between values mea-
sured with the logger and those of the reference device, select [Specify by example].
(1) When the logger measures 0.2C the reference device measures 0.0C, and (2)
when the logger measures 50.4C the reference device measures 50.0C
Alternatively, when one point of correspondence is known between the logger and ref-
e
rence device, select [specify by A/B].
(1) The logger measures 0.2C and the reference device measures 0.0C.

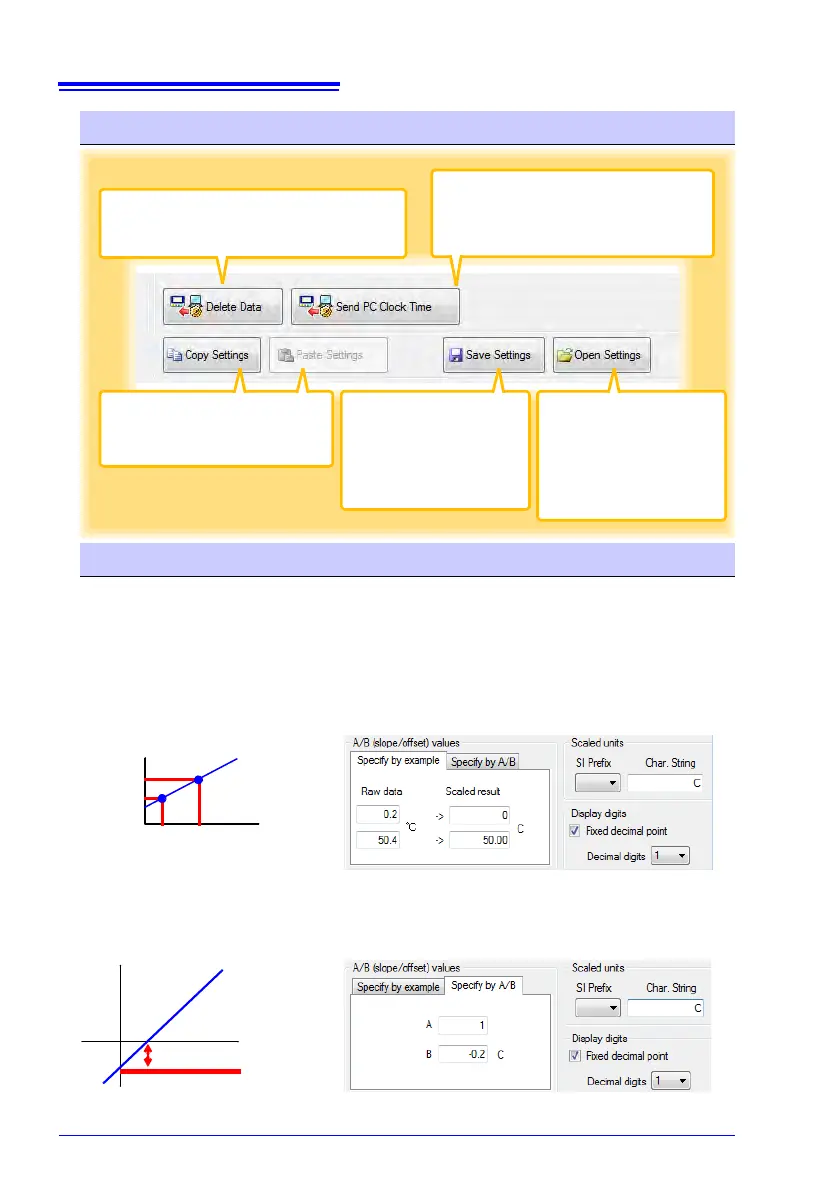

Other Settings on the Logger Settings Screen
Delete Data
Deletes recorded data in the selected logger
(only while connected).
Send PC Clock Time
Set the logger's clock to match the comput-
er's clock (after confirming the computer's
clock is correct).
Copy and Paste Settings
Settings can be copied from anoth-
er logger. (p.34)
Save Settings *
Saves settings to a computer
file. In the dialog box that ap-
pears, specify the location
and name of the destination
file (extension .conf).
Open Settings *
Loads settings from a com-
puter file. In the dialog box
that appears, specify the lo-
cation and name of the
saved settings file (exten-
sion .conf).
* Appears only when [Show the set-
tings of the [Save Settings] and
[Open Settings] buttons.] is selected
on the Options screen.
What is Scaling?
50.0
0.0
0.2 50.4
[C]
Actual measured value (raw data)
(Scaled result)
[C]
-0.2 Offset (coefficient B)
1
Slope (coefficient A)
[C]
[C]
Since only one point is known, set the slope to "1" and enter the offset only.
