Hioki RM3544 - Output Signal State at Power-On

8.2 Timing Chart
101
8
When transitioning from the Startup screen to the Measurement screen after turning on the
instrument’s power, the EOM and INDEX signals will turn ON.
When using pulse EOM output, the signals will remain OFF.

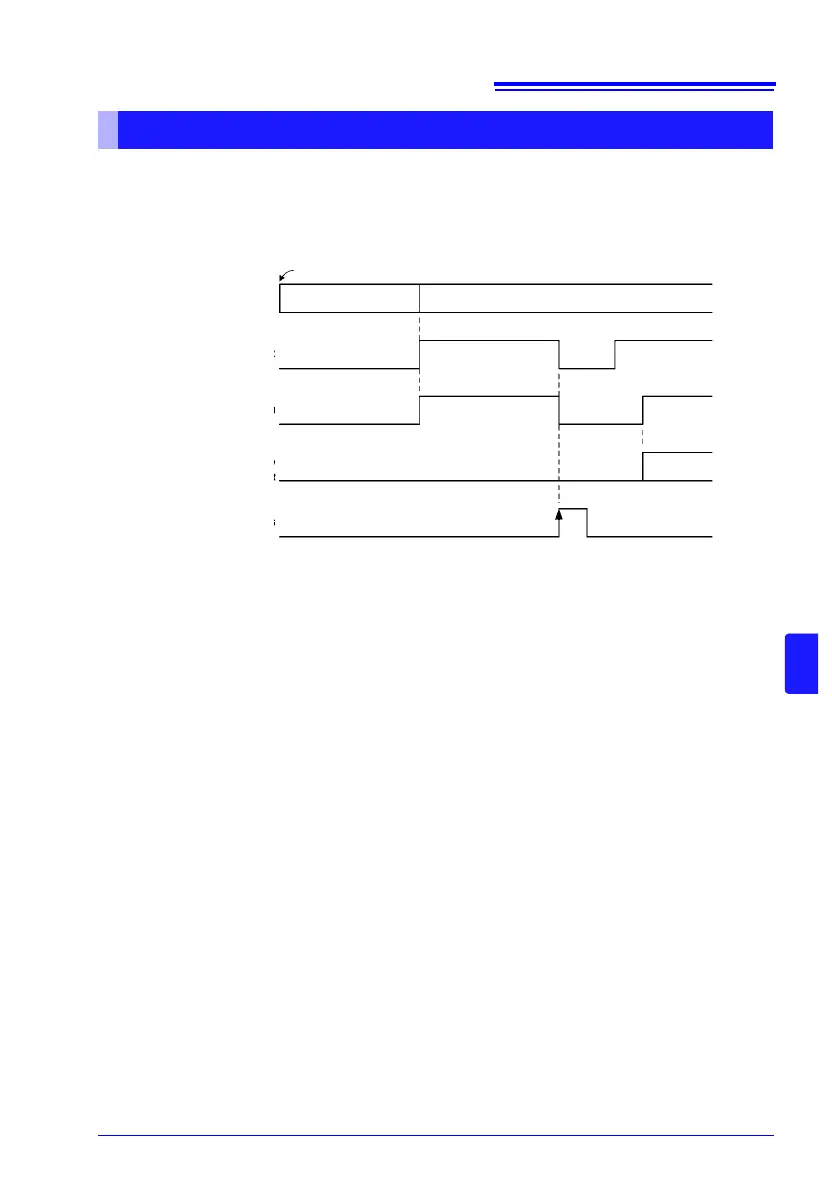

Output Signal State at Power-On
OFF
ON
OFF ONINDEX
EOM
OFF
ON OFF
ON
HI, IN, LO,
ERR
OFF
TRIG
Power-On
Initial Screen Measurement Screen
State
The chart depicts operation when the trigger source is set to EXT while using hold
EOM output.
