2.3 Connecting Z2001 Temperature Sensor (When using the TC)
27
2
Before connecting the temperature sensor, read "Operating Precautions" (p.5) carefully.
2.3 Connecting Z2001 Temperature Sensor
(When using the TC)
Connection Methods

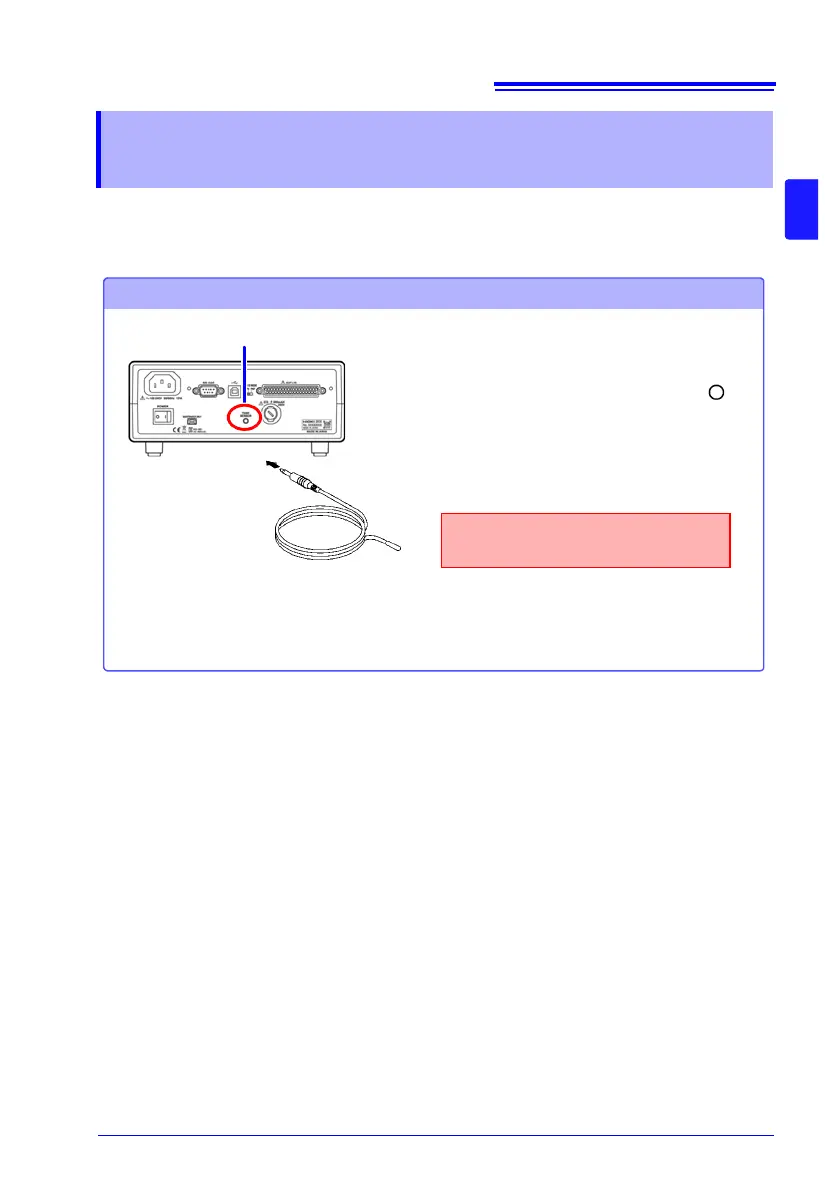

Connecting the Z2001 Temperature Sensor
Rear Panel
Z2001 Temperature Sensor
TEMP.SENSOR jack
Insert the plug securely all the way
into the jack.
1 Confirm that the instrument's Main
power switch (rear panel) is OFF( ).
2 Plug the Z2001 Temperature Sensor
into the TEMP.SENSOR jack on the rear
panel.
3 Place the tip of the temperature sensor
near the measurement target.
