Appendix 14 Rack Mounting
A28
By removing the screws on the bottom, this instrument can be installed in a rack mounting
plate.

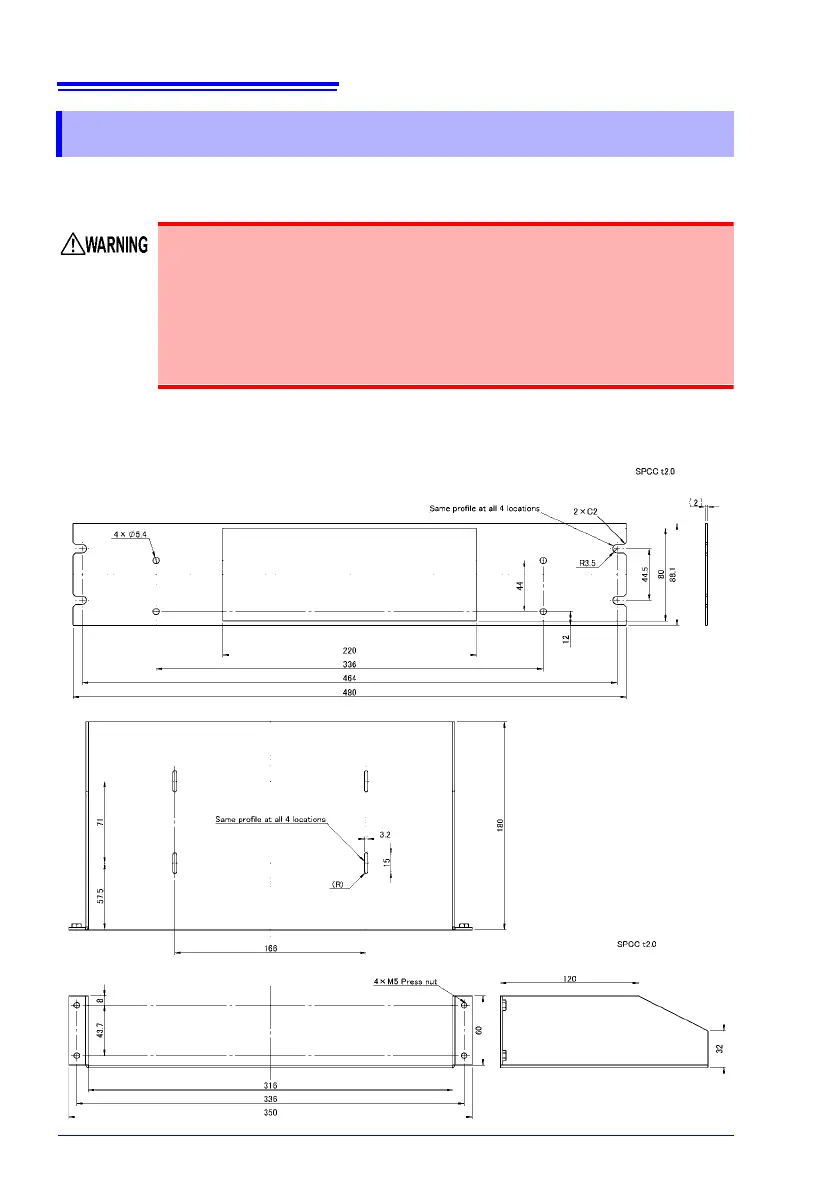

Rack Mounting Plate Template Diagram and Installation Procedure
Appendix 14 Rack Mounting
Observe the following precautions regarding the mounting screws to
avoid instrument damage and electric shock accidents.
• When removing the Rack Mounting Plate to return the instrument to
stand-alone use, replace the same screws that were installed origi-
nally. (Feet: M3 × 6 mm)
If you loose any screw or find that any screws are damaged, please
contact your Hioki distributor for a replacement.
Rack Mounting Plate (EIA)
