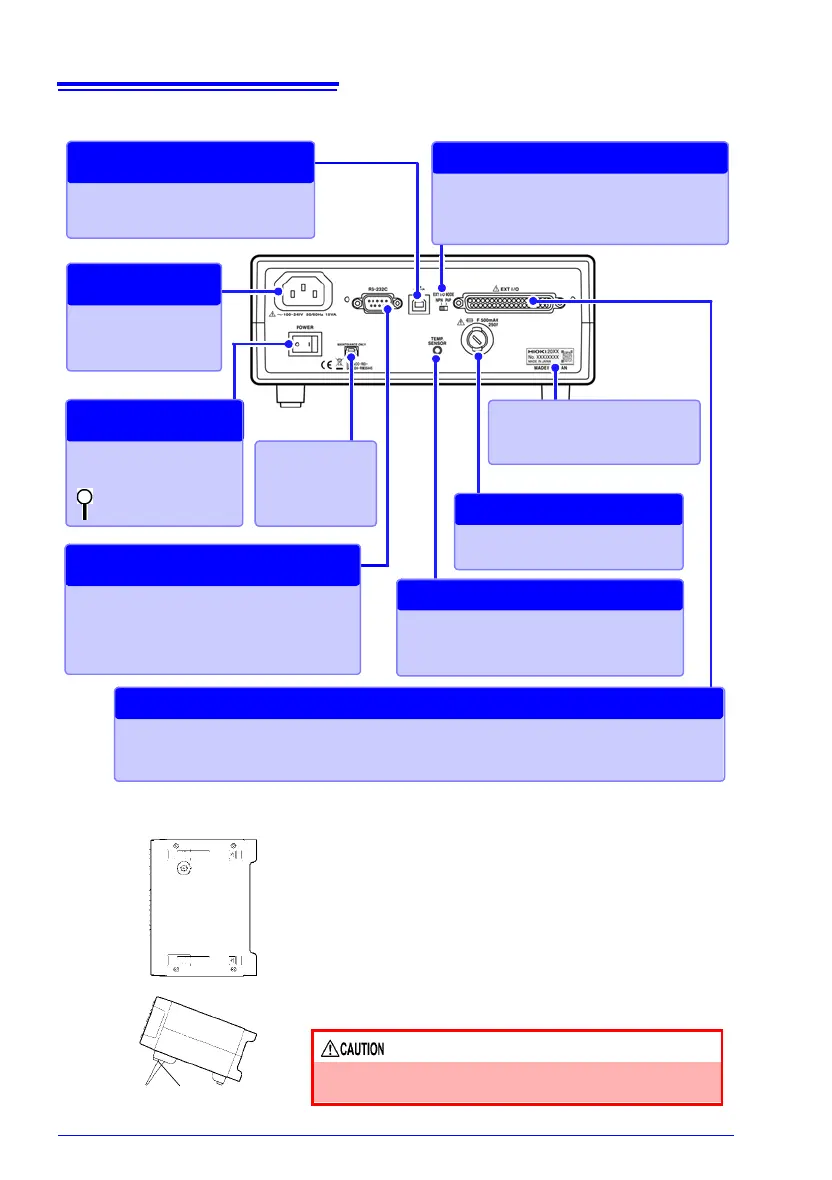

TEMP.SENSOR jack
Connect the Z2001 Temperature Sensor
when using temperature correction (p.27).
Correcting Temperature
RS-232C connector
• Connect to a computer, PLC, or other
device (p.126).
• Connect to a printer (p.137).
RS-232C Communications
Printer Output
Fuse holder (p.171)
Replacing the Fuse
Main power switch
(p.28)
: Main power off
: Main power on
Turning the Main
Power On and Off
EXT I/O connector
Connect when controlling the instrument with a PLC, I/O board, or other equipment to allow mea-
surement to be started and measured values and comparator results to be acquired (p. 89).
External Control
Manufacturer's Serial No.
Do not remove this label, as it is
required for product support.
Power Inlet
Connect the supplied
power cord (p.25).
Connecting the
Power Cord
EXT I/O NPN/PNP switch
Left : Current sink (NPN)
Right : Current source (PNP)
Switching between NPN and PNP
USB jack
Connect to a computer (p.123).
Sending and Receiving
Data via USB
Maintenance
terminal
Do not use.
Bottom Panel
Stand
When using the stand
Extend the legs all the way. Do not extend partially.
Make sure to extend both legs of the stand.
Collapsing the stand
Do not collapse the stand partway. Be sure to collapse it
all the way.
This instrument can be rack mounted.
See: "Appendix 14 Rack Mounting" (p. A28)
Parts removed from this instrument should be stored
in a safe place to enable future reuse.
Do not apply heavy downward pressure with the
stand extended. The stand could be damaged.
To Next Page
