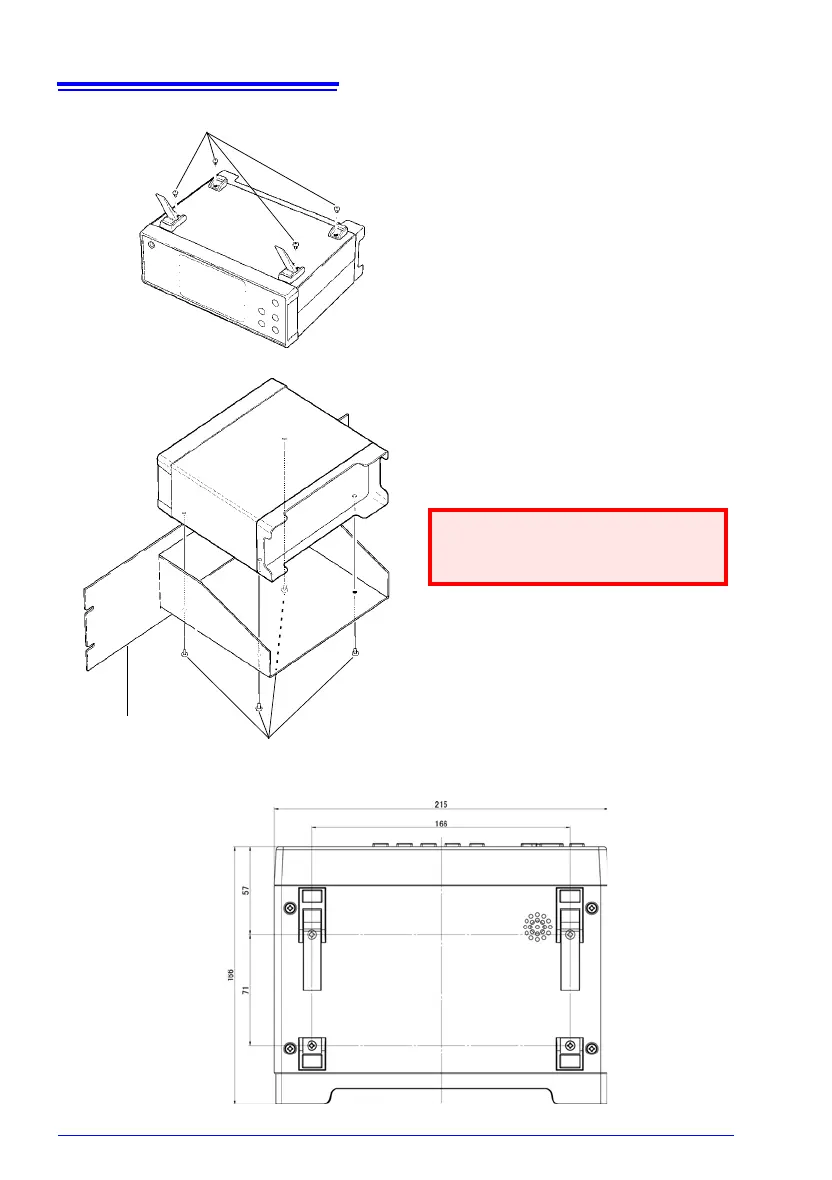

1 Extend the legs on the bottom
of the instrument and remove
the four screws.
2 Affix the Rack Mounting Plate
with the M3×6 mm screws.
M3×6 mm
M3×6 mm
Rack Mounting Plate
Screw location dimensional drawing
When installing into the rack, reinforce
the installation with a commercially
available support stand.
