3.4 Checking Measured Values
36

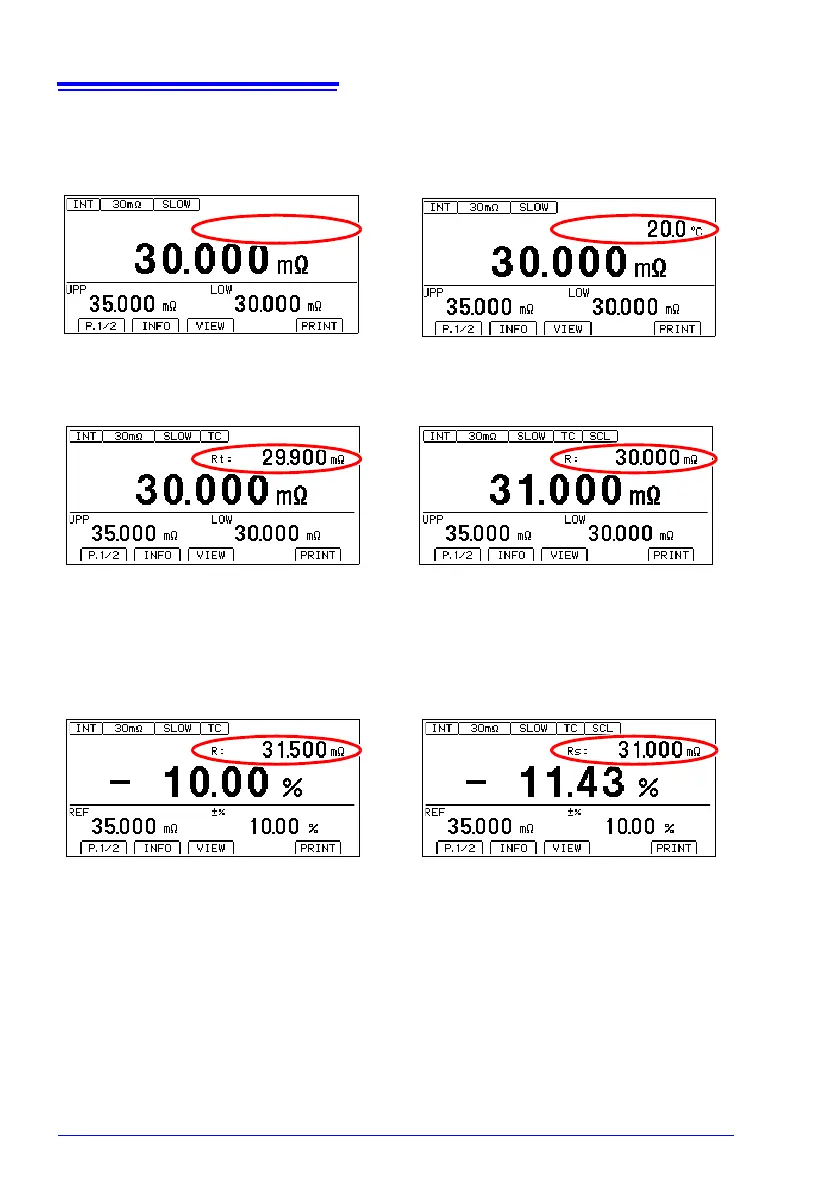

Example displays
Display of pre-calculation measured values varies with the settings.
(No display) (Temperature display)
Rt: Resistance measured value
before TC calculation
R: Resistance measured value
before scaling
(Value before REF% calculation
: With REF% comparator setting and
scaling OFF)
(Value before REF% calculation
: With REF% comparator setting and
scaling ON)
(Value before TC calculation
: With TC ON)
(Value before scaling calculation
: With scaling ON)
R: Resistance measured value
(before relative calculation)
RS: Resistance measured value
after scaling (before relative calculation)
