8.6 VLANs
193

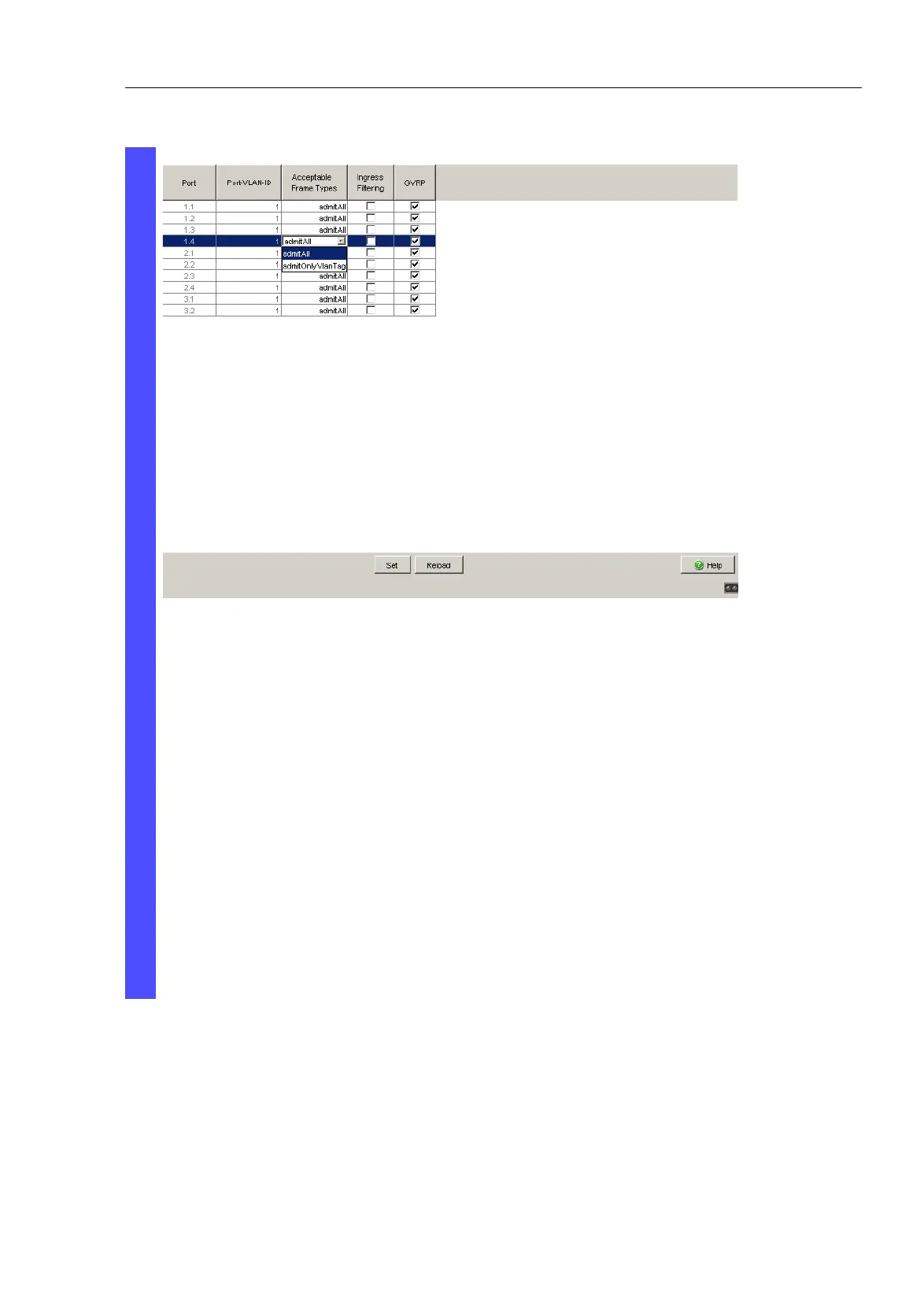

Figure 44: Assign and save Port VLAN ID, Acceptable Frame Types and
Ingress Filtering
 Assign the Port VLAN ID of the related VLANs (2 or 3) to the
individual ports - see table.
 Because terminal devices usually do not send data packets with a
tag, you select the admitAll setting for “Acceptable Frame Types”.
 The settings for GVRP and Ingress Filter do not affect how this
example functions.
 Click “Set” to temporarily save the entry in the configuration.
 Select the
Basics: Load/Save dialog.
 In the “Save” frame, select “To Device” for the location and click
“Save” to permanently save the configuration in the active
configuration.
