Troubleshooting
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 37/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

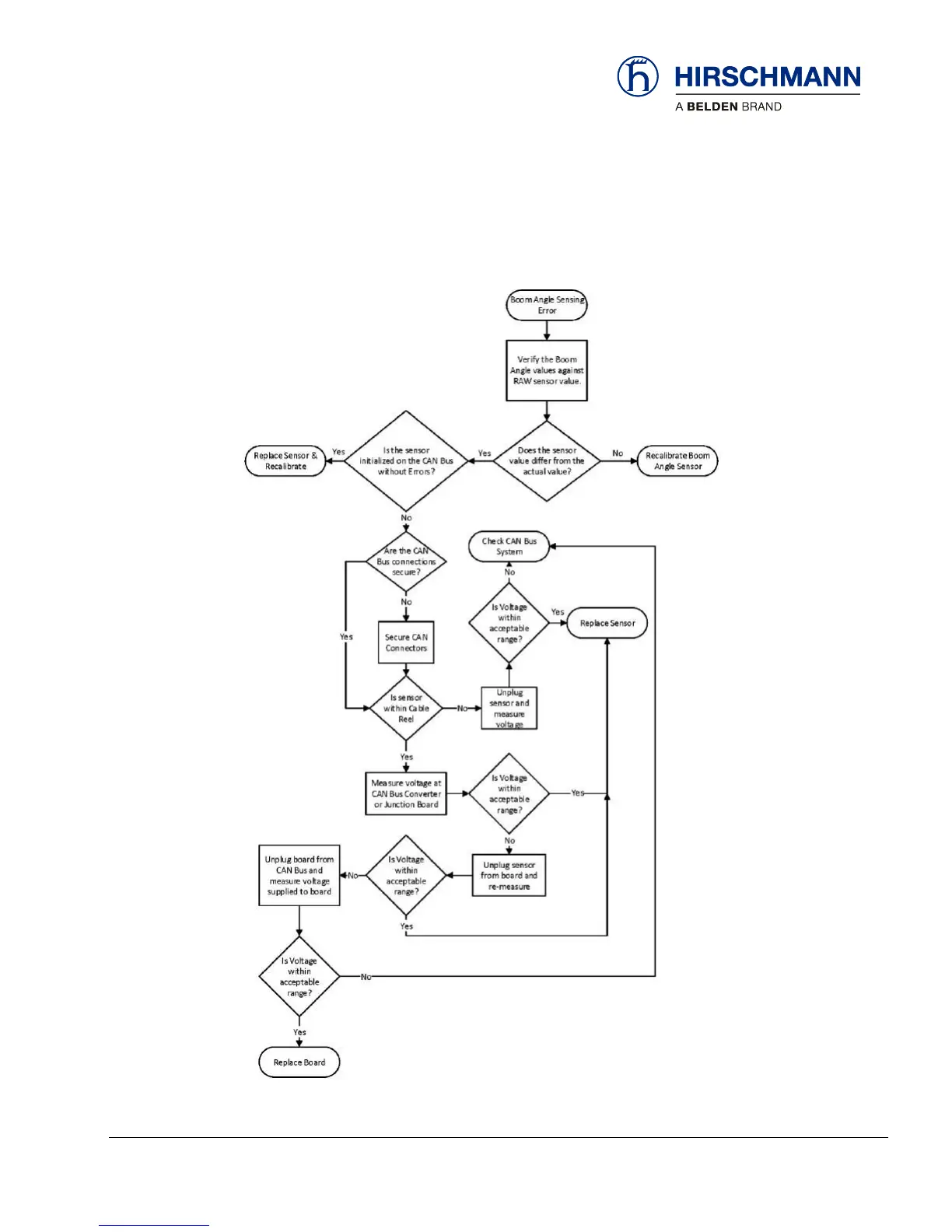

3.2.5.2 Boom Angle Sensing Error – Flow Chart
Use the following flow chart to troubleshoot errors with boom angle sensing for both WGX and WGC
angle sensors.
Flow Chart
