Hirschmann qSCALE i2 - Boom Angle Calibration

Commissioning
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 63/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

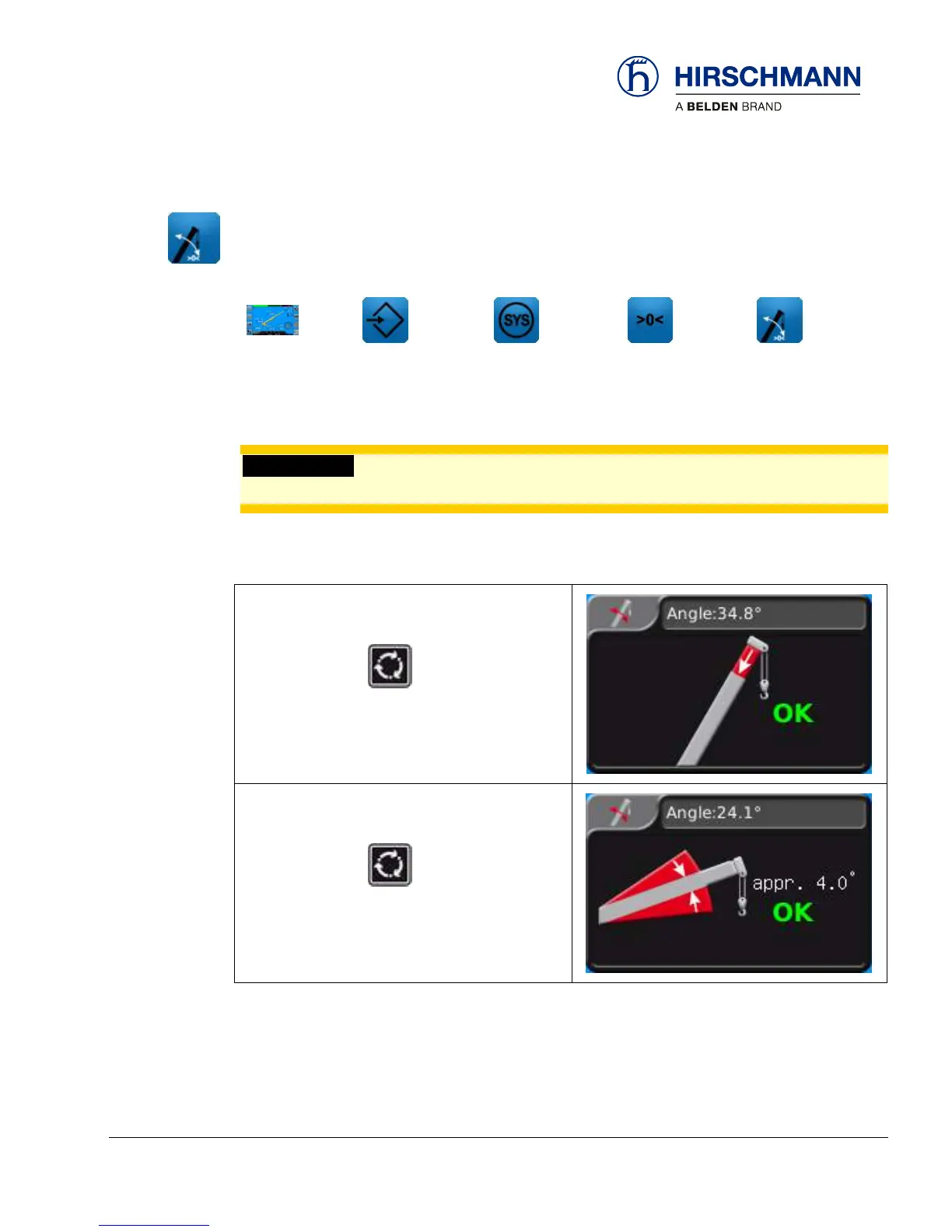

4.2.3 Boom Angle Calibration
This section describes how to calibrate the boom angle sensor.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
SETUP
SENSOR
CALIBRATION
BOOM
ANGLE
IMPORTANT
The crane must be on a level surface and outriggers properly positioned to calibrate this sensor.
1. Fully retract the boom
2. Press the SET button to confirm this
is completed.
3. Lower the boom to a near zero degree value.
4. Press the SET button to confirm this
is completed.
Instructions
