Hirschmann qSCALE i2 Service Manual

Commissioning
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 66/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

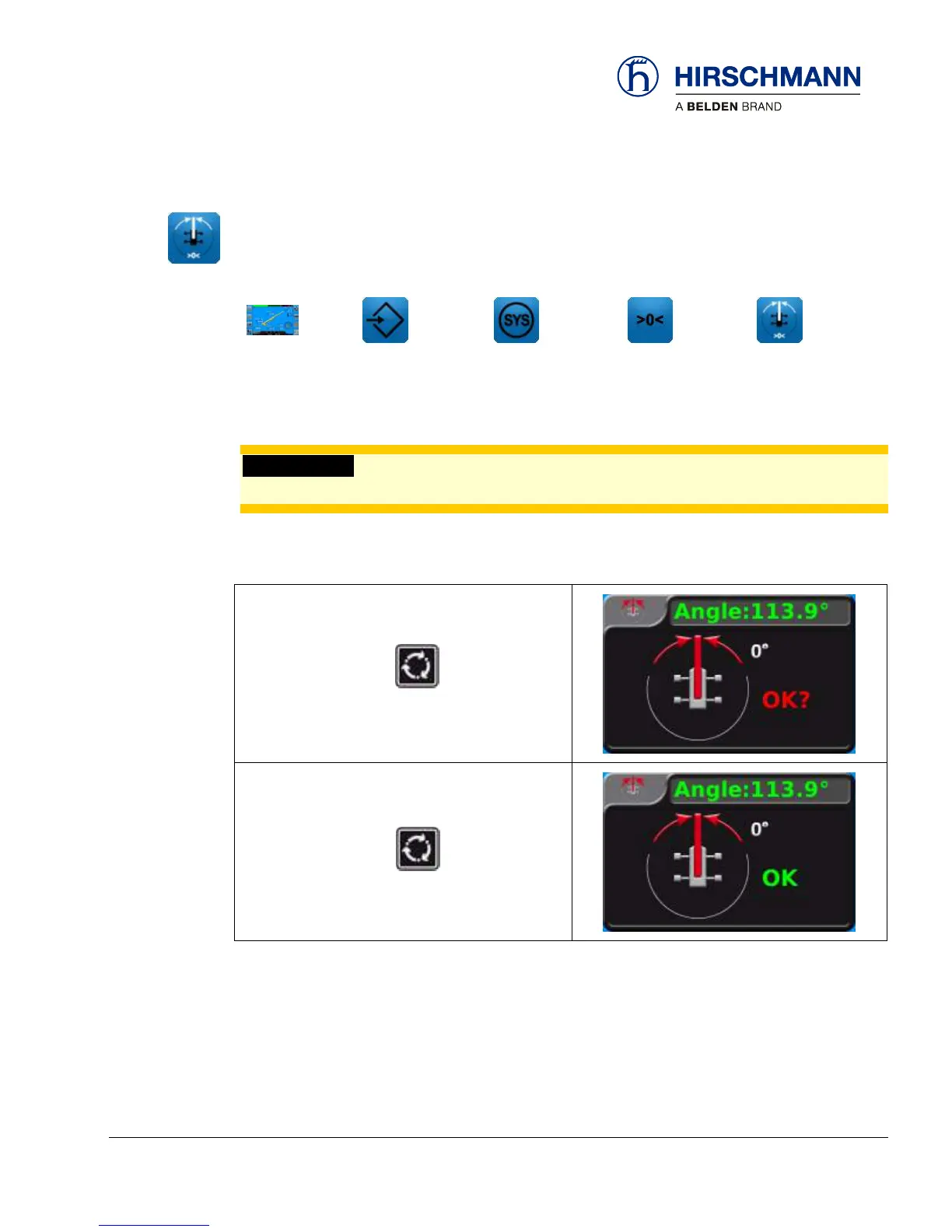

4.2.4 Slew Sensor Calibration
This section describes how to calibrate the slew angle sensor.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
SETUP
SENSOR
CALIBRATION
SLEW
ANGLE
IMPORTANT
The crane must be on a level surface and outriggers properly positioned to calibrate this sensor.
1. Move the boom to 0° slew
2. Press the SET button to confirm
this is completed.
3. It must be confirmed a second time that
the boom is moved to the front of the ma-
chine.
4. Press the SET button to confirm
this is completed.
