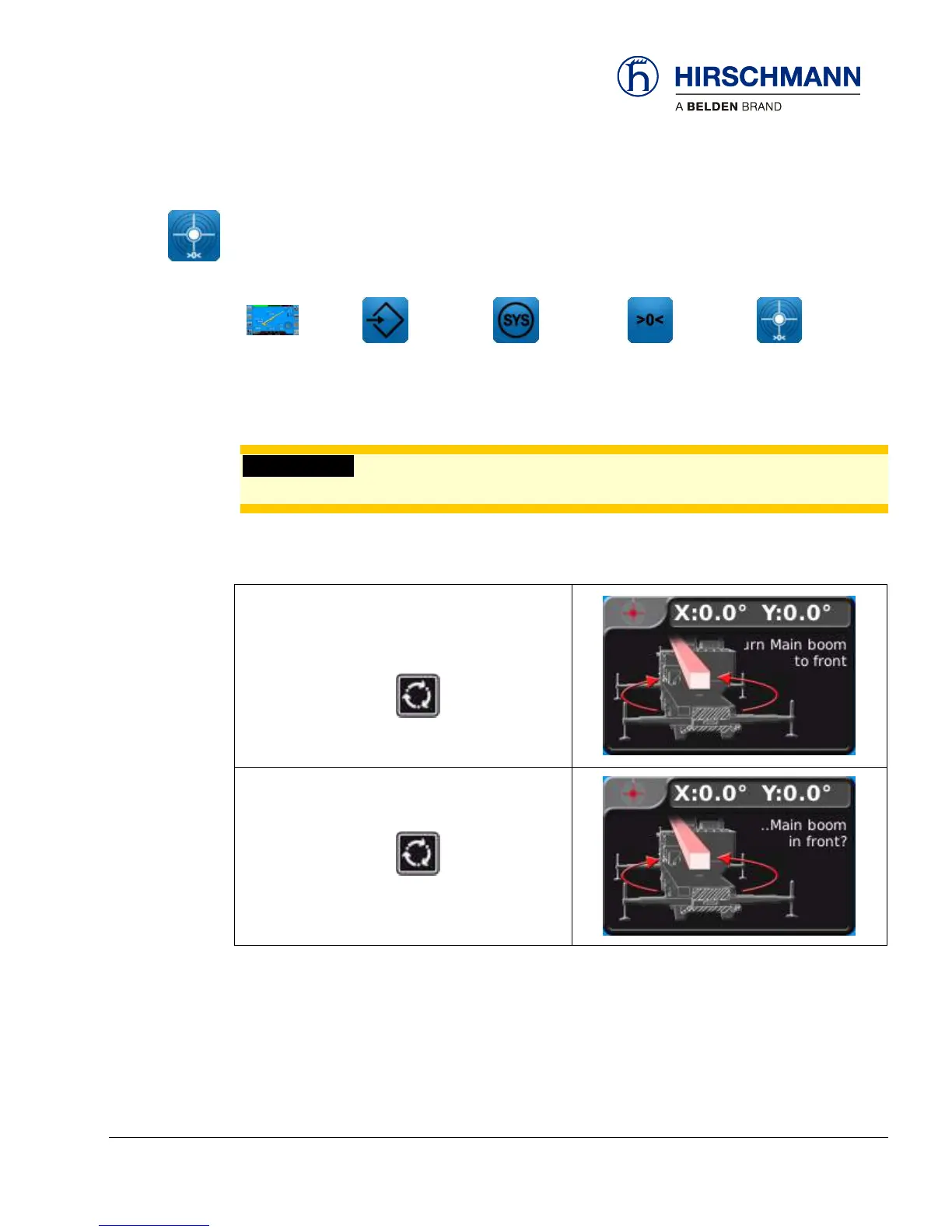

4.2.5 Tilt Sensor Calibration
This section describes how to calibrate the tilt angle sensor.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
SETUP
SENSOR
CALIBRATION
TILT ANGLE
IMPORTANT
The crane must be on a level surface and outriggers properly positioned to calibrate this sensor.
9. Level the machine
10. Move the boom to the front of the machine
11. Press the SET button to confirm
this is completed.
12. It must be confirmed a second time that
the boom is moved to the front of the ma-
chine.
13. Press the SET button to confirm
this is completed.
Instructions
