qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

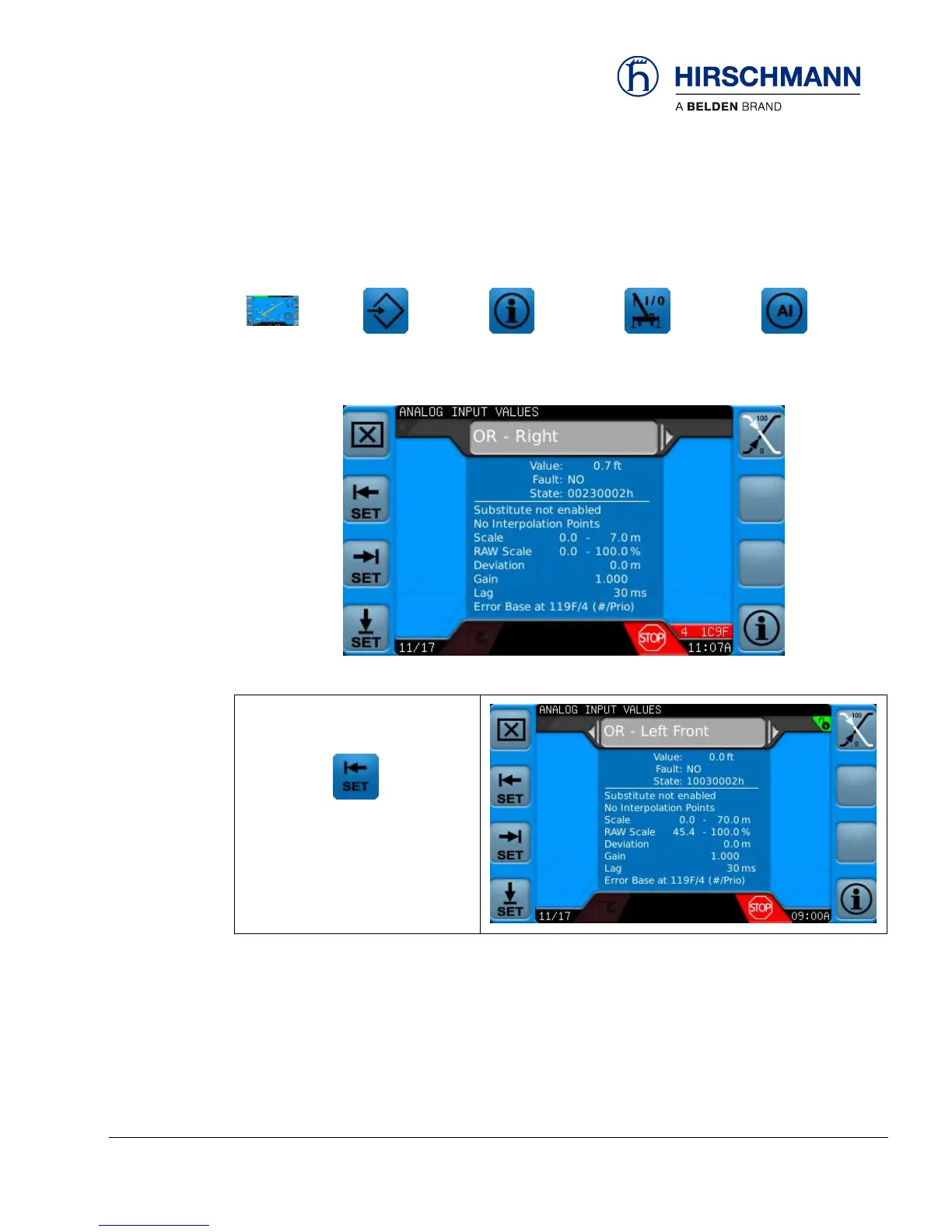

4.2.6 Analog Outrigger Calibration
This section is only for models with Analog Outrigger Length Sensors. Unlike the length and angles
sensors, calibration for outriggers is done through the Analog Input Screen.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
INFORMATION
SELECTION
SENSOR
INFORMATION
ANALOG
INPUTS
1. Fully retract the outriggers
2. Press the function but-
ton to set the scale start.
