Commissioning
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 70/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

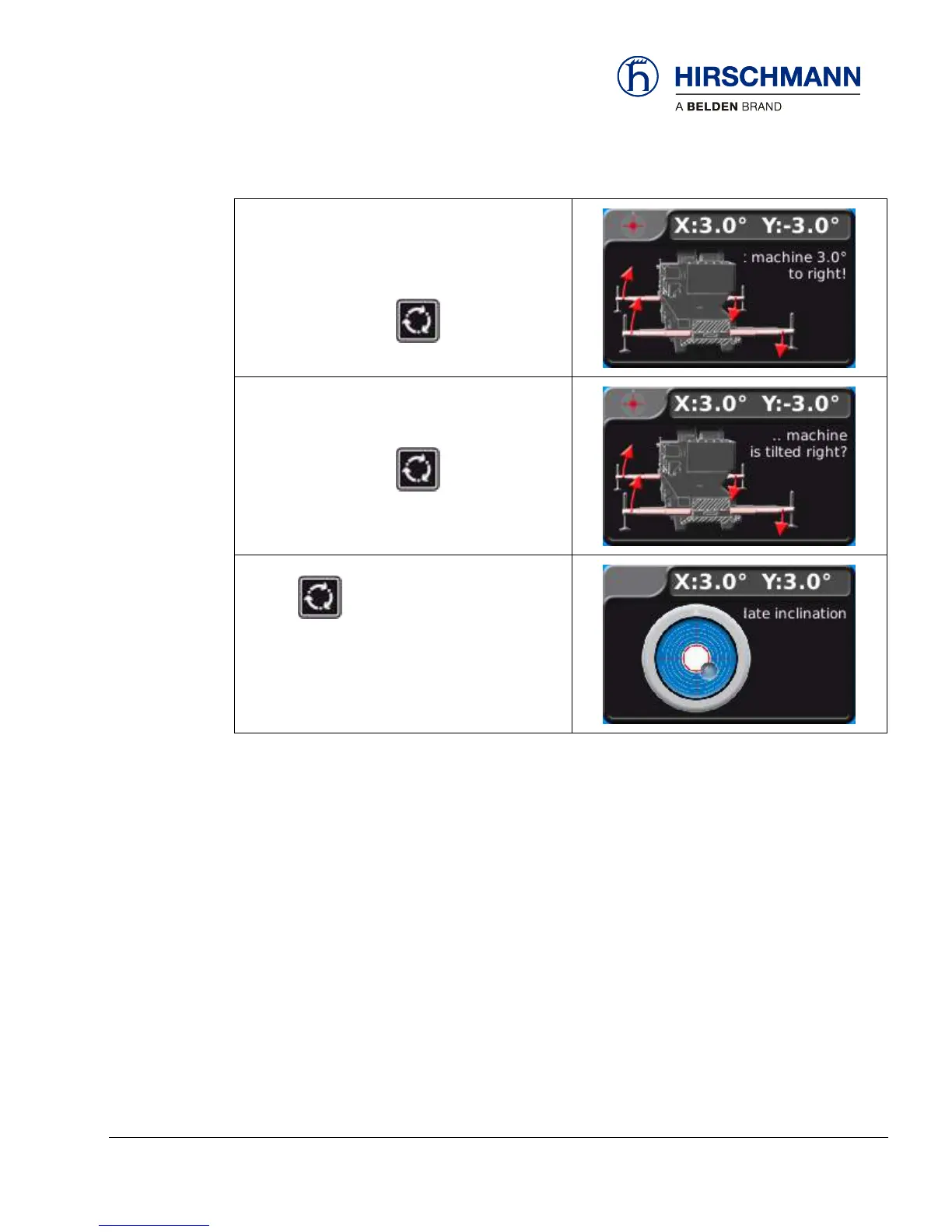

24. Tilt the machine to the right by retracting
the right outriggers and/or extending the
left outriggers.
25. Press the SET button to confirm
this is completed.
26. It must be confirmed a second time that
the machine is tilted to the right.
27. Press the SET button to confirm
this is completed.
28. Finish the calibration by pressing the SET
button.
