Hirschmann qSCALE i2 - Boom Length Calibration

Commissioning
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 61/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

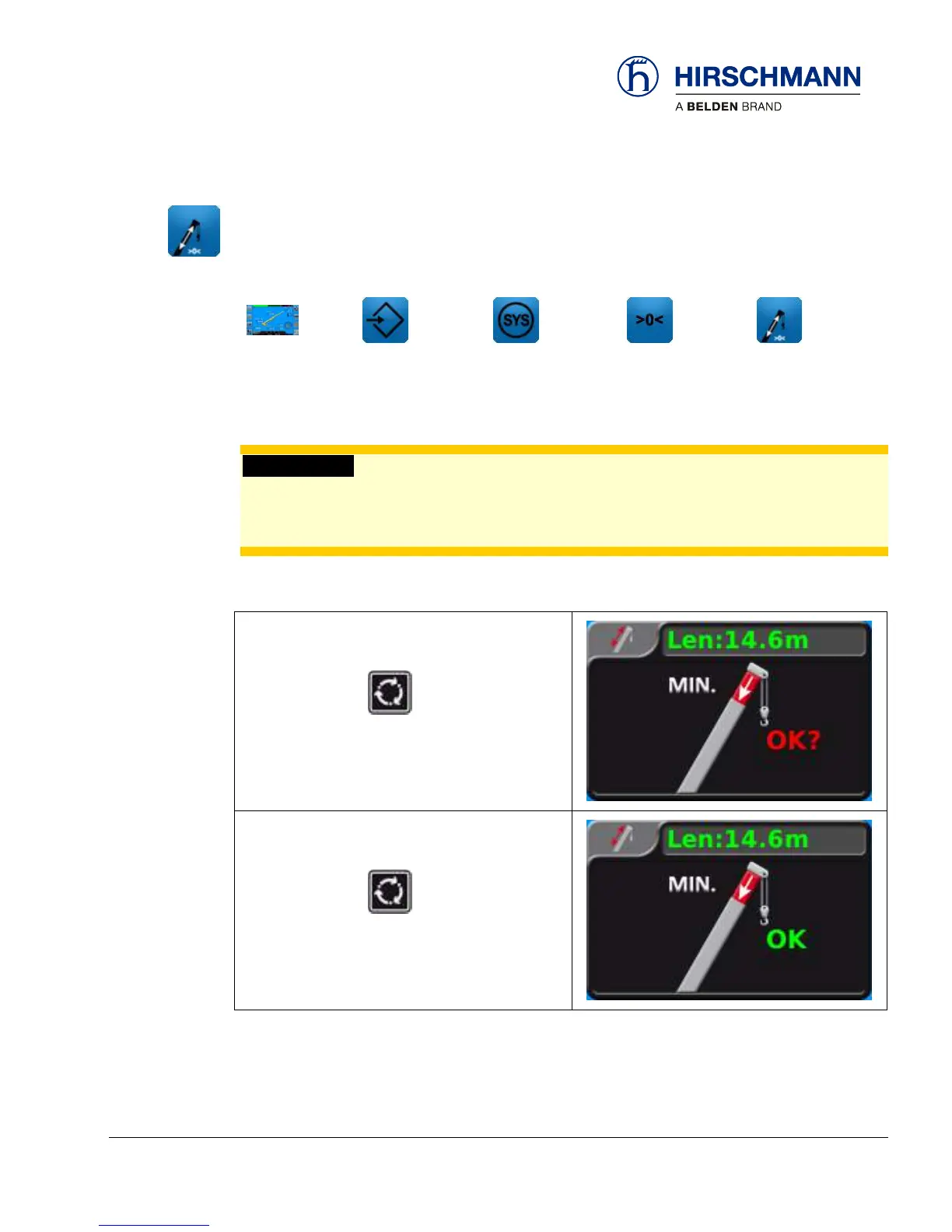

4.2.2 Boom Length Calibration
This section describes how to calibrate the boom length sensor.




MAIN
WORKING
SCREEN
OP-MODE
CONFIRM
SETUP
SENSOR
CALIBRATION
BOOM
LENGTH
IMPORTANT
The crane must be on a level surface and outriggers properly positioned to calibrate this sensor.
The boom must also be at an angle where it can fully extend and remain within allowable load
chart values.
5. Fully retract the boom.
6. Press the SET button to confirm this
is completed.
7. The OK on the screen should now be green.
8. Press the SET button to confirm this
is completed.
Instructions
