9. Fully extend the boom (check the load chart of
the machine to find a safe configuration for ful-
ly extending the boom).
10. Press the SET button to confirm this
is completed.

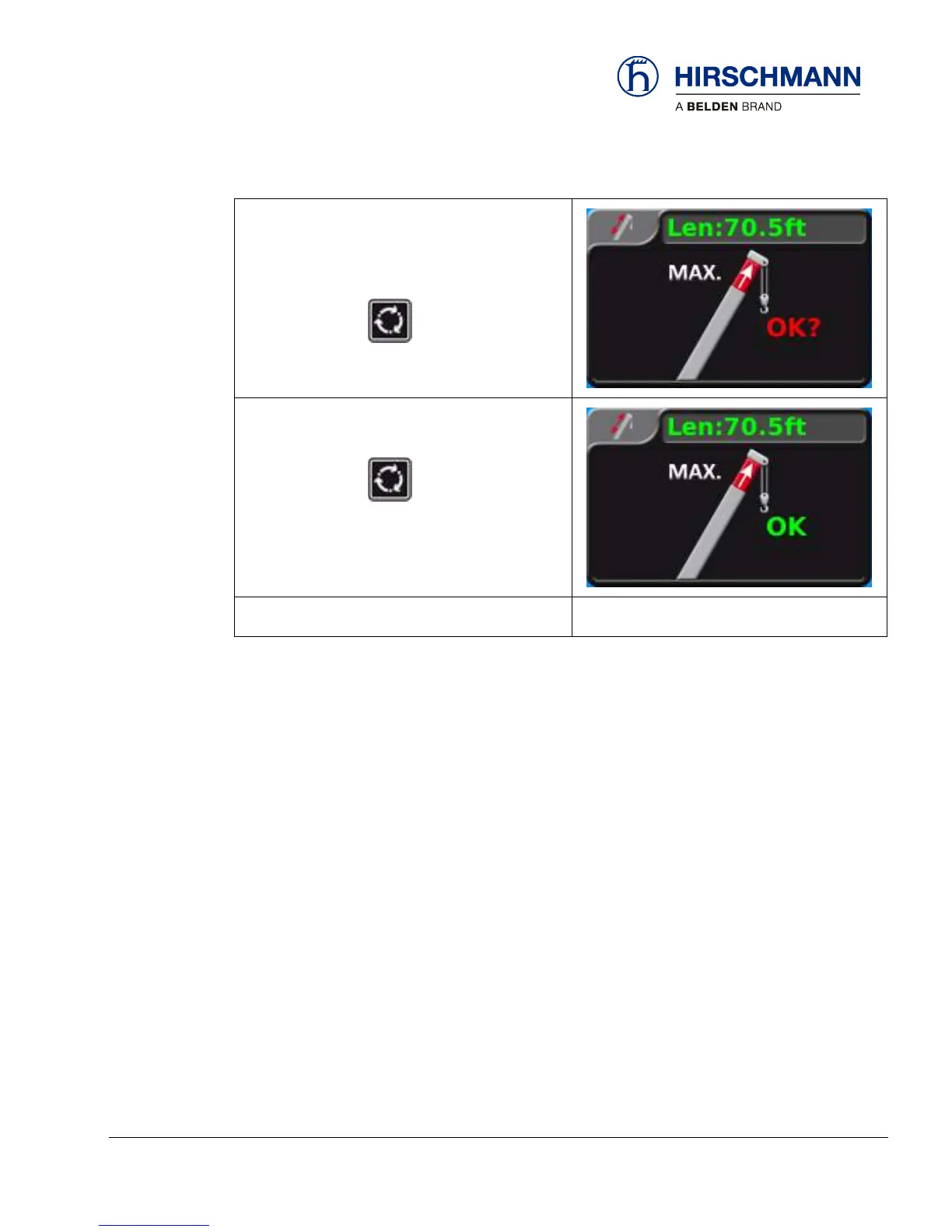

11. The OK on the screen should now be green.
12. Press the SET button to confirm this
is completed.
13. Length Sensor Calibration is complete.
