Commissioning
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 69/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

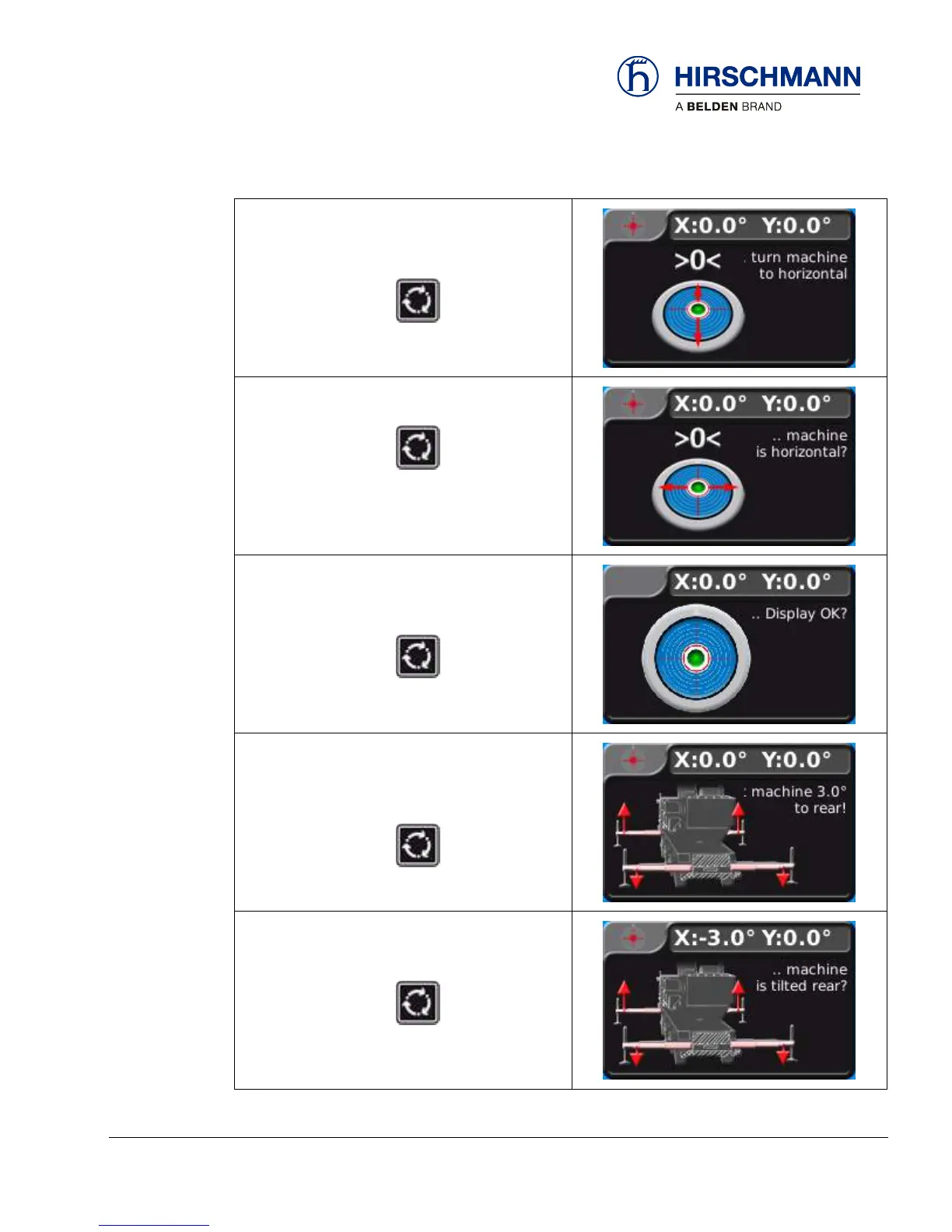

14. Slew the boom 90° (making the machine
horizontal)
15. Press the SET button to confirm
this is completed.
16. It must be confirmed a second time that
the machine is horizontal.
17. Press the SET button to confirm
this is completed.
18. Confirm that the machine is level in the X
and Y directions.
19. Press the SET button to confirm
this is completed.
20. Tilt the machine 3° to the rear by retract-
ing the rear outriggers and/or extending
the front outriggers.
21. Press the SET button to confirm
this is completed.
22. It must be confirmed a second time that
the machine is tilted to the rear.
23. Press the SET button to confirm
this is completed.
