Commissioning

qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

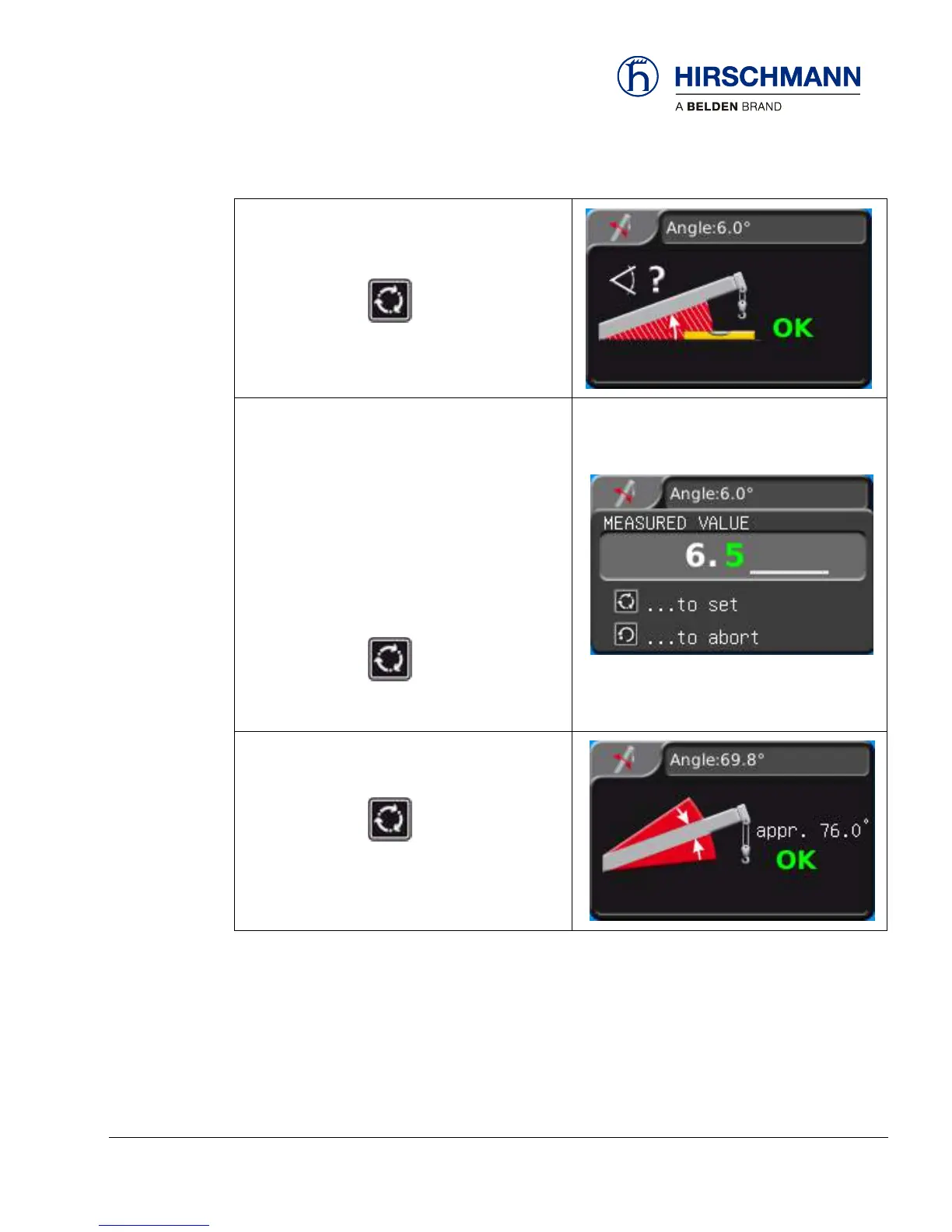

5. Use a digital inclinometer to measure the actu-

al boom angle.

6. Press the SET button to confirm this

is completed.

7. Enter the measured angle from Step 5.

a. Rotate the rotary encoder clockwise to in-

crease the digit (negative and decimal

points available for selection)

b. Rotate the rotary encoder counter clock-

wise to decrease the selected digit (nega-

tive and decimal points available for selec-

tion

c. Press the rotary encoder to advance to the

next digit

8. Press the SET button to confirm this

is completed.

9. Raise the boom to a higher angle (closer to

maximum angle is better).

10. Press the SET button to confirm this

is completed.
