Troubleshooting
© 2016 Hirschmann Automation and Control GmbH · Mobile Machine Control Solutions · www.beldensolutions.com 47/161
qSCALE i2 Cranes (Tool Version 3.0.34) Service Manual / Issue B / 11-2017 / ac.

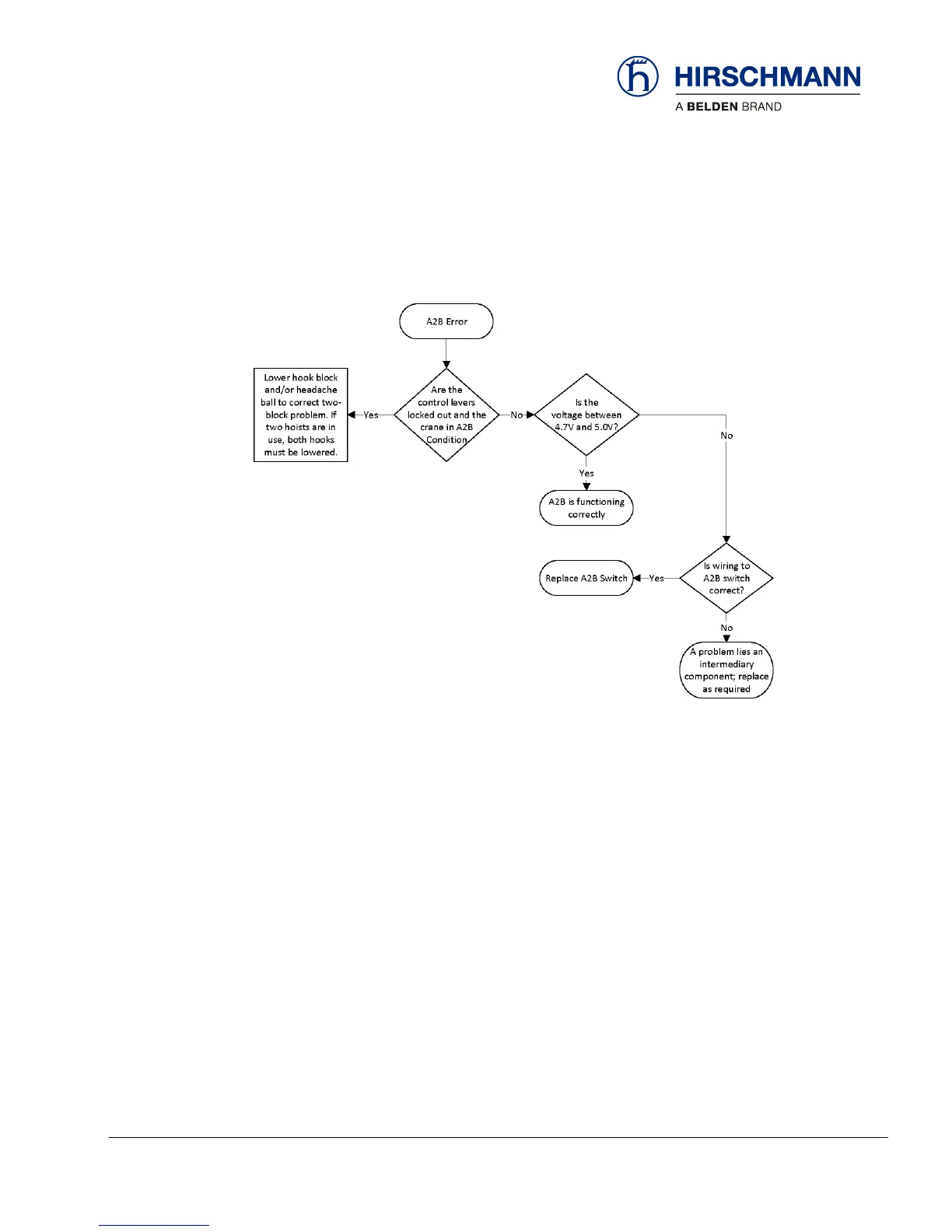

3.2.9.1 A2B Problem – Flow Chart
Use the following flow chart to troubleshoot errors with A2B switch input.
Flow Chart
