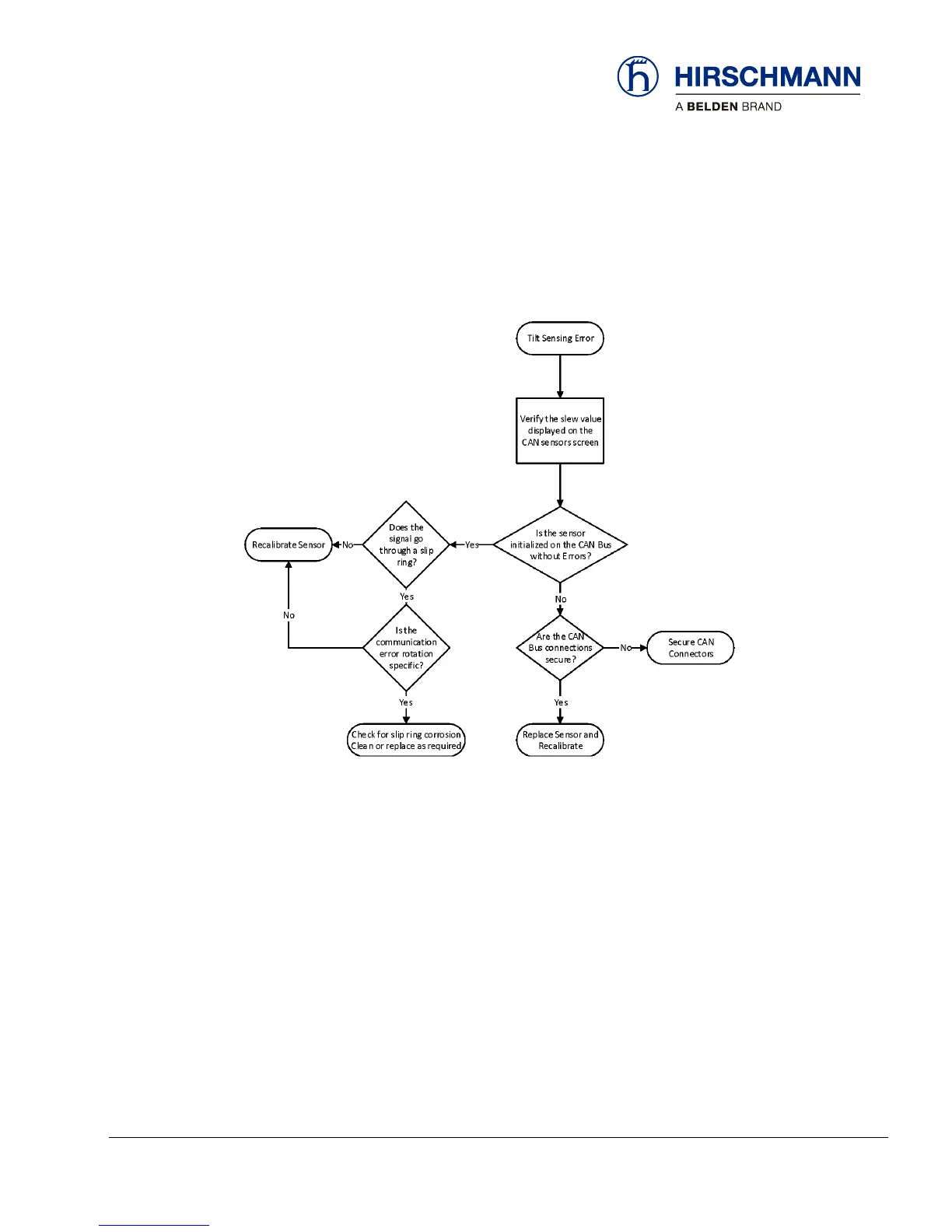

3.2.11.2 Tilt XY Sensing Error – Flow Chart
Use the following flow chart to troubleshoot errors with Tilt Sensing.
Flow Chart
