Hisun HS800 - CV Axle, Rear Axle

CHASSIS
5-32

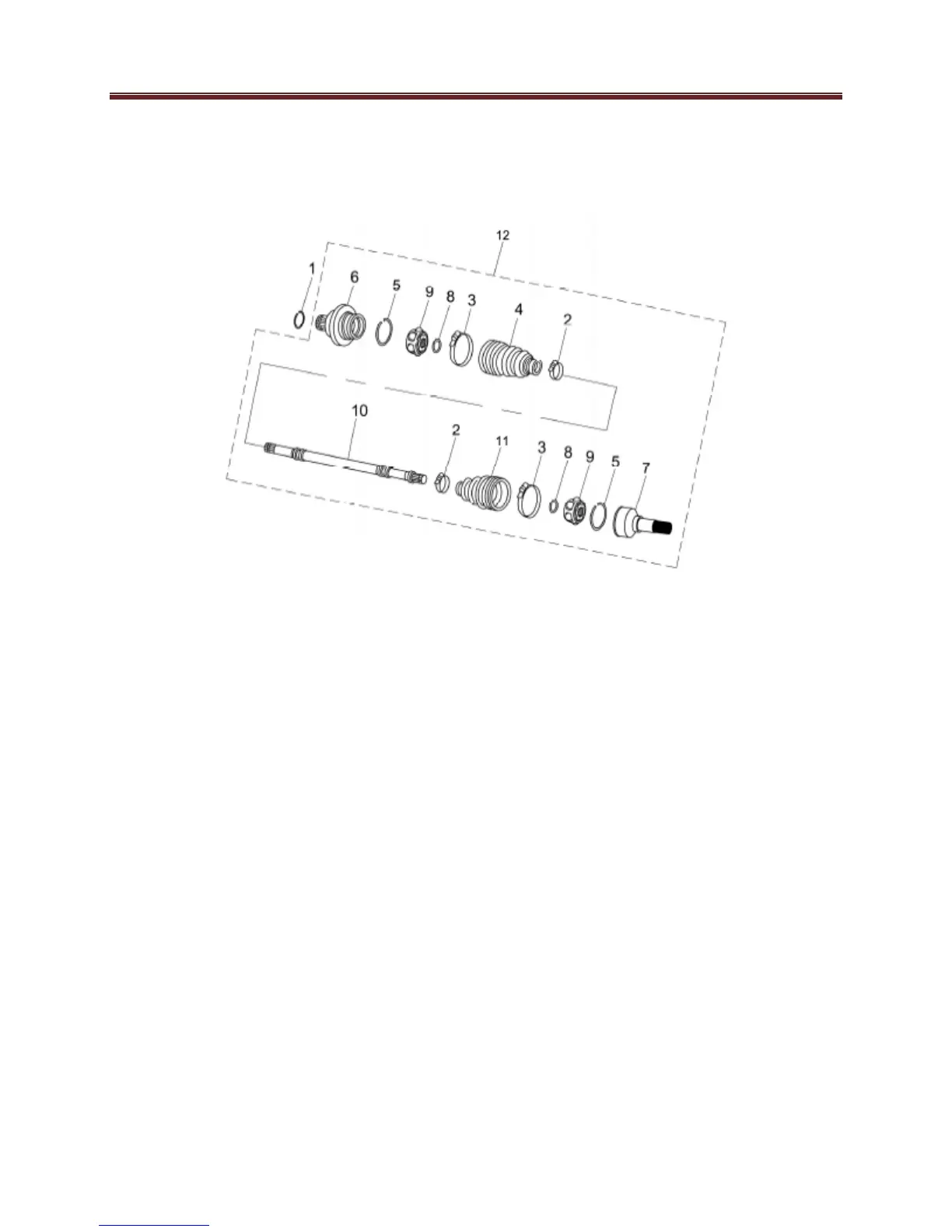

CV Axle, Rear Axle
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
9
10
11
12
Removing the rear bridge (L+R)
Circlip
Adjustable Clamp
Hoop A,dust p shed
Inner rubber dust-proof(c-1513), front axle
Circlip
Double off-set joint assembly
Double off-set joint assembly
Circlip
Ball bearing
Joint shaft assembly
Outer rubber dust-proof(C-1605), front axle
C.V Axle, rear axle
2
4
4
2
4
2
2
4
4
2
2
2
Rear Bridge Reducer
