Hisun HS800 - Footrest

CHASSIS
5-20

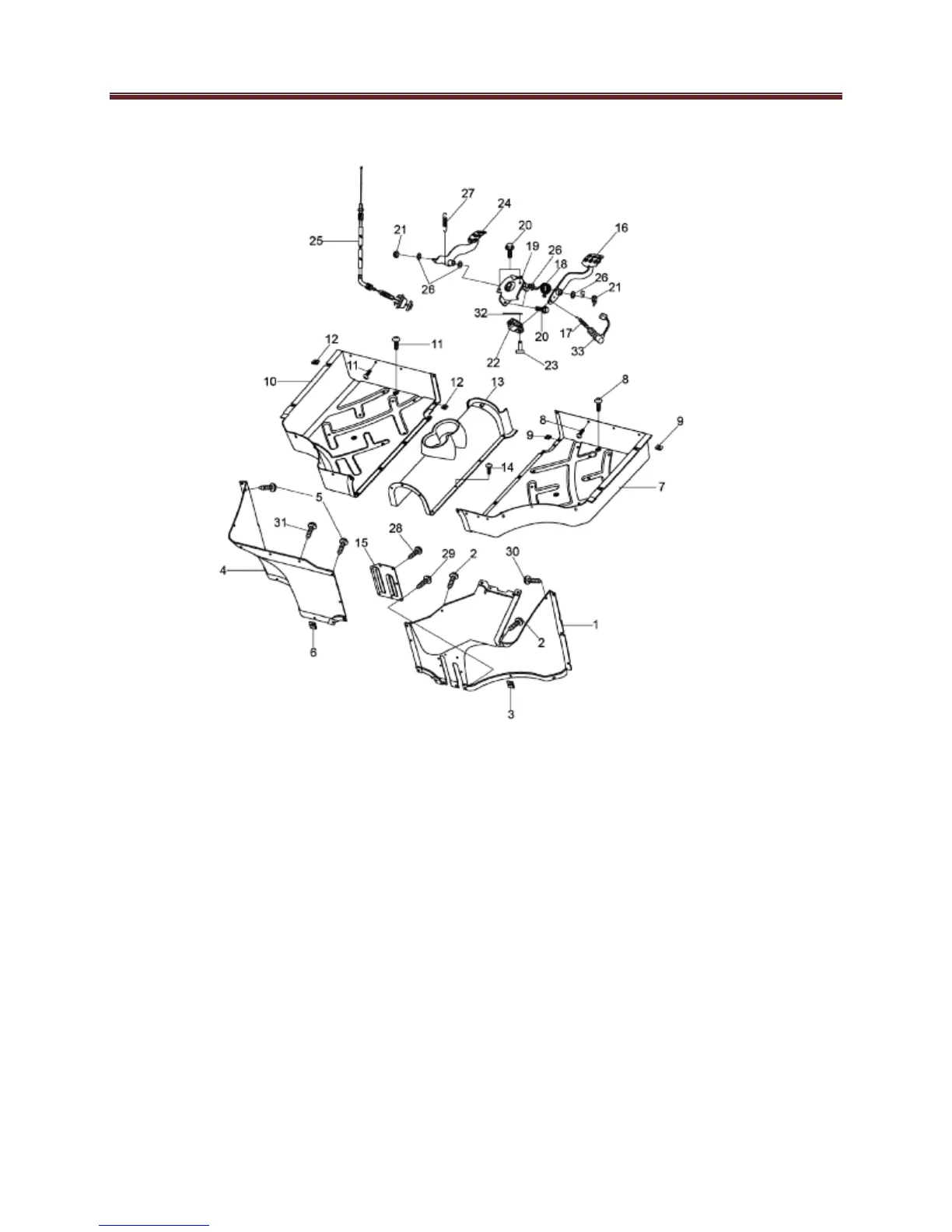

Footrest
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
Removing the footrest
Left front mud-guard board
Cross big plate head screw M6×12
Screw thread clip M6×2
Right front mud-guard board
Cross large plate head screw M6×16
Screw thread clip M6×2
Left footrest protector
Cross large plate head screw M6×16
Screw thread clip M6×2
Right footrest protector
Cross big plate head screw M6×12
Screw thread clip M6×2
Axle cover
1
2
10
1
2
4
1
7
4
1
8
4
1
