Hisun HS800 - Cylinder and Piston Assembly

Engine
4-14

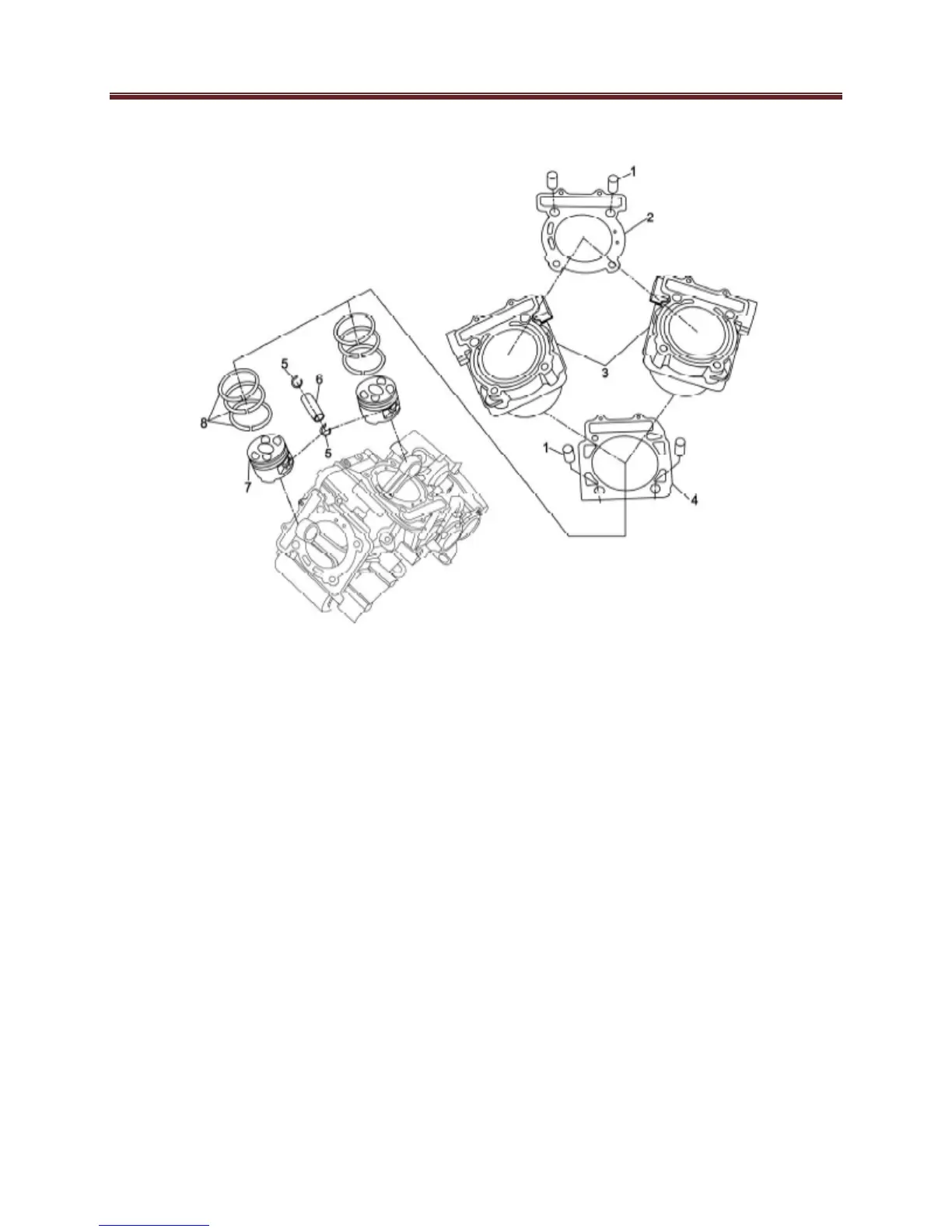

Cylinder and Piston
No.
Part Name
Qty
Remarks
1
2
3
4
5
6
7
8
Removing the Cylinder and Piston
Water pump outlet hose
Cylinder head
Dowel Pin
Cylinder head gasket
Cylinder
Cylinder base gasket
Piston pin clip
Piston pin
Piston
Piston Ring set
16
2
2
2
4
2
2
2
Remove the parts in the order listed
For installation, reverse the order
listed
