Electrical
6-8

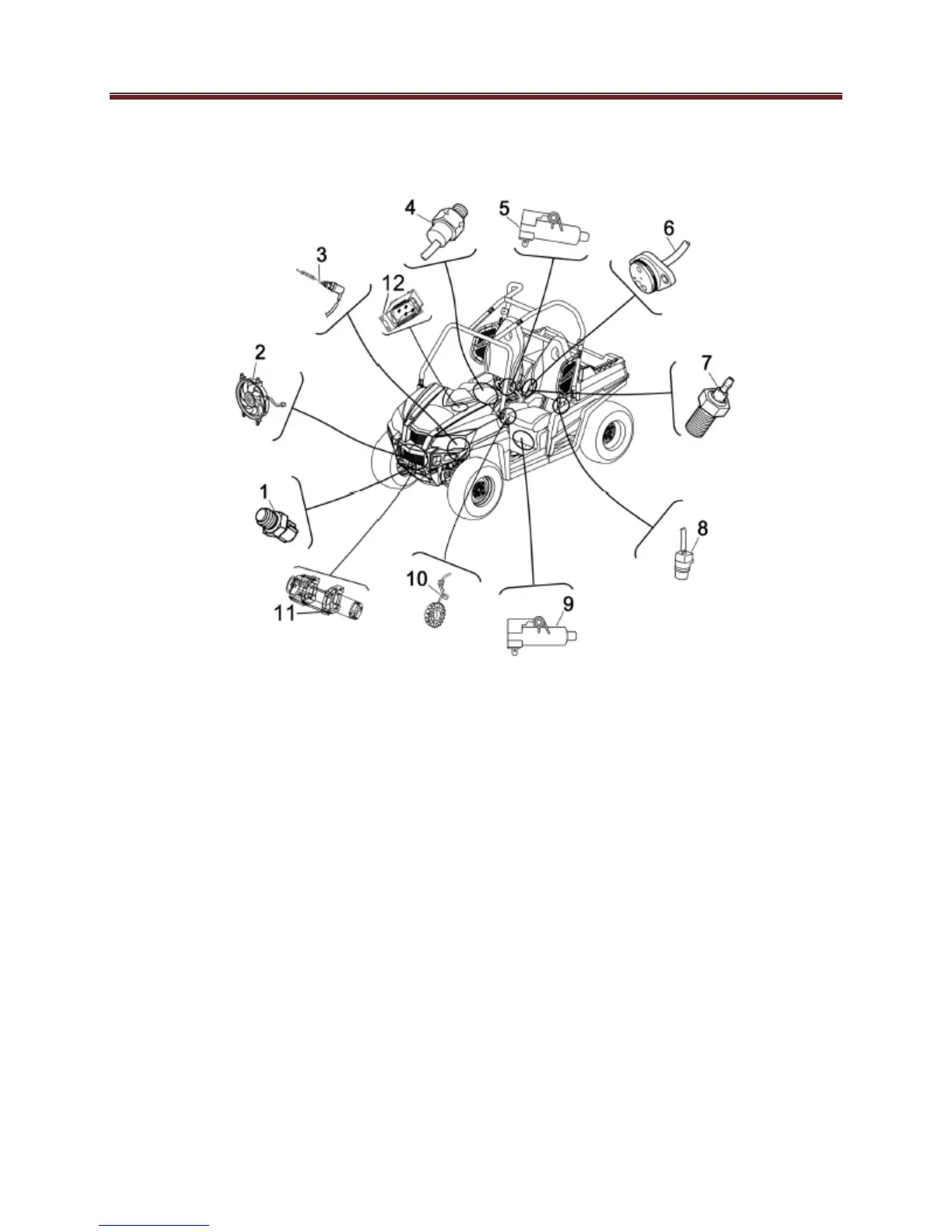

Electrical Components
1. Thermo switch 2
2. Radiator fan
3. Brake light switch
4. Thermo switch 1
5. Ignition coil 1
6. Gear position switch
7. Reverse switch
8. Speed sensor
9. Ignition coil 2
10. Stator assembly
11. Winch
12. Winch controller
