1 - 12

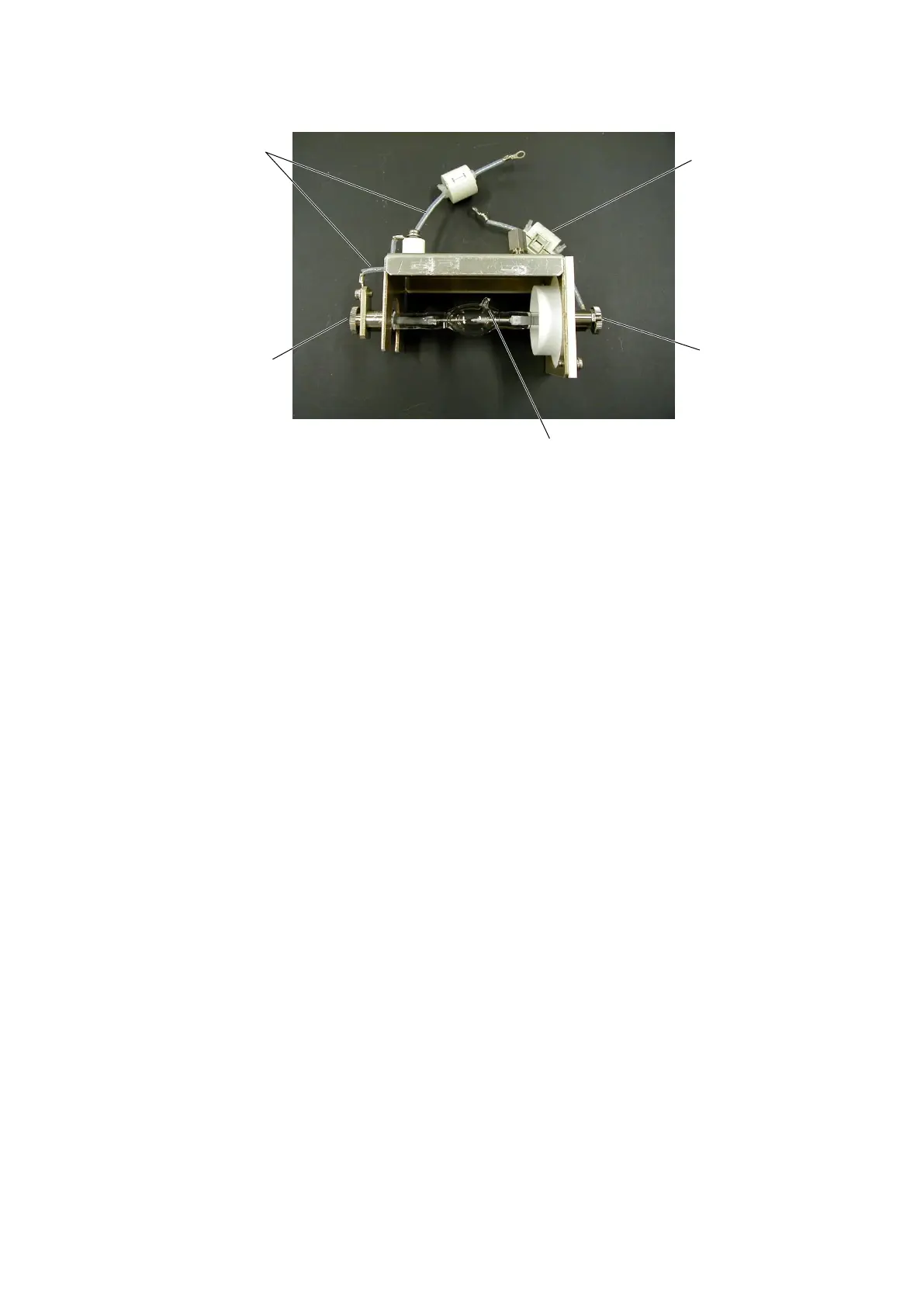

Fig. 1-11 Mounting of Xenon Lamp
Secure the anode and cathode nuts so they will not loosen.
(5) Attach the lamp holder to the instrument by reversing the foregoing steps (2) to (4).
Be careful not to insert the lamp holder retaining screw (② in Fig. 1-8) at a slant when attaching the
lamp holder.
Cathode (-) side
Cathode cord
Anode cord
Anode (+) side
(with mark)
Mount lamp so that projection is
located as shown in figure.
