1 - 11

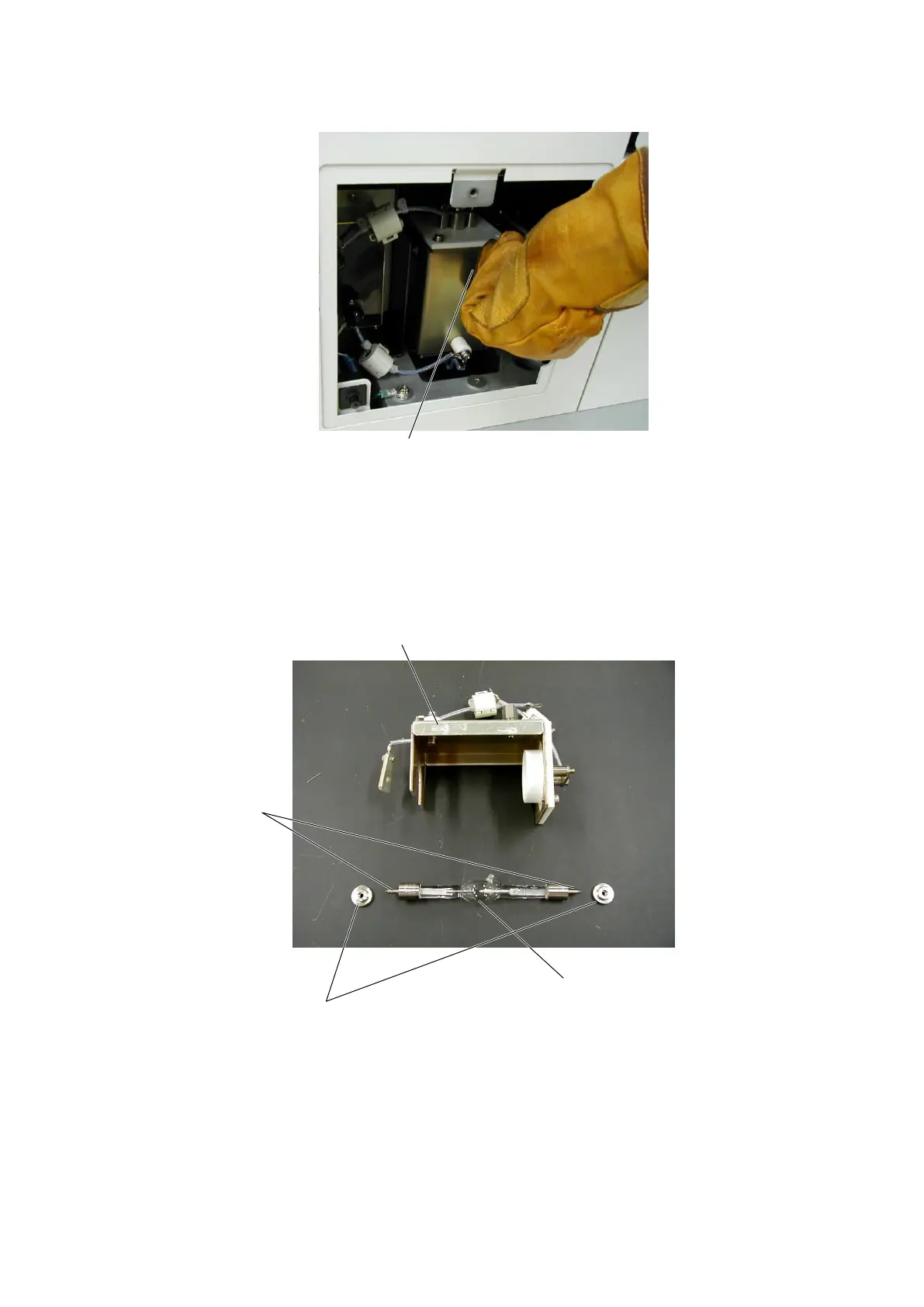

Fig. 1-9 Removal of Lamp Holder (2)
(4) Mount the xenon lamp in the lamp holder according to Figs. 1-10 and 1-11.
Fig. 1-10 Lamp Holder
③ Grasp top of lamp holder
then lift up and pull it out.
Electrodes
Lamp holder
Xenon lamp
Nuts supplied with
xenon lamp
