(1) Observing the above cautious instructions, replace the xenon lamp in the following procedure.
(2) Disconnect the power cord from the connector block of the main unit. (Refer to Fig. 4-2.)
The light source compartment cover cannot be removed with the cord connected to the connector
block.

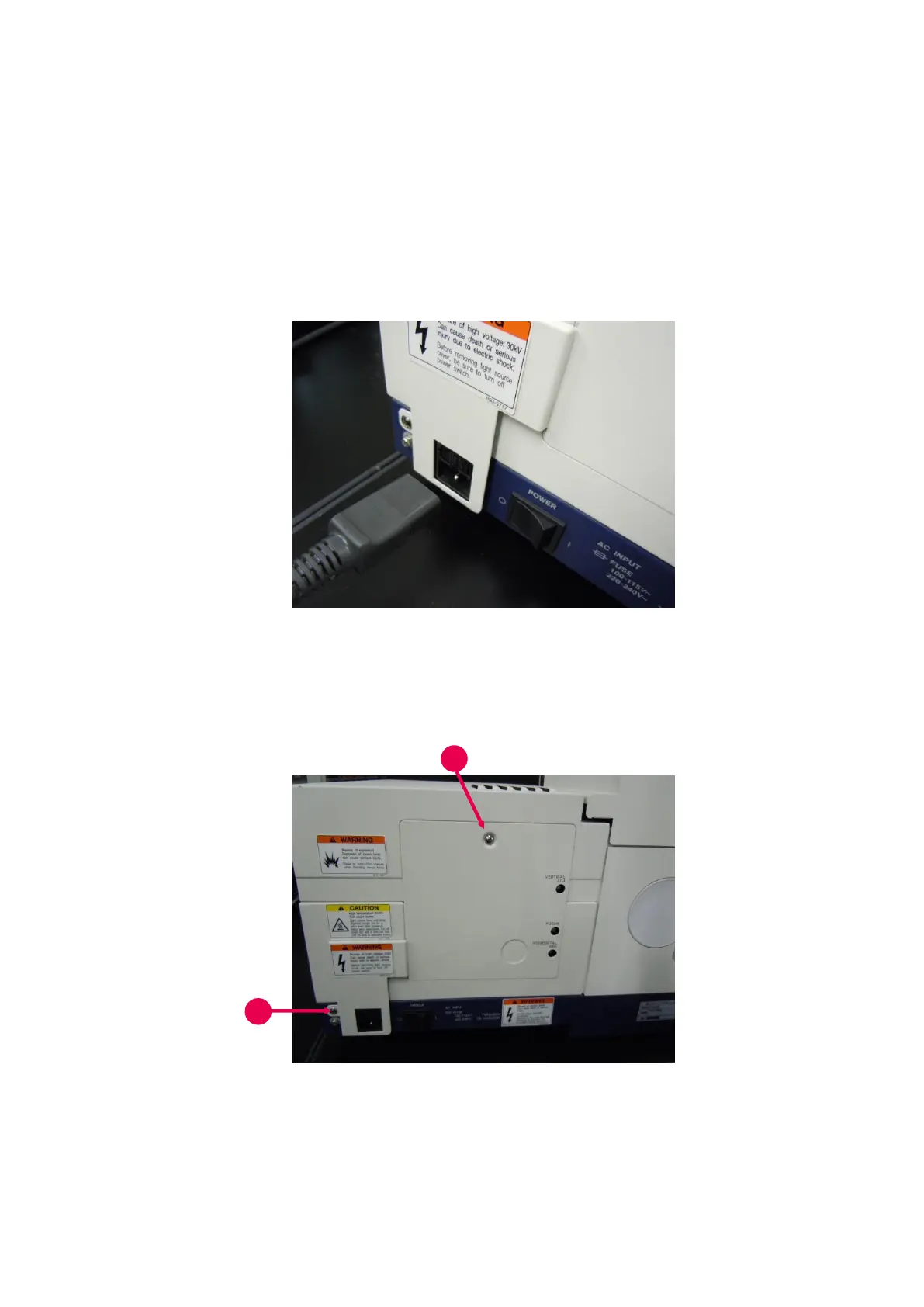

Fig. 4-2 Disconnection of Power Cord
(3) Remove the two screws retaining the light source compartment cover located at the left side of the
main unit. (Refer to ① and ② in Fig. 4-3.)
Fig. 4-3 Light Source Compartment Cover
