(4) Detach the light source compartment cover by pulling it up.
(5) Before proceeding to lamp replacement, wear proper protective gear such as safety mask, thick long
sleeves and gloves.
(6) Remove the high voltage terminal screw at the anode cord side by turning it by hand. (Refer to ③
in Fig. 4-4.)
This terminal screw is provided with an insulating stopper to prevent it from dropping out.
(7) Remove the high voltage terminal screw at the cathode cord side by turning it by hand. (Refer to
④ in Fig. 4-4.)

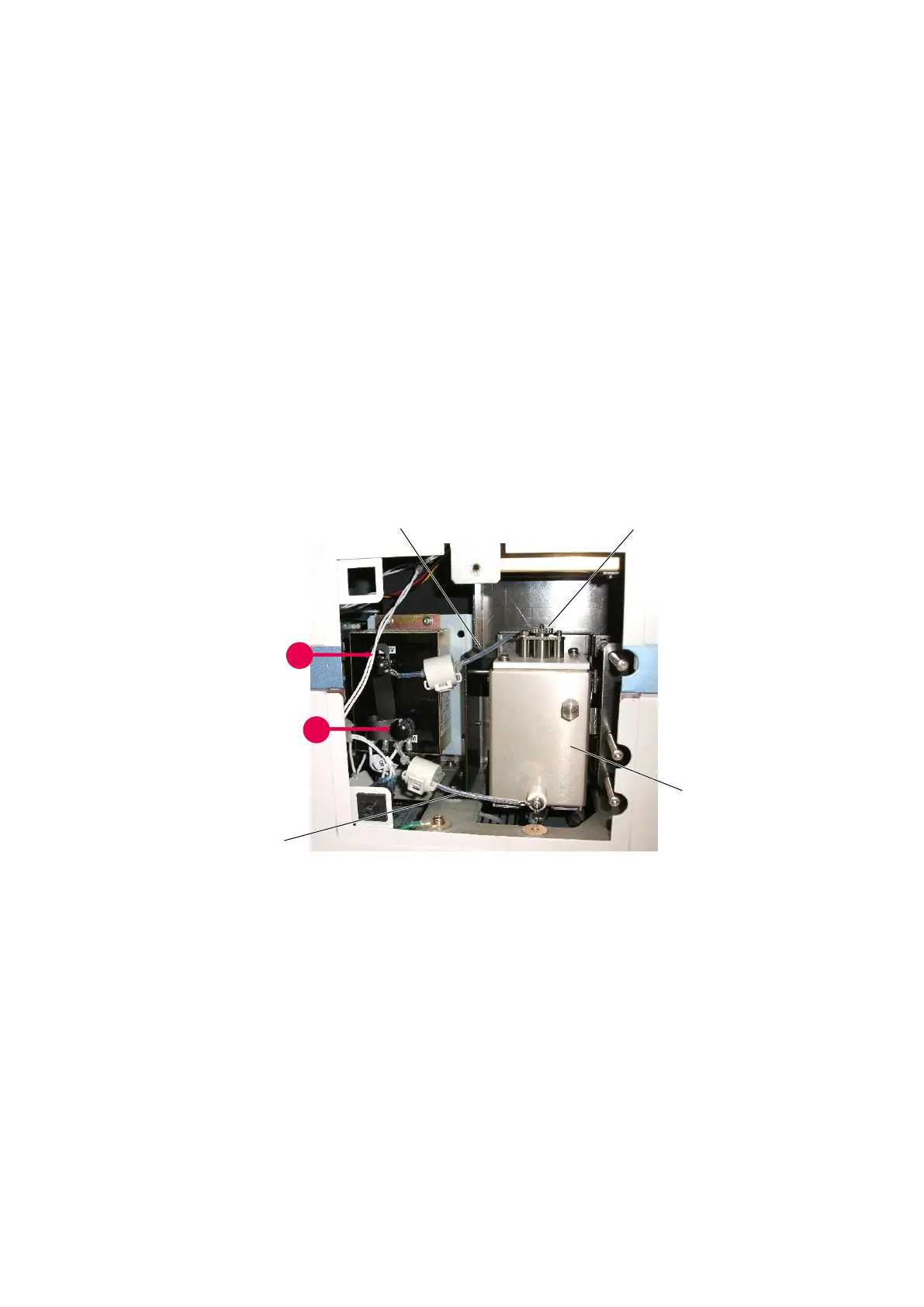

Fig. 4-4 Removal of Lamp Holder (1)
