4 - 7

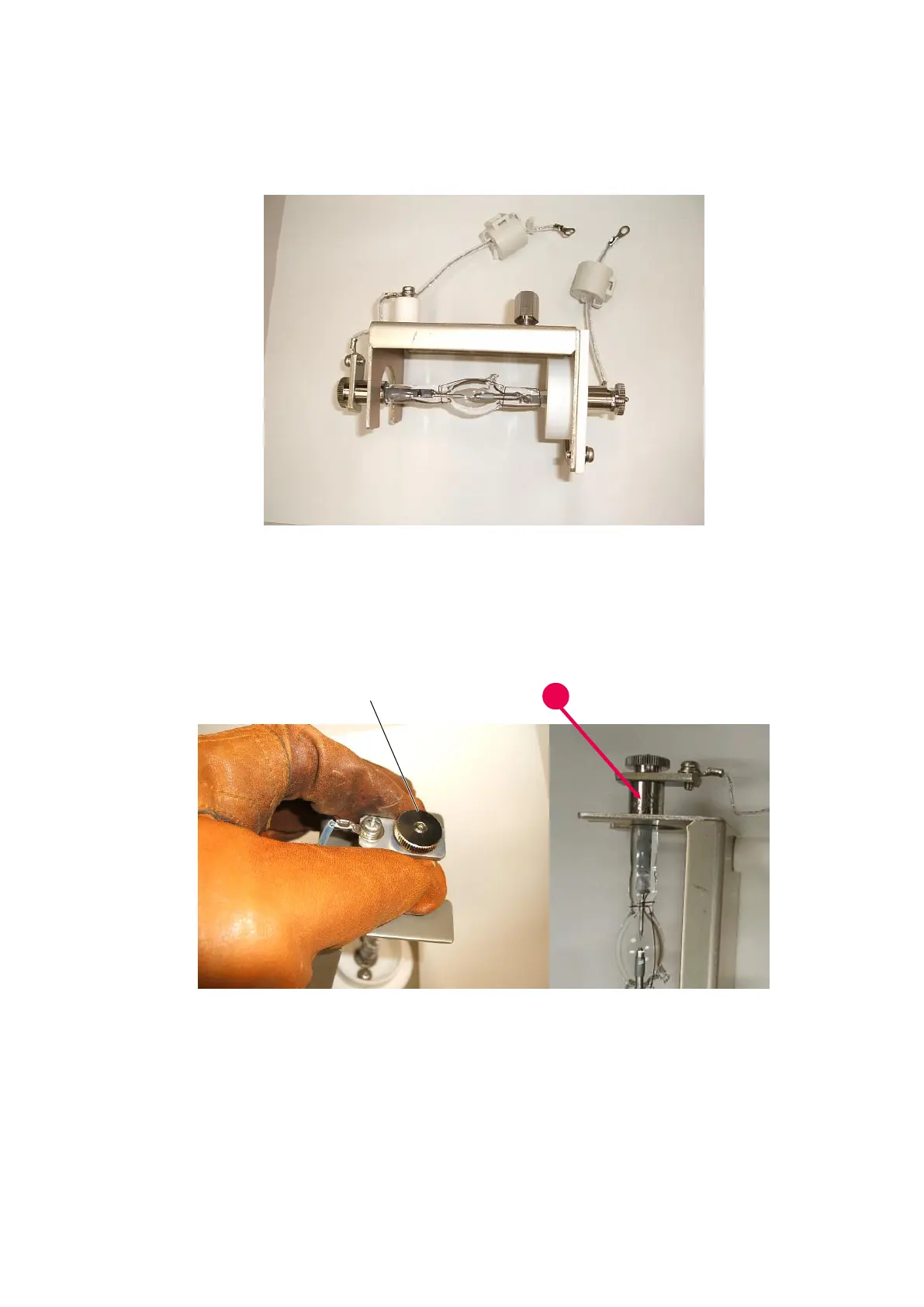

(10) Place the removed lamp holder on a flat and clean table, and proceed to detaching the xenon lamp.
Fig. 4-7
(11) Remove the nut from the cathode side of the xenon lamp while holding its metal part (refer to ⑦ in
Fig. 4-8) by hand.
Fig. 4-8
7
Nut
