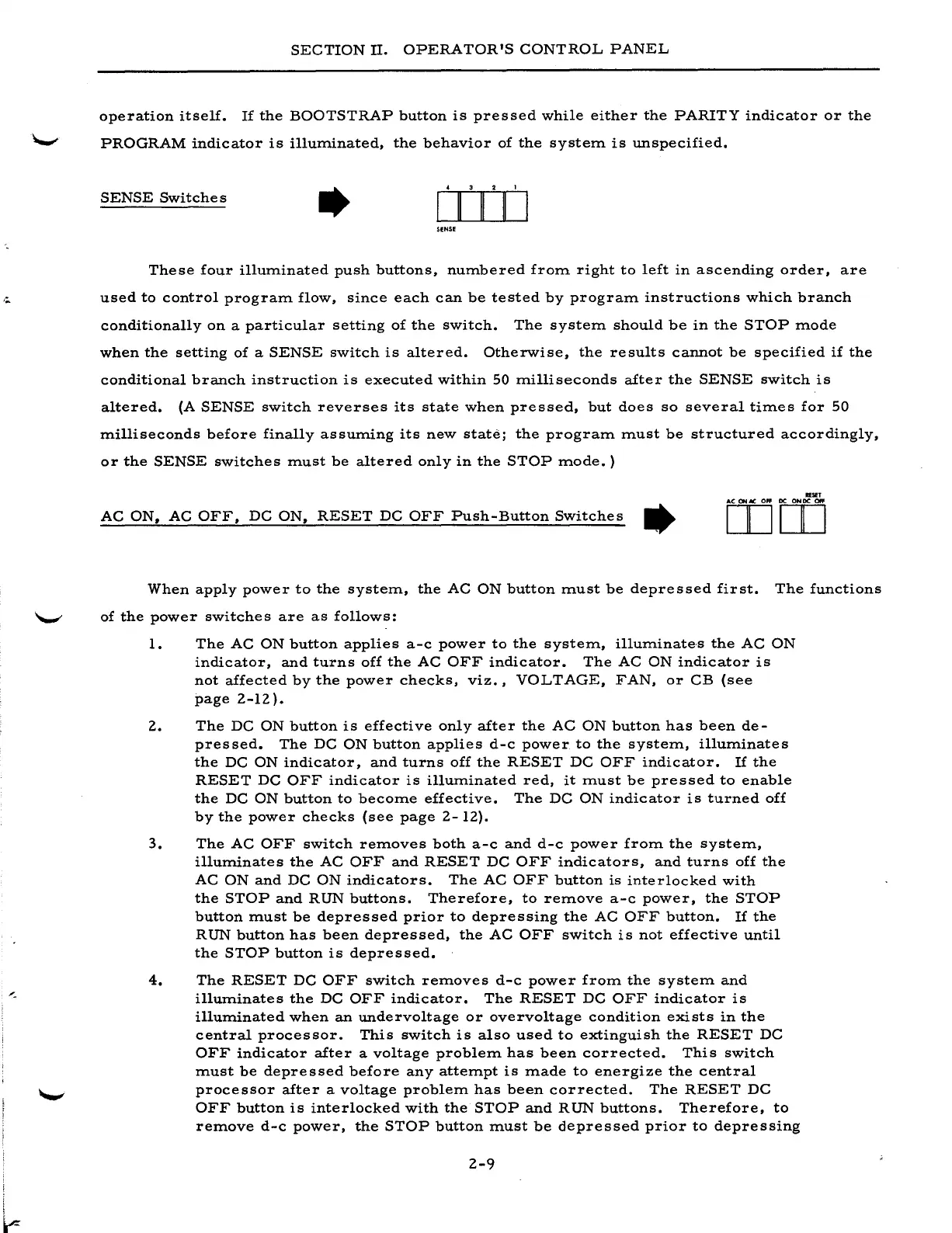

SECTION
II.
OPERATOR'S
CONTROL
PANEL
operation
itself.
If
the
BOOTSTRAP
button
is
pressed
while
either
the
PARITY
indicator
or
the
PROGRAM
indicator
is
illuminated,
the
behavior
of
the
system
is
unspecified.
SENSE
Switches
SENSE
These
four
illuminated
push
buttons,
numbered
from
right
to
left
in
ascending
order,
are
used
to
control
program
flow,
since
each
can
be
tested
by
program
instructions
which
branch
conditionally
on
a
particular
setting
of
the
switch.
The
system
should
be
in
the
STOP
mode
when
the
setting
of
a
SENSE
switch
is
altered.
Otherwise,
the
results
cannot
be
specified
if
the
conditional
branch
instruction
is
executed
within
50
milliseconds
after
the
SENSE
switch
is
altered.
(A
SENSE
switch
reverses
its
state
when
pressed,
but
does
so
several
times
for
50
milliseconds
before
finally
assuming
its
new
state;
the
program
must
be
structured
accordingly,
or
the
SENSE
switches
must
be
altered
only
in
the
STOP
mode.
)
If
...
AC
ON,
AC
OFF,
DC
ON,
RESET
DC
OFF
Push-Button
Switches
rom
When
apply
power
to
the
system,
the
AC
ON
button
must
be
depressed
first.
The
functions
of
the
power
switches
are
as
follows:
1.
The
AC
ON
button
applies
a-c
power
to
the
system,
illuminate-s
the
AC
ON
indicator,
and
turns
off
the
AC
OFF
indicator.
The
AC
ON
indicator
is
not
affected
by
the
power
checks,
viz.,
VOLTAGE,
FAN,
or
CB
(see
page
2-12).
2.
The
DC
ON
button
is
effective
only
after
the
AC
ON
button
has
been
de-
pressed.
The
DC
ON
button
applies
d-c
power
to
the
system,
illuminates
the
DC
ON
indicator,
and
turns
off
the
RESET
DC
OFF
indicator.
If
the
RESET
DC
OFF
indicator
is
illuminated
red,
it
must
be
pressed
to
enable
the
DC
ON
button
to
become
effective.
The
DC
ON
indicator
is
turned
off
by
the
power
checks
(see
page
2-
12).
3.
The
AC
OFF
switch
removes
both
a-c
and
d-c
power
from
the
system,
illuminates
the
AC
OFF
and
RESET
DC
OFF
indicators,
and
turns
off
the
AC
ON
and
DC
ON
indicators.
The
AC
OFF
button
is
interlocked
with
4.
the
STOP
and
RUN
buttons.
Therefore,
to
remove
a-c
power,
the
STOP
button
must
be
depressed
prior
to
depressing
the
AC
OFF
button.
If
the
RUN
button
has
been
depressed,
the
AC
OFF
switch
is
not
effective
until
the
STOP
button
is
depressed.
The
RESET
DC
OFF
switch
removes
d-c
power
from
the
system
and
illuminates
the
DC
OFF
indicator.
The
RESET
DC
OFF
indicator
is
illuminated
when
an
undervoltage
or
overvoltage
condition
exists
in
the
central
processor.
This
switch
is
also
used
to
extinguish
the
RESET
DC
OFF
indicator
after
a
voltage
problem
has
been
corrected.
This
switch
must
be
depressed
before
any
attempt
is
made
to
energize
the
central
processor
after
a
voltage
problem
has
been
corrected.
The
RESET
DC
OFF
button
is
interlocked
with
the
STOP
and
RUN
buttons.
Therefore,
to
remove
d-c
power,
the
STOP
button
must
be
depressed
prior
to
depressing
2-9
