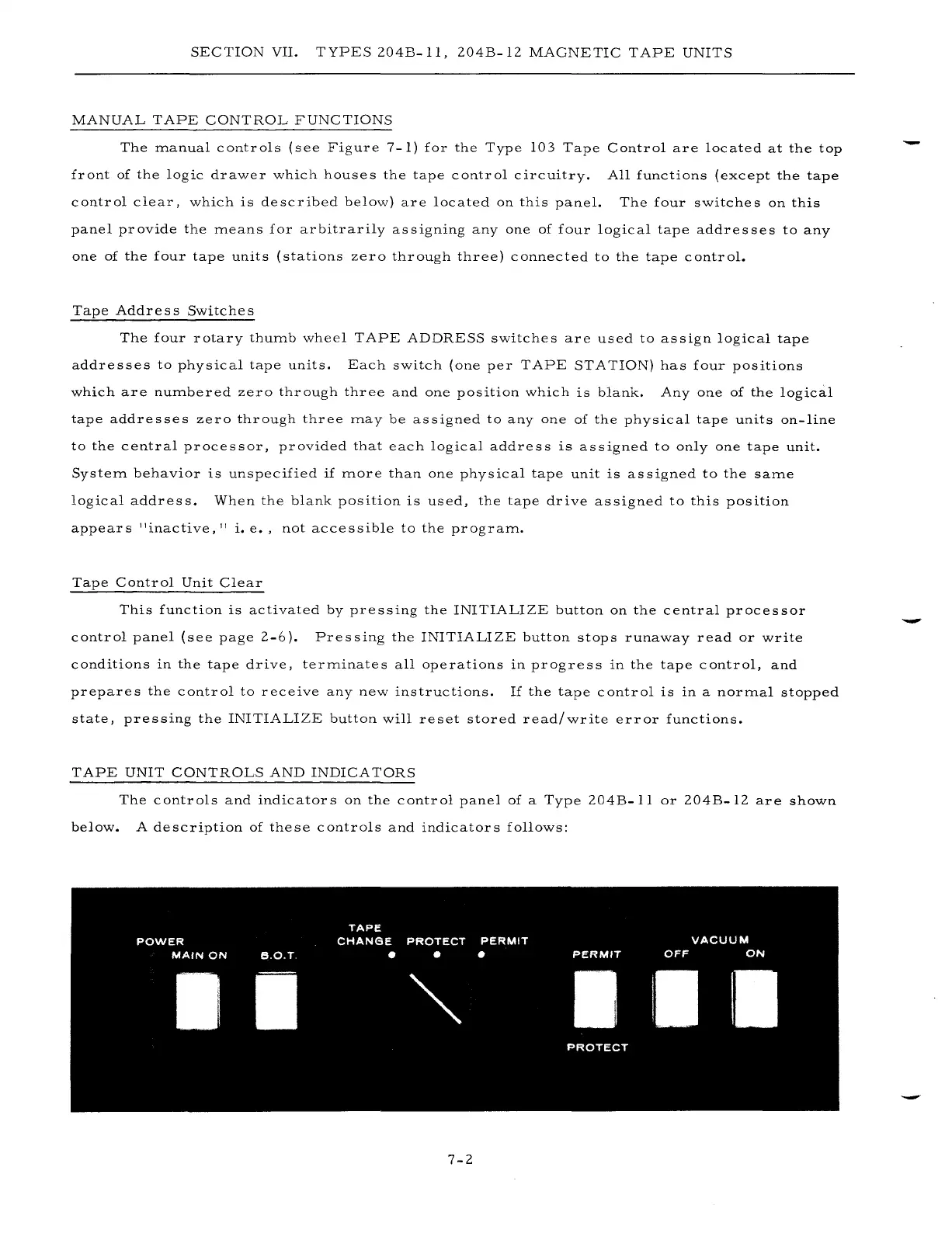

SECTION
VII.
TYPES
204B-ll,
204B-12
MAGNETIC
TAPE
UNITS
MANUAL
TAPE
CONTROL
FUNCTIONS
The
manual
controls
(see
Figure
7-1)
for
the
Type
103
Tape
Control
are
located
at
the
top
front
of
the
logic
drawer
which
houses
the
tape
control
circuitry.
All
functions
(except
the
tape
control
clear,
which
is
described
below)
are
located
on
this
panel.
The
four
switches
on
this
panel
provide
the
means
for
arbitrarily
assigning
anyone
of
four
logical
tape
addresses
to
any
one
of
the
four
tape
units
(stations
zero
through
three)
connected
to
the
tape
control.
Tape
Address
Switches
The
four
rotary
thumb
wheel
TAPE
ADDRESS
switches
are
used
to
assign
logical
tape
addresses
to
physical
tape
units.
Each
switch
(one
per
TAPE
STATION)
has
four
positions
which
are
numbered
zero
through
three
and
one
position
which
is
blank.
Anyone
of
the
logical
tape
addresses
zero
through
three
may
be
assigned
to
anyone
of
the
physical
tape
units
on-line
to
the
central
processor,
provided
that
each
logical
address
is
assigned
to
only
one
tape
unit.
System
behavior
is
unspecified
if
more
than
one
physical
tape
unit
is
assigned
to
the
same
logical
address.
When
the
blank
position
is
used,
the
tape
drive
assigned
to
this
position
appears
"inactive,"
i.
e.,
not
accessible
to
the
program.
Tape
Control
Unit
Clear
This
function
is
activated
by
pressing
the
INITIALIZE
button
on
the
central
processor
control
panel
(see
page
2-6).
Pressing
the
INITIALIZE
button
stops
runaway
read
or
write
conditions
in
the
tape
drive,
terminates
all
operations
in
progress
in
the
tape
control,
and
prepares
the
control
to
receive
any
new
instructions.
If
the
tape
control
is
in
a
normal
stopped
state,
pressing
the
INITIALIZE
button
will
reset
stored
read/write
error
functions.
TAPE
UNIT
CONTROLS
AND
INDICA
TORS
The
controls
and
indicators
on
the
control
panel
of
a
Type
204B-ll
or
204B-12
are
shown
below.
A
description
of
these
controls
and
indicators
follows:
7-2
-
