SECTION VI. TYPE 122 PRINTER
Different tapes must be used for either six- or eight-lines-per-inch printing, with the
exception noted in the operating procedure s on page 6 -15. The vertical format tape in the
Type 122 enables the program to print and space, print without spacing, 0 r space without printing

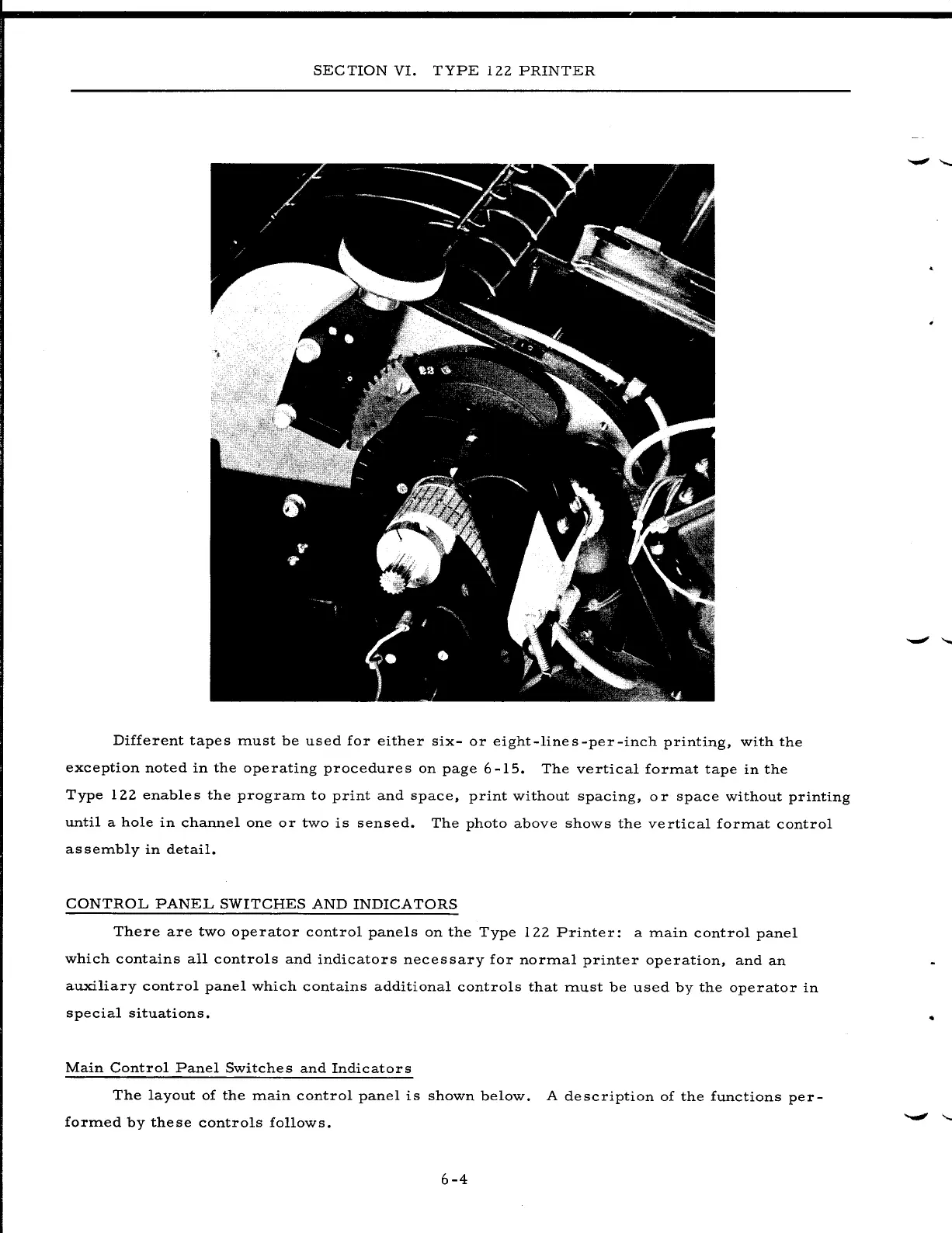

until a hole in channel one or two is sensed. The photo above shows the vertical format control
assembly in detail.
CONTROL PANEL SWITCHES AND INDICATORS
There are two operator control panels on the Type 122 Printer: a main control panel
which contains all controls and indicators necessary for normal printer operation, and an
auxiliary control panel which contains additional controls that must be used by the operator in
special situations.
Main Control Panel Switches and Indicators
The layout of the main control panel is shown below.
formed by these controls follows.
6-4
A description of the functions per-
