SECTION III. TYPE 123 CARD READER
NOTE: A POWER indication can be corrected by the
operator by resetting a circuit breaker.
Corrective action by a service engineer is re-
quired in the case of a PICKER or HEAT indication.
Auxiliary Control Panel Switches
The switches described below are toggle switches which may be in either of two positions.
NOTE: The auxiliary control panel (see Figure 3-2) is not normally
used by the operator.
NORM
~
CONT
~
PI eKE R
0
HEAT
0
PO WER
0

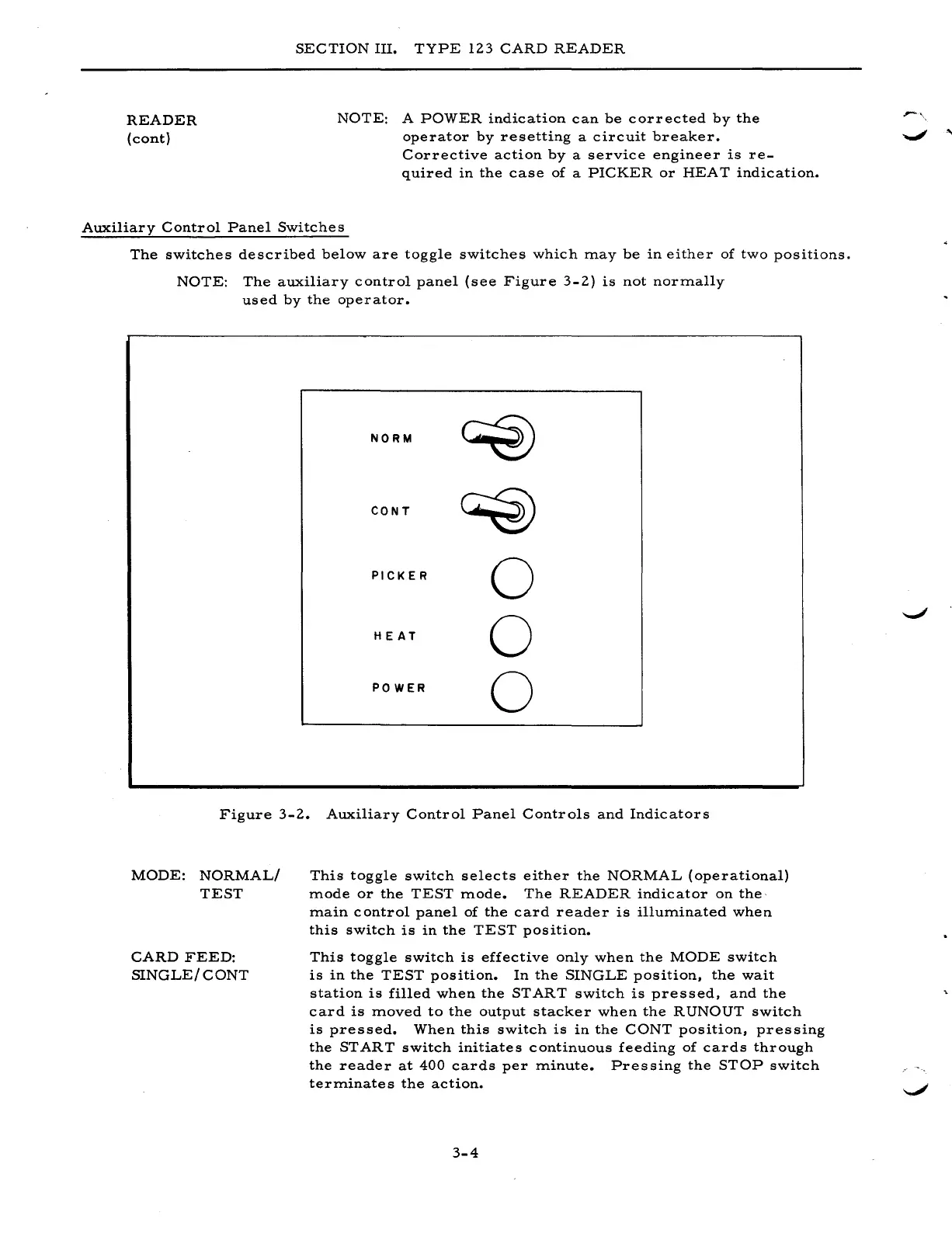

Figure 3-2. Auxiliary Control Panel Controls and Indicators
MODE: NORMAL! This toggle switch selects either the NORMAL (operational)
TEST mode or the TEST mode. The READER indicator on the
main control panel of the card reader is illuminated when
this switch is in the TEST position.
CARD FEED:
SINGLE! CONT
This toggle switch is effective only when the MODE switch
is in the TEST position. In the SINGLE position, the wait
station is filled when the START switch is pressed, and the
card is moved to the output stacker when the RUNOUT switch
is pressed. When this switch is in the CONT position, pressing
the START switch initiates continuous feeding of cards through
the reader at 400 cards per minute. Pressing the STOP switch
terminates the action.
