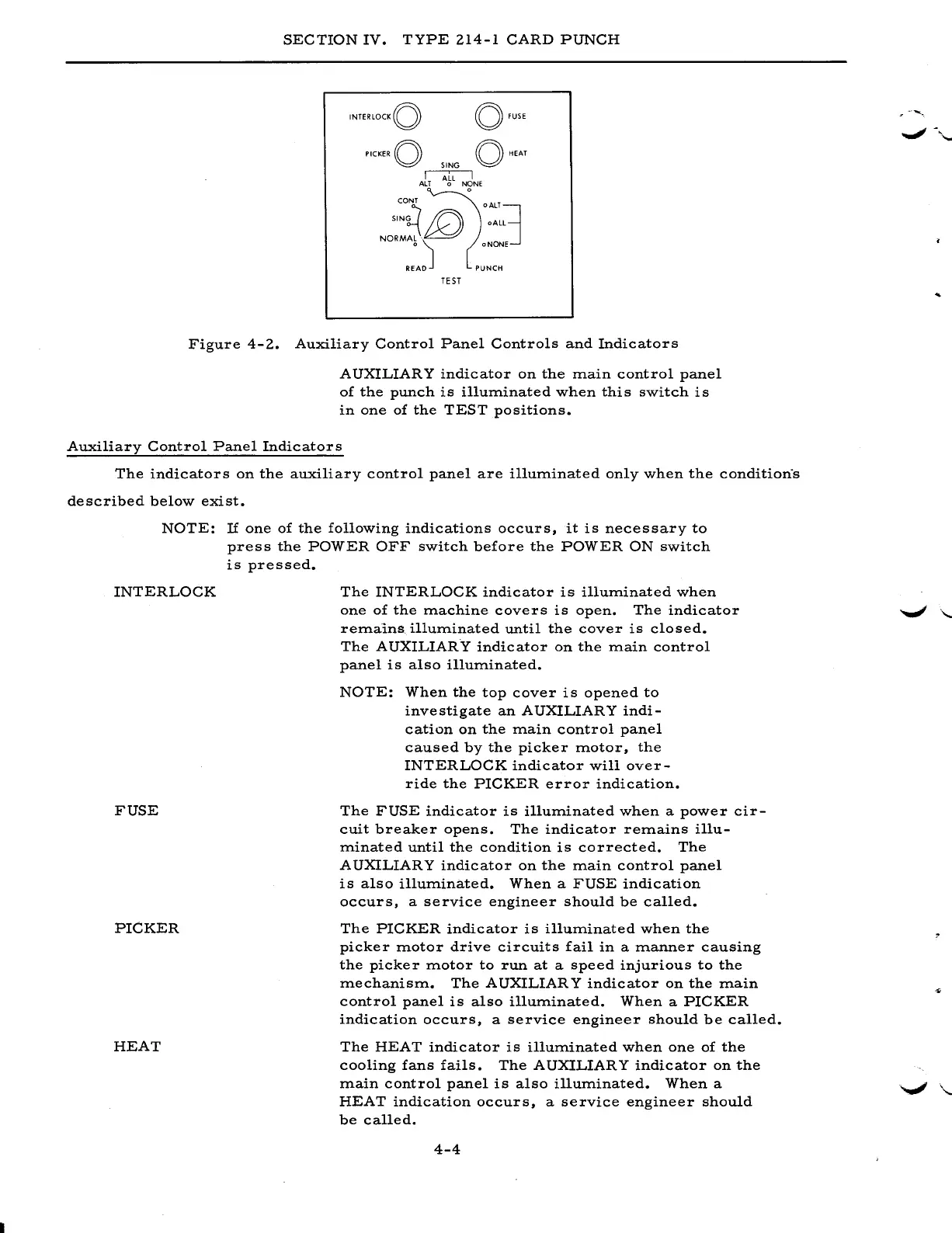

SECTION IV. TYPE 214-1 CARD PUNCH
INTERlOCKO
o FUSE
PICKER 0 0 HEAT
SING
r-::;Ill
,:'~'&)f2T 0 N~NEO:::J
NORMAh \ ONON-EJ
READ J PUNCH
TEST
Figure 4-2. Auxiliary Control Panel Controls and Indicators
AUXILIARY indicator on the main control panel
of the punch is illuminated when this switch is
in one of the TEST positions.
Auxiliary Control Panel Indicators
The indicators on the auxiliary control panel are illuminated only when the condition-s
described below exist.
NOTE: If one of the following indications occurs, it is necessary to
press the POWER OFF switch before the POWER ON switch
is pressed.
INTERLOCK The INTERLOCK indicator is illuminated when
one of the machine covers is open. The indicator
remaIns. illuminated until the cover is closed.
FUSE
PICKER
HEAT
The AUXILIARY indicator on the main control
panel is also illuminated.
NOTE: When the top cover is opened to
investigate an AUXILIARY indi-
cation on the main control panel
caused by the picker motor, the
INTERLOCK indicator will over-
ride the PICKER error indication.
The FUSE indicator is illuminated when a power cir-
cuit breaker opens. The indicator remains illu-
minated until the condition is corrected. The
A UXILIAR Y indicator on the main control panel
is also illuminated. When a FUSE indication
occurs, a service engineer should be called.
The PICKER indicator is illuminated when the
picker motor drive circuits fail in a manner causing
the picker motor to run at a speed injurious to the
mechanism. The AUXILIAR Y indicator on the main
control panel is also illuminated. When a PICKER
indication occurs, a service engineer should be called.
The HEAT indicator is illuminated when one of the
cooling fans fails. The AUXILIARY indicator on the
main control panel is also illuminated. When a
HEAT indication occurs, a service engineer should
be called.
