SECTION V. TYPE 214-2 CARD READER/PUNCH
AUXILIARY
(cont)
TEST mode. The nature of the failure is indicated on the
auxiliary control panel, i. e., FUSE, PICKER, HEAT or
INTERLOCK.
NOTE: An INTERLOCK indication may be corrected
by the operator by making certain that all
machine covers are in place. Corrective
action by a service engineer is required in
the case of a POWER, PICKER, or HEAT
indication.
Auxiliary Control Panel Switch
The switch described below is a rotary switch which may be in anyone of nine positions.
NOTE: The auxiliary control panel (see Figure 5-2) is not normally
used by the operator.
INTERlOCKO
TEST

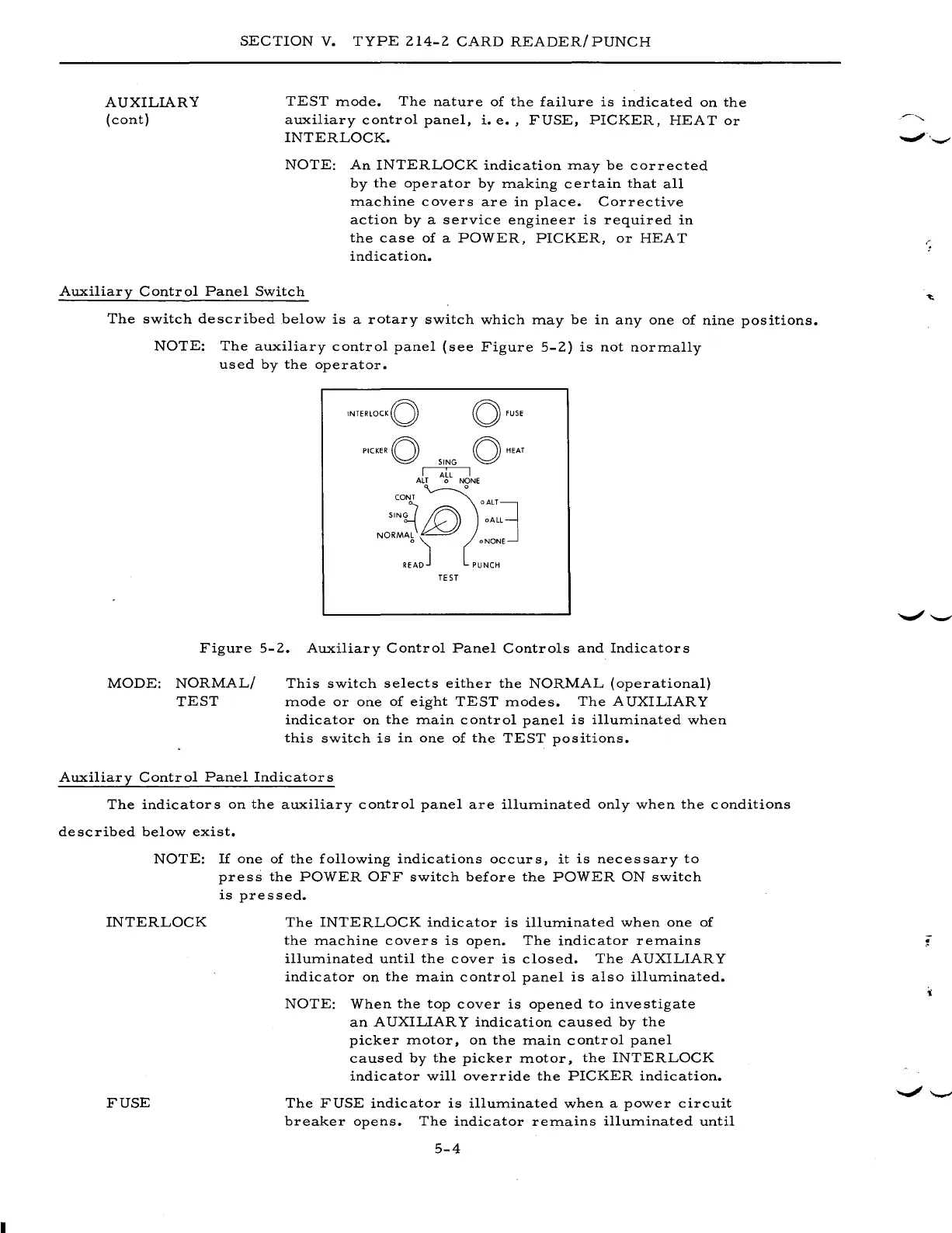

Figure 5-2. Auxiliary Control Panel Controls and Indicators
MODE: NORMAL/
TEST
This switch selects either the NORMAL (operational)
mode or one of eight TEST modes. The AUXILIARY
indicator on the main control panel is illuminated when
this switch is in one of the TEST positions.
Auxiliary Control Panel Indicators
The indicators on the auxiliary control panel are illuminated only when the conditions
described below exist.
NOTE: If one of the following indications occurs, it is necessary to
press the POWER OFF switch before the POWER ON switch
is pressed.
INTERLOCK The INTERLOCK indicator is illuminated when one of
the machine covers is open. The indicator remains
illuminated until the cover is closed. The AUXILIARY
indicator on the main control panel is also illuminated.
FUSE
NOTE: When the top cover is opened to investigate
an AUXILIARY indication caused by the
picker motor, on the main control panel
caused by the picker motor, the INTERLOCK
indicator will override the PICKER indication.
The FUSE indicator is illuminated when a power circuit
breaker opens. The indicator remains illuminated until
5-4
