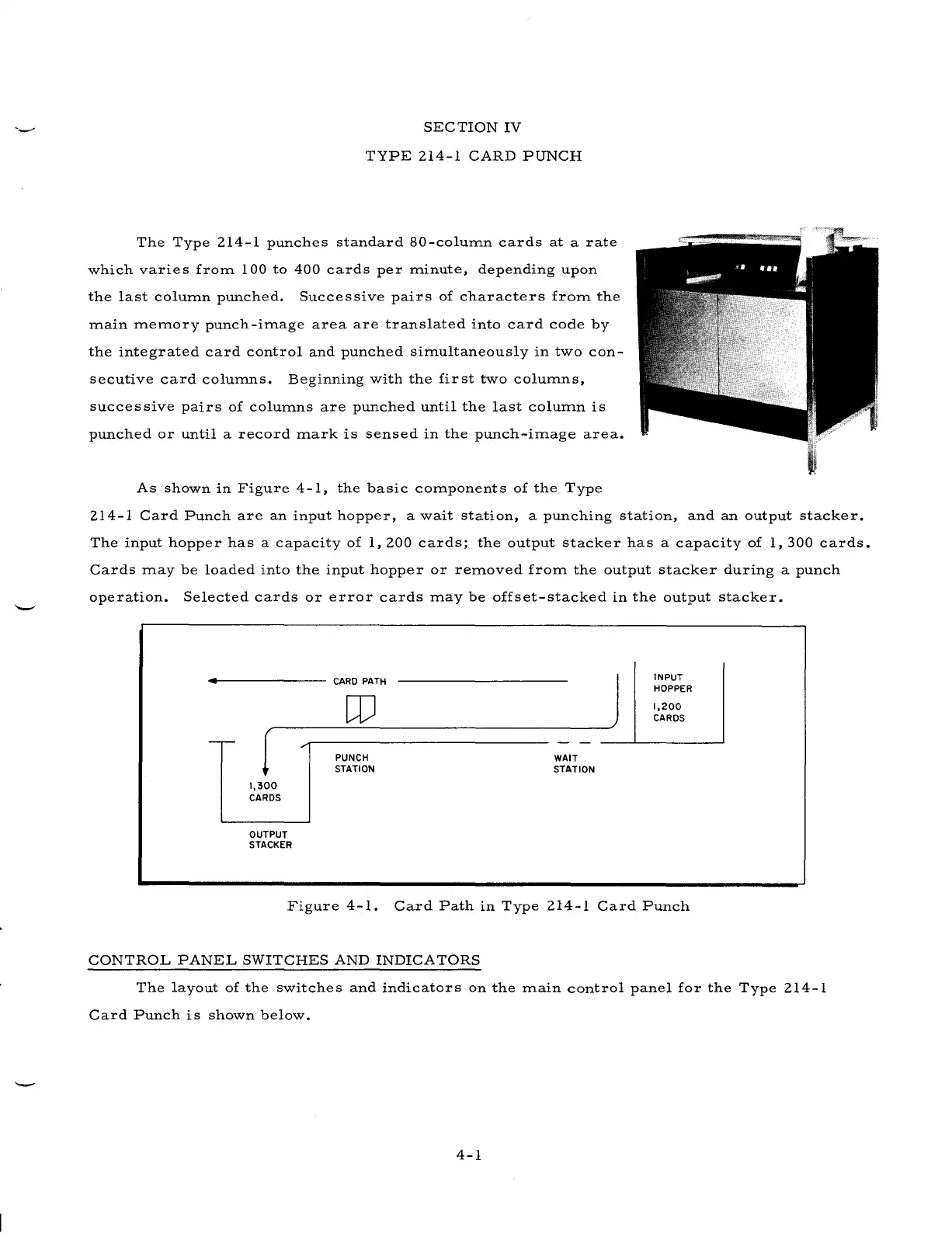

SECTION
IV
TYPE
214-1
CARD
PUNCH
The
Type
214-1
punches
standard
80-colurrm
cards
at
a
rate
which
varies
froITl
100
to
400
cards
per
ITlinute,
depending
upon
the
last
coluITln
punched.
Successive
pairs
of
characters
frOITl
the
ITlain
ITleITlory
punch-iITlage
area
are
translated
into
card
code
by
the
integrated
card
control
and
punched
siITlultaneously
in
two
con-
secutive
card
colurrms.
Beginning
with
the
first
two
coluITlns,
successive
pairs
of
coluITlns
are
punched
until
the
last
coluITln
is
punched
or
until
a
record
ITlark
is
sensed
in
the
punch-iITlage
area.
As
shown
in
Figure
4-1,
the
basic
cOITlponents
of
the
Type
214-1
Card
Punch
are
an
input
hopper,
a
wait
station,
a
punching
station,
and
an
output
stacker.
The
input
hopper
has
a
capacity
of
1,200
cards;
the
output
stacker
has
a
capacity
of
1,300
cards.
Cards
ITlay
be
loaded
into
the
input
hopper
or
reITloved
froITl
the
output
stacker
during
a
punch
operation.
Selected
cards
or
error
cards
ITlay
be
offset-stacked
in
the
output
stacker.
..
CARD
PATH
INPUT
HOPPER
CD
1,200
CARDS
--
-
-
PUNCH
WAIT
STATION
STATION
1,300
CARDS
OUTPUT
STACKER
Figure
4-1.
Card
Path
in
Type
214-1
Card
Punch
CONTROL
PANEL
SWITCHES
AND
INDICA
TORS
The
layout
of
the
switches
and
indicators
on
the
ITlain
control
panel
for
the
Type
214-1
Card
Punch
is
shown
below.
4-1
