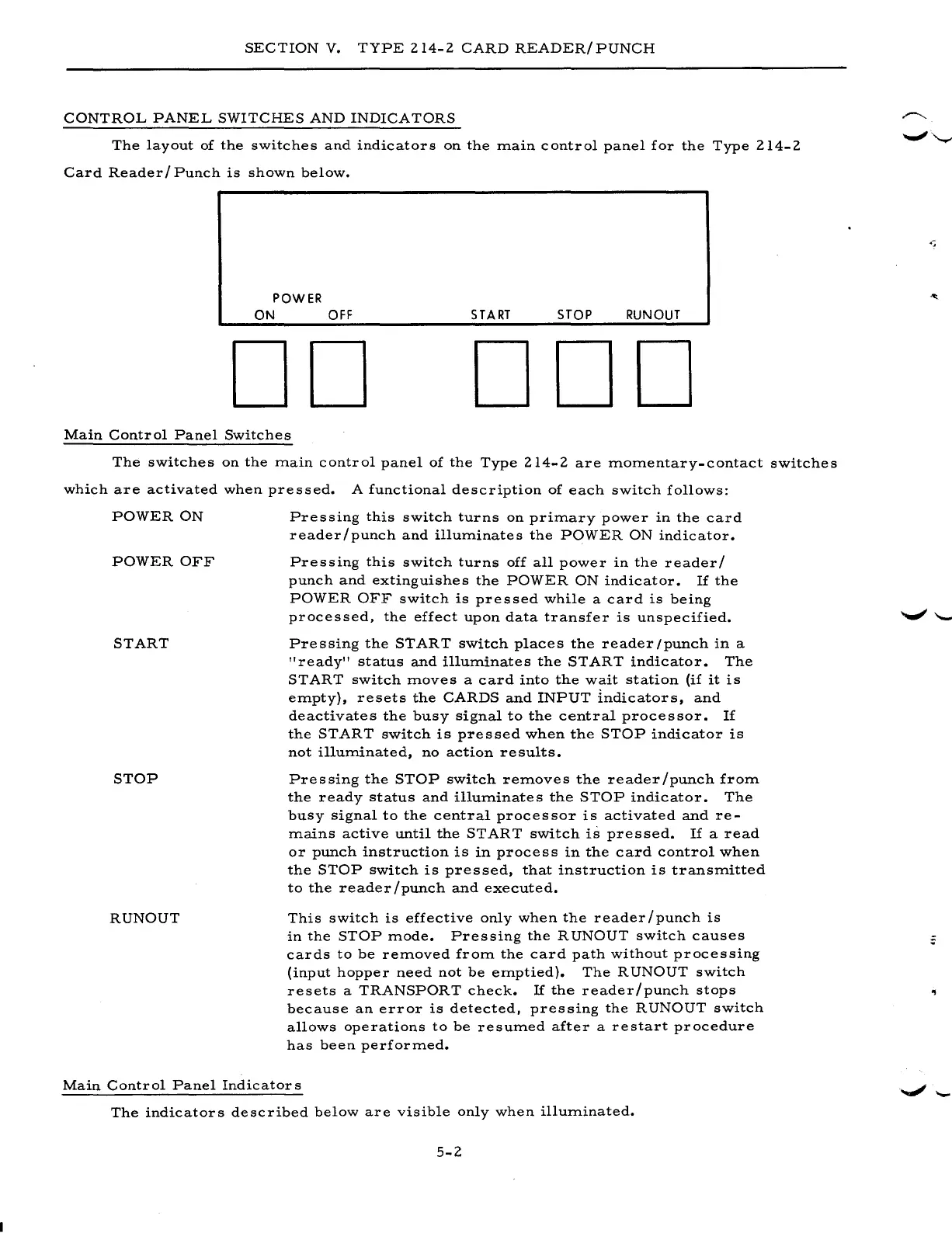

I
SECTION
V.
TYPE
214-2
CARD
READER/PUNCH
CONTROL
PANEL
SWITCHES
AND
INDICATORS
The
layout
of
the
switches
and
indicators
on
the
main
control
panel
for
the
Type
214-2
Card
Reader/Punch
is
shown
below.
POWER
ON
OFF
START
STOP
RUNOUT
DD
DDD
Main
Control
Panel
Switches
The
switches
on
the
main
control
panel
of
the
Type
214-2
are
ITlOmentary-contact
switches
which
are
activated
when
pressed.
A
functional
description
of
each
switch
follows:
POWER
ON
POWER
OFF
START
STOP
RUNOUT
Pressing
this
switch
turns
on
primary
power
in
the
card
reader/punch
and
illuminates
the
POWER
ON
indicator.
Pressing
this
switch
turns
off
all
power
in
the
reader/
punch
and
extinguishes
the
POWER
ON
indicator.
If
the
POWER
OFF
switch
is
pressed
while
a
card
is
being
processed,
the
effect
upon
data
transfer
is
unspecified.
Pressing
the
START
switch
places
the
reader
/punch
in
a
"ready"
status
and
illuminates
the
START
indicator.
The
START
switch
moves
a
card
into
the
wait
station
(if
it
is
empty),
resets
the
CARDS
and
INPUT
indicators,
and
deactivates
the
busy
signal
to
the
central
processor.
If
the
START
switch
is
pressed
when
the
STOP
indicator
is
not
illuminated,
no
action
results.
Pressing
the
STOP
switch
removes
the
reader/punch
from
the
ready
status
and
illuminates
the
STOP
indicator.
The
busy
signal
to
the
central
processor
is
activated
and
re-
mains
active
until
the
START
switch
is
pre
s
sed.
If
a
read
or
punch
instruction
is
in
process
in
the
card
control
when
the
STOP
switch
is
pressed,
that
instruction
is
transmitted
to
the
reader
/punch
and
executed.
This
switch
is
effective
only
when
the
reader/punch
is
in
the
STOP
mode.
Pressing
the
RUNOUT
switch
causes
cards
to
be
removed
from
the
card
path
without
processing
(input
hopper
need
not
be
emptied).
The
RUNOUT
switch
resets
a
TRANSPORT
check.
If
the
reader/punch
stops
because
an
error
is
detected,
pressing
the
RUNOUT
switch
allows
operations
to
be
resumed
after
a
restart
procedure
has
been
performed.
Main
Control
Panel
Indicators
The
indicators
described
below
are
visible
only
when
illuminated.
5-2
