t
"I-
,

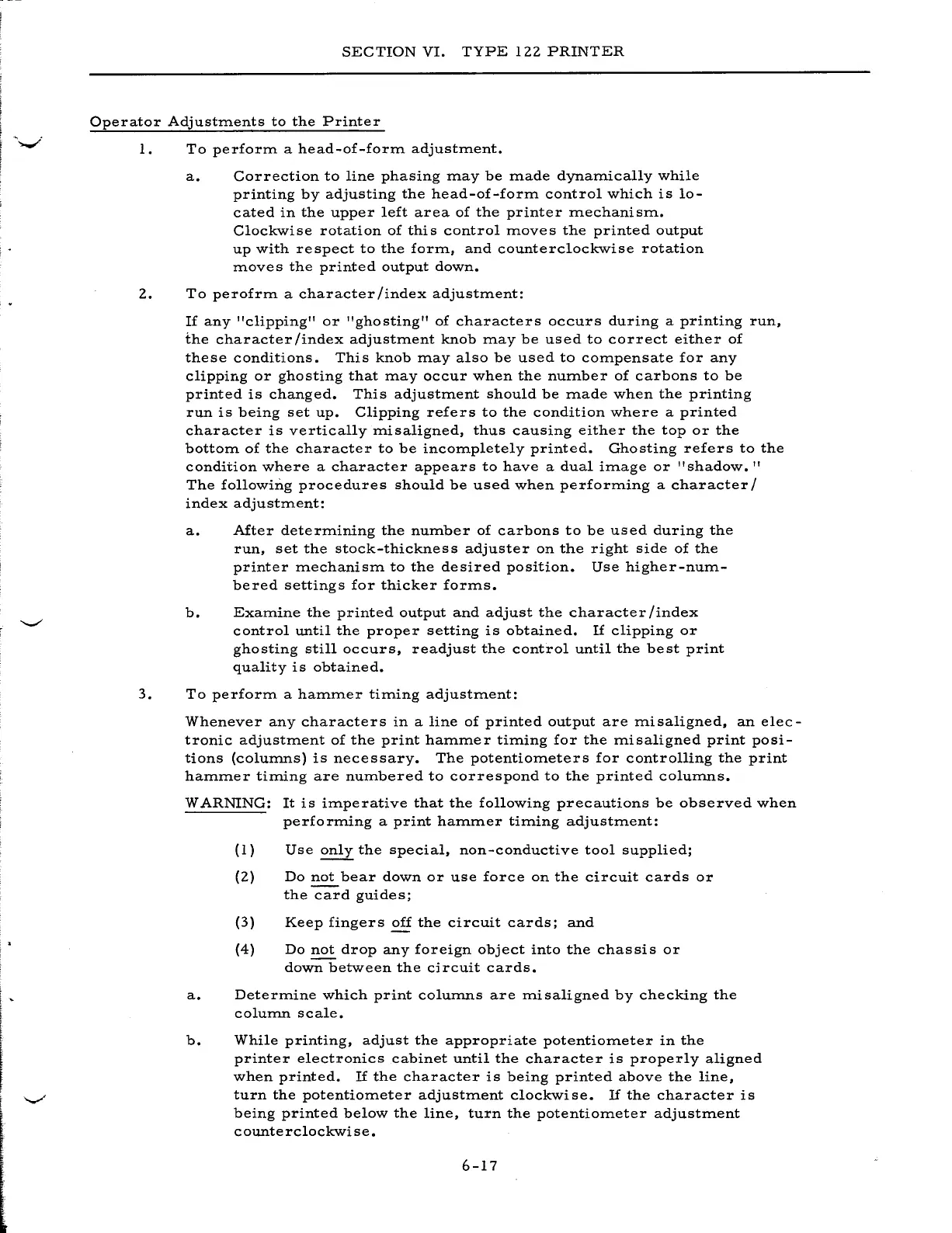

SECTION
VI.
TYPE
122
PRINTER
Operator
Adjustments
to
the
Printer
1.
To
perform
a
head-of-form
adjustment.
a.
Correction
to
line
phasing
may
be
made
dynamically
while
printing
by
adjusting
the
head-of-form
control
which
is
lo-
cated
in
the
upper
left
area
of
the
printer
mechanism.
Clockwise
rotation
of
this
control
moves
the
printed
output
up
with
respect
to
the
form,
and
counterclockwise
rotation
moves
the
printed
output
down.
2.
To
perofrm
a
character
/index
adjustment:
If
any
"clipping"
or
"ghosting"
of
characters
occurs
during
a
printing
run,
the
character
/index
adjustment
knob
may
be
used
to
correct
either
of
these
conditions.
This
knob
may
also
be
used
to
compensate
for
any
clipping
or
ghosting
that
may
occur
when
the
number
of
carbons
to
be
printed
is
changed.
This
adjustment
should
be
made
when
the
printing
run
is
being
set
up.
Clipping
refers
to
the
condition
where
a
printed
character
is
vertically
misaligned,
thus
causing
either
the
top
or
the
bottom
of
the
character
to
be
incompletely
printed.
Ghosting
refers
to
the
condition
where
a
character
appears
to
have
a
dual
or
"shadow.
"
The
following
procedures
should
be
used
when
performing
a
character
/
index
adjustment:
a.
After
determining
the
number
of
carbons
to
be
used
during
the
run,
set
the
stock-thickness
adjuster
on
the
right
side
of
the
printer
mechanism
to
the
desired
position.
Use
higher-num-
bered
settings
for
thicker
forms.
b.
Examine
the
printed
output
and
adjust
the
character
/index
control
until
the
proper
setting
is
obtained.
If
clipping
or
ghosting
still
occurs,
readjust
the
control
until
the
best
print
quality
is
obtained.
3.
To
perform
a
hammer
timing
adjustment:
Whenever
any
characters
in
a
line
of
printed
output
are
misaligned,
an
elec-
tronic
adjustment
of
the
print
hammer
timing
for
the
misaligned
print
posi-
tions
(columns)
is
necessary.
The
potentiometers
for
controlling
the
print
hammer
timing
are
numbered
to
correspond
to
the
printed
columns.
WARNING:
It
is
imperative
that
the
following
precautions
be
observed
when
a.
b.
performing
a
print
hammer
timing
adjustment:
(l)
Use
only
the
special,
non-conductive
tool
supplied;
(2)
Do
not
bear
down
or
use
force
on
the
circuit
cards
or
the
card
guides;
(3)
Keep
fingers
off
the
circuit
cards;
and
(4)
Do
not
drop
any
foreign
object
into
the
chassis
or
down
between
the
circuit
cards.
Determine
which
print
columns
are
misaligned
by
checking
the
column
scale.
While
printing,
adjust
the
appropriate
potentiometer
in
the
printer
electronics
cabinet
until
the
character
is
properly
aligned
when
printed.
If
the
character
is
being
printed
above
the
line,
turn
the
potentiometer
adjustment
clockwise.
If
the
character
is
being
printed
below
the
line,
turn
the
potentiometer
adjustment
counterclockwise.
6-17
