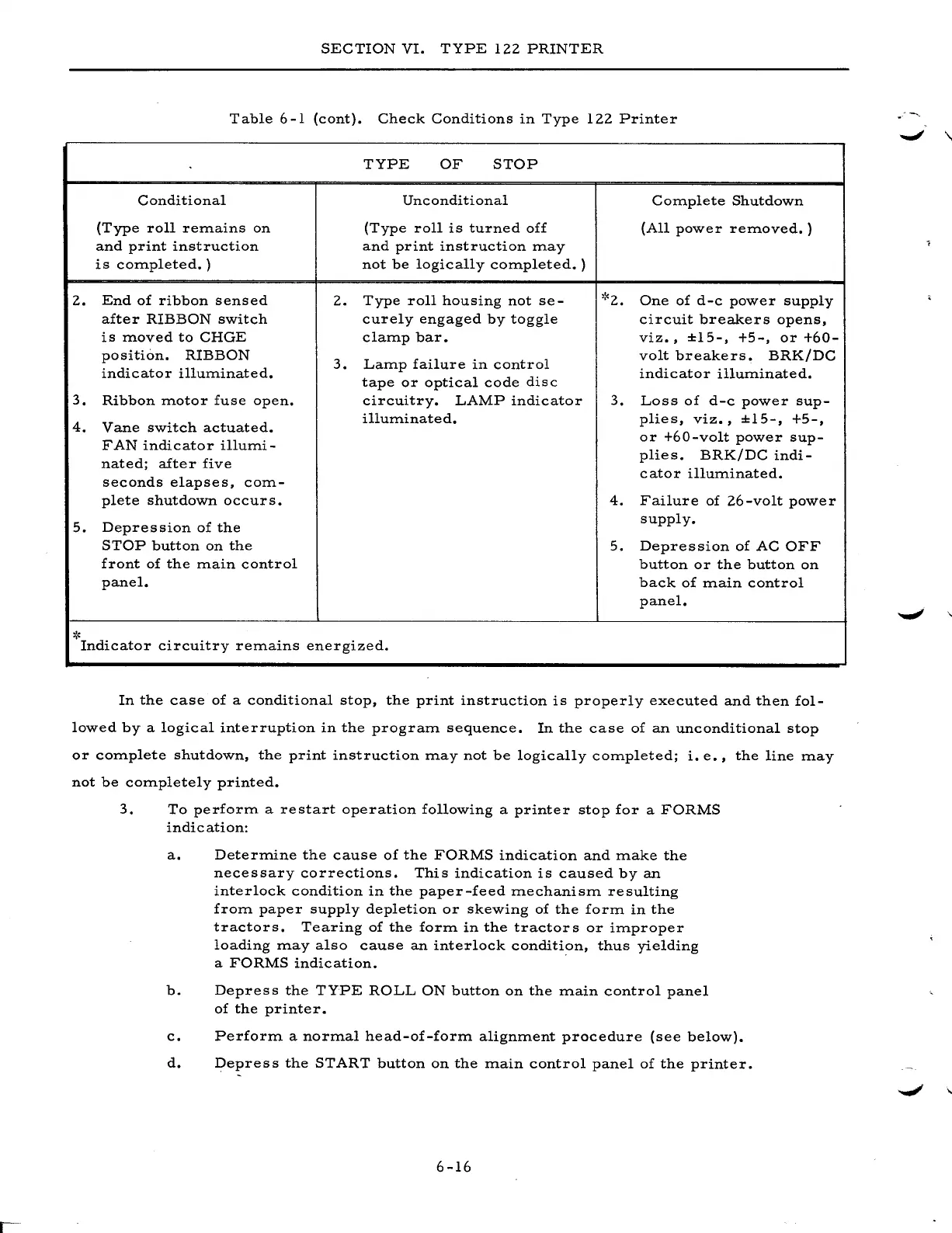

SECTION
VI.
TYPE
122
PRINTER
Table
6-1
(cont).
Check
Conditions
in
Type
122
Printer
Conditional
(Type
roll
remains
on
and
print
instruction
is
completed.
)
TYPE
OF
STOP
Unconditional
(Type
roll
is
turned
off
and
print
instruction
may
not
be
logically
completed.
)
Complete
Shutdown
(All
power
removed.
)
2.
End
of
ribbon
sensed
after
RIBBON
switch
is
moved
to
CHGE
position.
RIBBON
indicator
illuminated.
2.
Type
roll
housing
not
se-
curely
engaged
by
toggle
clamp
bar.
3.
Lamp
failure
in
control
tape
or
optical
code
disc
circuitry.
LAMP
indicator
illuminated.
'~2.
One
of
d-c
power
supply
circuit
breakers
opens,
viz.,
±15-,
+5-,
or
+60-
volt
breakers.
BRK/DC
indicator
illuminated.
3.
Ribbon
motor
fuse
open.
3.
Loss
of
d-c
power
sup-
plies,
viz.,
±15-,
+5-,
or
+60-volt
power
sup-
plies.
BRK/DC
indi-
cator
illuminated.
4.
Vane
switch
actuated.
F
AN
indicator
illumi-
nated;
after
five
seconds
elapses,
com-
plete
shutdown
occurs.
5.
Depression
of
the
STOP
button
on
the
4.
Failure
of
26-volt
power
supply.
5.
Depression
of
AC
OFF
button
or
the
button
on
back
of
main
control
panel.
*
front
of
the
main
control
panel.
Indicator
circuitry
remains
energized.
In
the
case
of
a
conditional
stop,
the
print
instruction
is
properly
executed
and
then
fol-
lowed
by
a
logical
interruption
in
the
program
sequence.
In
the
case
of
an
unconditional
stop
or
complete
shutdown,
the
print
instruction
may
not
be
logically
completed;
i.
e.,
the
line
may
not
be
completely
printed.
3.
To
perform
a
restart
operation
following
a
printer
stop
for
a
FORMS
indication:
a.
Determine
the
cause
of
the
FORMS
indication
and
make
the
necessary
corrections.
This
indication
is
caused
by
an
interlock
condition
in
the
paper-feed
mechanism
resulting
from
paper
supply
depletion
or
skewing
of
the
form
in
the
tractors.
Tearing
of
the
form
in
the
tractors
or
improper
loading
may
also
cause
an
interlock
condition,
thus
yielding
a
FORMS
indication.
b.
Depress
the
TYPE
ROLL
ON
button
on
the
ITlain
control
panel
of
the
printer.
c.
Perform
a
normal
head-of-form
alignment
procedure
(see
below).
d.
Depress
the
START
button
on
the
main
control
panel
of
the
printer.
6-16
