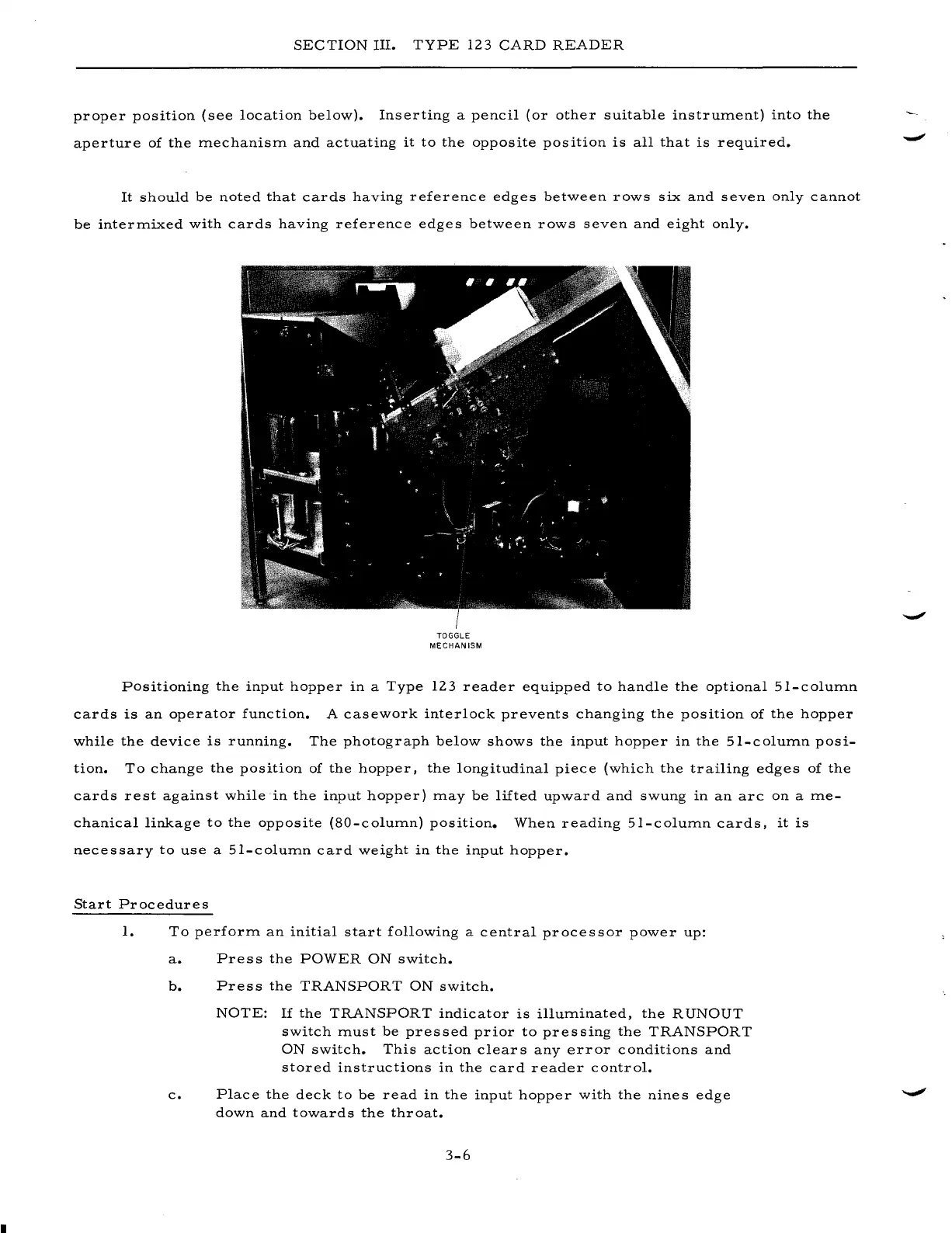

SECTION III. TYPE 123 CARD READER
proper position (see location below). Inserting a pencil (or other suitable instrument) into the
aperture of the mechanism and actuating it to the opposite position is all that is required.
It should be noted that cards having reference edges between rows six and seven only cannot
be intermixed with cards having reference edges between rows seven and eight only.
TOGGLE
MECHANISM
Positioning the input hopper in a Type 123 reader equipped to handle the optional 51-column
cards is an operator function. A casework interlock prevents changing the position of the hopper
while the device is running. The photograph below shows the input hopper in the 51-column posi-
tion. To change the position of the hopper, the longitudinal piece (which the trailing edges of the
cards rest against while in the input hopper) may be lifted upward and swung in an arc on a me-
chanical linkage to the opposite (80-column) position. When reading 51-column cards, it is
necessary to use a 51-column card weight in the input hopper.
Start Procedures
1. To perform an initial start following a central processor power up:
a. Press the POWER ON switch.
b. Press the TRANSPORT ON switch.
NOTE: If the TRANSPORT indicator is illuminated, the RUNOUT
switch must be pressed prior to pressing the TRANSPORT
ON switch. This action clear s any error conditions and
stored instructions in the card reader control.
c. Place the deck to be read in the input hopper with the nines edge
down and towards the throat.
3-6
