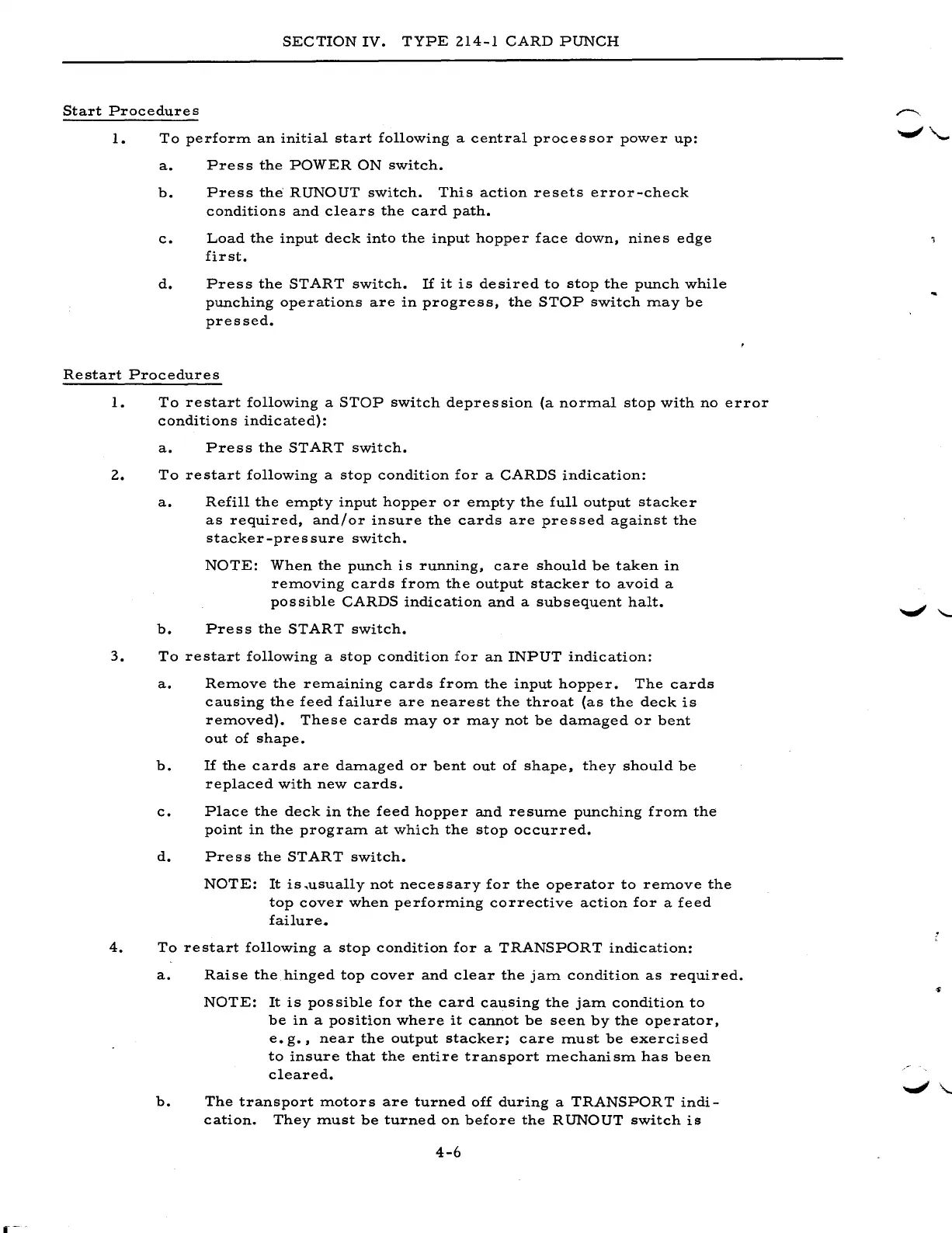

Page #42 background image
SECTION
IV.
TYPE
214-1
CARD
PUNCH
Start
Procedures
~
1.
To
perform
an
initial
start
following
a
central
processor
power
up:
a.
Press
the
POWER
ON
switch.
b.
Press
the
RUNOUT
switch.
This
action
resets
error-check
conditions
and
clears
the
card
path.
c.
Load
the
input
deck
into
the
input
hopper
face
down,
nines
edge
fir
st.
d.
Press
the
START
switch.
If
it
is
desired
to
stop
the
punch
while
punching
operations
are
in
progress,
the
STOP
switch
may
be
pressed.
Restart
Procedures
1.
To
restart
following
a
STOP
switch
depression
(a
normal
stop
with
no
error
conditions
indicated):
a.
Press
the
START
switch.
2.
To
restart
following
a
stop
condition
for
a
CARDS
indication:
a.
Refill
the
empty
input
hopper
or
empty
the
full
output
stacker
as
required,
and/or
insure
the
cards
are
pressed
against
the
stacker
-pres
sure
switch.
NOTE:
When
the
punch
is
running,
care
should
be
taken
in
removing
cards
from
the
output
stacker
to
avoid
a
possible
CARDS
indication
and
a
subsequent
halt.
b.
Press
the
START
switch.
3.
To
restart
following
a
stop
condition
for
an
INPUT
indication:
a.
Remove
the
remaining
cards
from
the
input
hopper.
The
cards
causing
the
feed
failure
are
nearest
the
throat
(as
the
deck
is
removed).
These
cards
mayor
may
not
be
damaged
or
bent
out
of
shape.
b.
If
the
cards
are
damaged
or
bent
out
of
shape,
they
should
be
replaced
with
new
cards.
c.
Place
the
deck
in
the
feed
hopper
and
resume
punching
from
the
point
in
the
program
at
which
the
stop
occurred.
d.
Press
the
START
switch.
NOTE:
It
is.usually
not
necessary
for
the
operator
to
remove
the
top
cover
when
performing
corrective
action
for
a
feed
failure.
4.
To
restart
following
a
stop
condition
for
a
TRANSPORT
indication:
a.
Raise
the
hinged
top
cover
and
clear
the
jam
condition
as
required.
NOTE:
It
is
possible
for
the
card
causing
the
jam
condition
to
be
in
a
position
where
it
cannot
be
seen
by
the
operator,
e.
g.,
near
the
output
stacker;
care
must
be
exercised
to
insure
that
the
entire
transport
mechani
sm
has
been
cleared.
b.
The
transport
motors
are
turned
off
during
a
TRANSPORT
indi-
cation.
They
must
be
turned
on
before
the
RUNOUT
switch
is
4-6
