SECTION
VI.
TYPE
122
PRINTER
Paper
Tension
Adjustment
-
An
adjusting
knob
(see
Figure
6
-1,
B)
for
control
of
paper
tension
is
accessible
on
the
lower
left
side
of
the
printer
mechanism.
Proper
adjustment
of
this
control
prevents
tearing
of
the
form
and
assures
smooth
movement
of
the
form
through
the
paper
feed
mechanism.
Tractor
Position
Adjustment
- A
single
adjustment
knob
on
the
right-hand
side
of
the
printing
mechanism
(see
Figure
6-1,
C)
may
be
used
to
position
all
four
tractors
at
one
time
while
the
machine
is
either
running
or
stopped.
The
two
right-hand
tractors
are
individually
adjustable
and
have
vernier
controls
for
adjusting
the
side
tension
of
the
paper.
A
side-
tension
adjustment
can
also
be
performed
while
the
printer
is
either
running
or
stopped.
A
o
1
B
A-Head-of-Form
Adjustment
B-Paper
Tension
Adjus
tment
C-Tractor
Position
Adjustment
G
D -
Charac
te
r /
Index
Adju
s
tment
E-Form
Thickness
Adjustment
F-Type
Roll
F
E
c
H
G-Tractor
Pin
Feeds
H-Auxiliary
Control
Panel
I-Ribbon
Feed
Unit

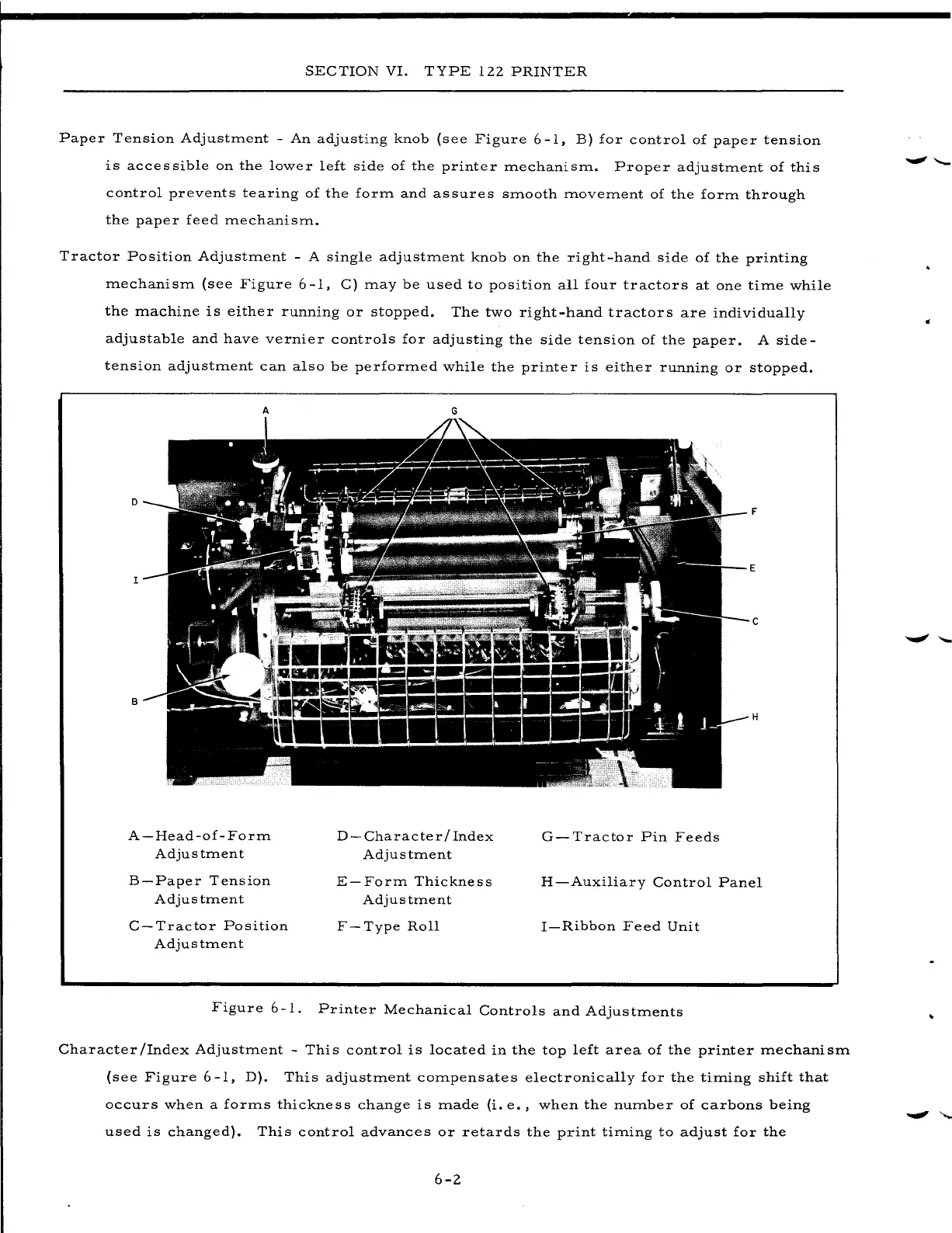

Figure
6-1.
Printer
Mechanical
Controls
and
Adjustments
Character
/Index
Adjustment
-
This
control
is
located
in
the
top
left
area
of
the
printer
mechanism
(see
Figure
6-1,
D).
This
adjustment
compensates
electronically
for
the
timing
shift
that
occurs
when
a
forms
thickness
change
is
made
(i.
e.,
when
the
number
of
carbons
being
used
is
changed).
This
control
advances
or
retards
the
print
timing
to
adjust
for
the
6-2
